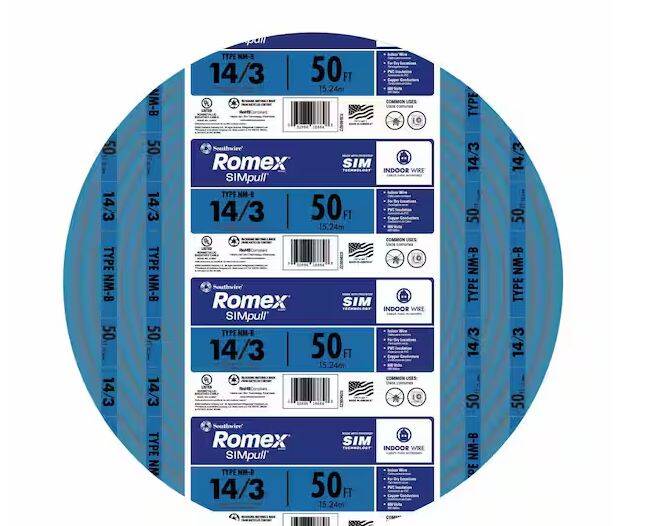

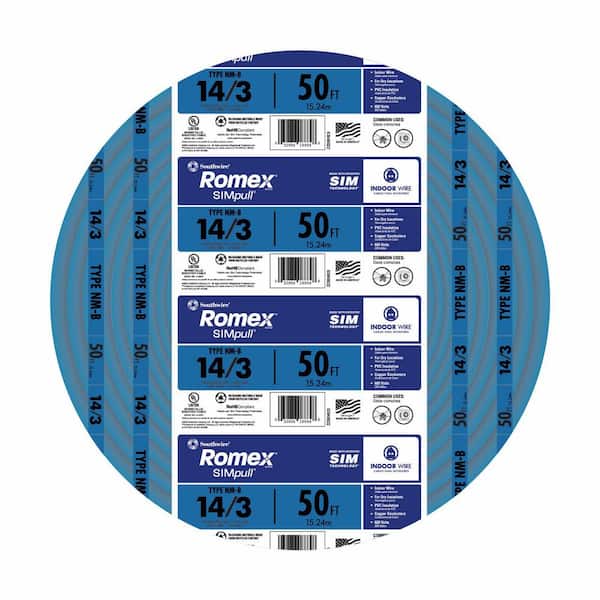

Southwire 63946922 Romex SIMpull Type NM-B Cable, with Ground 600 Volt 50 feet Coil

Product Description

The SOUTHWIRE 63946922 Romex SIMpull Type NM-B Cable is a nonmetallic-sheathed cable designed for both exposed and concealed work in normally dry locations. Rated for 600 volts, it features copper conductors and a SIMpull jacket for easier installation. This 14 AWG, 3-conductor cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads, and can operate at temperatures up to 90°C.

• Nonmetallic-sheathed cable with 600 Volt rating and copper conductors.
• SIMpull Jacket designed for easier pulling and installation.
• Suitable for exposed and concealed work in normally dry locations, primarily for residential branch circuits.

Product Highlights

600-volt NM-B cable with SIMpull technology for residential and commercial branch circuit applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 63946922
• Country of Origin: USA

Technical Specifications

• Length: 50 feet
• Number of Conductors: 3
• Wire Type: NM-B
• AWG Gauge: 14
• Construction Type: 14 AWG 3C SOL
• Conductor Color Code: Black/White/Red
• Packaging Type: 50 ft Coil
• Diameter Over Conductor (in): 0.064
• Insulation Thickness (mils): 20
• Ground Size: 1x14 AWG
• Jacket Thickness (mils): 25
• Approximate Outer Diameter (in): 0.478 x 0.176
• Copper Weight (lbs/1000ft): 49
• Approximate Weight (lbs/1000ft): 81
• Conductor Construction: Bare copper per ASTM B3; #14 AWG - #10 AWG solid; #8 AWG - #2 AWG Class B compressed stranded per ASTM B8
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Ground Construction: Solid soft drawn bare copper with kraft paper wrap
• Binder Material: Kraft paper
• Jacket Material: Polyvinyl Chloride (PVC) utilizing SIMpull Technology
• Conductor Material: Copper
• NRTL Listing Certification: No
• Application: Indoor
• Ground Wire: Yes
• Voltage Rating: 600 Volts
• Maximum Operating Temperature: 90°C
• Certifications and Standards: UL Standard 719, UL 83 (Conductor Construction), ASTM B-3, ASTM B-8, Federal Specification A-A-59544, National Electrical Code NFPA 70, REACH/RoHS Compliant (RoHS-2), NOM-063-SCFI Electrical Products – Conductors – Safety Requirements
