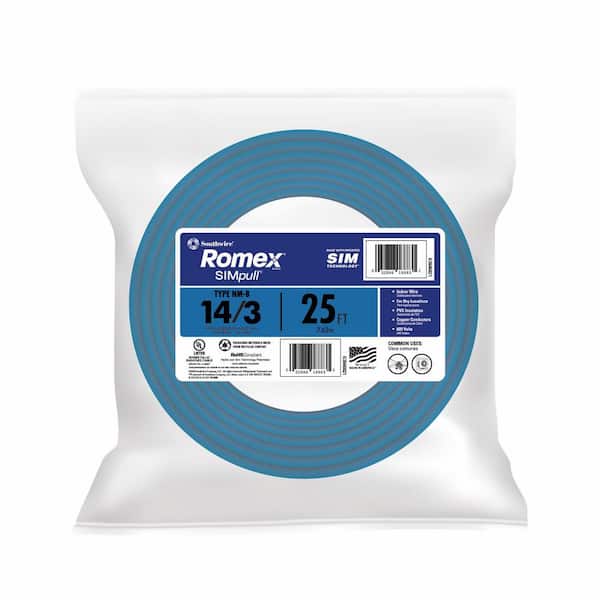

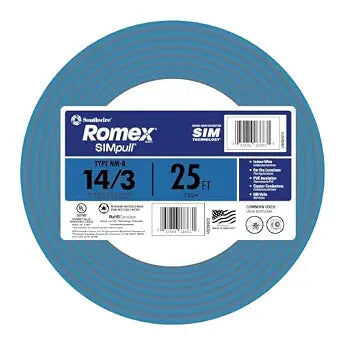

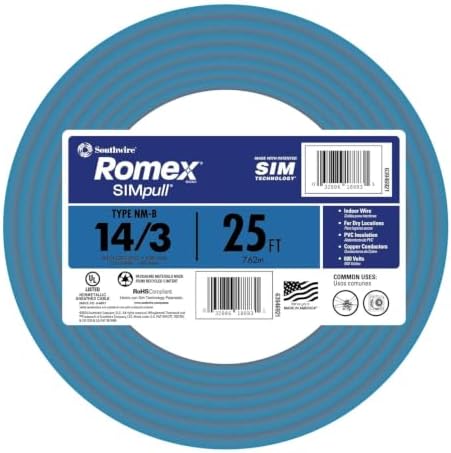

Southwire 63946921 Romex SIMpull Copper Type NM-B Cable 600 Volts 14-3 CU NM-B With Ground 25 FT

Product Description

The SOUTHWIRE 63946921 Romex Brand SIMpull Copper Type NM-B Cable is a nonmetallic-sheathed cable for residential and commercial wiring. This 14 AWG, 3-conductor cable with ground is rated for 600 volts and features a 90°C individual conductor insulation rating, with ampacity limited to 60°C conductors. Its PVC jacket with SIMpull Technology facilitates easier installation in dry locations. It is suitable for branch circuits to outlets, switches, and other loads, and can be used in exposed or concealed work.

• May be used for both exposed and concealed work in dry locations
• Ampacity limited to that for 60°C conductors as specified in the National Electrical Code® (NEC)
• Individual conductor insulation is rated 90°C as required by the NEC and by the UL product standard (UL 719) for terminations in lighting fixtures

Product Highlights

Nonmetallic-sheathed cable with SIMpull Technology for residential and commercial branch circuits.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 63946921
• Country of Origin: USA

Technical Specifications

• Specification Number: 10028
• Jacket Color: BLUE
• Packaging Type: 25 FT COIL
• Voltage Rating: 600 volts
• Conductor Temperature Rating: 60°C
• Individual Conductor Insulation Rating: 90°C
• Conductor Material and Type: Bare copper per ASTM B3. Sizes #14 AWG - #10 AWG are solid. Sizes #8 AWG - #2 AWG are Class B compressed stranded per ASTM B8
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Conductor Color Code: 3/C: Black, Red, White
• Ground Conductor Construction: Solid soft drawn bare copper with kraft paper wrap
• Binder Material: Kraft paper
• Jacket Material: Polyvinyl Chloride (PVC) jacket utilizing SIMpull® Technology
• Conductor Gauge: 14 AWG
• Number of Conductors: 3
• Conductor Stranding: Solid
• Diameter Over Conductor (in): 0.064
• Insulation Thickness (mils): 20
• Ground Conductor Gauge: 1x14
• Jacket Thickness (mils): 25
• Approximate Outer Diameter (in): 0.478 x 0.176
• Copper Weight (lbs/1000ft): 49
• Approximate Weight (lbs/1000ft): 81
• Certifications and Standards: ASTM B3 Soft or Annealed Copper Wire, ASTM B8 Concentric-Lay-Stranded Copper Conductors, UL 719 Nonmetallic-Sheathed Cables, RoHS-2 (European Directive 2011/65/EU), Federal Specification A-A-59544, NOM-063-SCFI Electrical Products – Conductors – Safety Requirements
• Length: 25 FT
• Cable Type: NM-B
• Ground Wire Included: Yes
