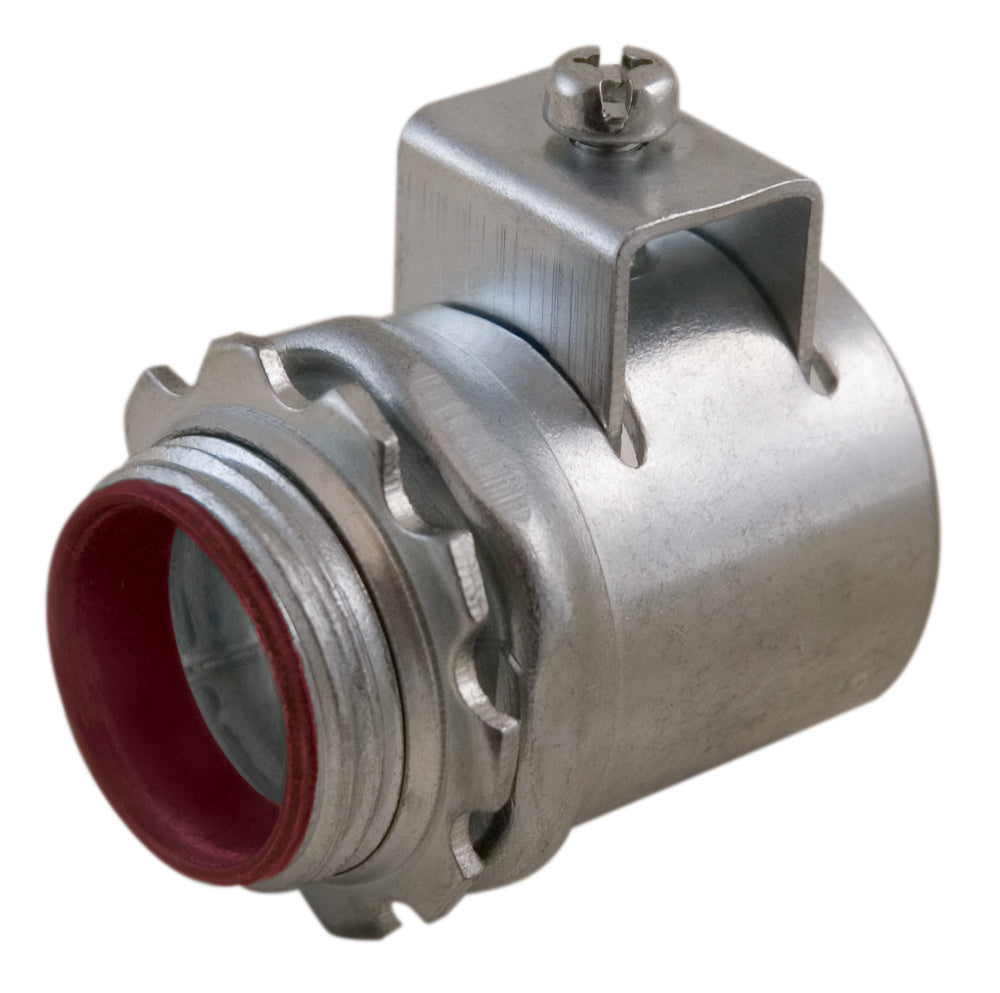

Southwire 635TBS Topaz Straight Top-Bite Set Screw Connector (1-1/2 in)

Product Description

Southwire 635TBS is a Topaz straight top-bite set screw connector with an insulated throat for joining flexible metal conduit or armored cable to boxes or enclosures. It features dual gripping saddle clamps that ride on the screw, a tri-combo head screw, and one-piece zinc-plated high-strength steel construction. The connector uses an NPSM male thread connection and accepts cable openings from 1.562 to 1.75 in for 1-1/2 in trade and knockout sizes.

• Dual gripping saddle clamps that ride on the screw and tri-combo head screw for ease of installation
• One-piece zinc-plated high-strength steel construction; includes steel locknut and steel clamps
• NPSM male thread connection; accepts cable openings 1.562 to 1.75 in; dimensions 2.43 in L x 0.625 in W x 2.5 in H

Product Highlights

Insulated throat straight top-bite connector for flex/AC/MC cable to box or enclosure; 1-1/2 in trade and knockout; cULus File No. E18176

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 635TBS

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 635TBS
• Model Name: Topaz
• Product Type: Straight Top-Bite Set Screw Connector
• Material: Steel
• Finish: Zinc plated
• Trade Size: 1-1/2 in
• Knockout Size: 1-1/2 in
• Cable Openings: 1.562 to 1.75 in
• Connection Type: Male thread
• Thread Type: NPSM male thread
• Dimensions: 2.43 in L x 0.625 in W x 2.5 in H
• Application: For joining flexible metal conduit or armored cable to boxes or enclosures
• Standard Approval: cULus File No. E18176
• Features: Dual gripping saddle clamps; saddle clamps ride on screw; tri-combo head screw; insulated throat; one-piece construction; includes steel locknut and steel clamps
