Product Description

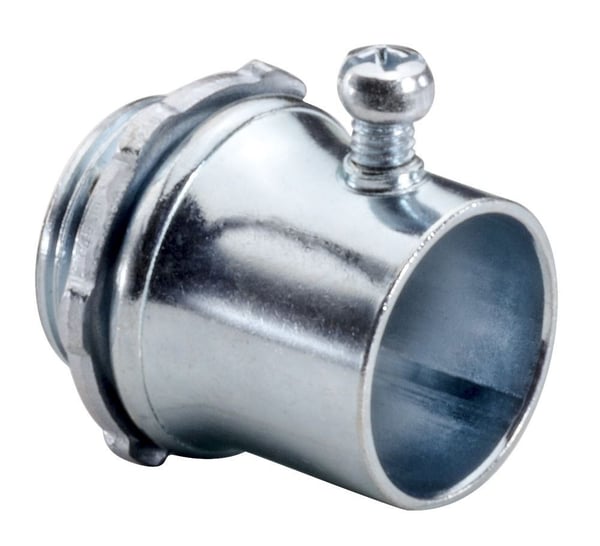

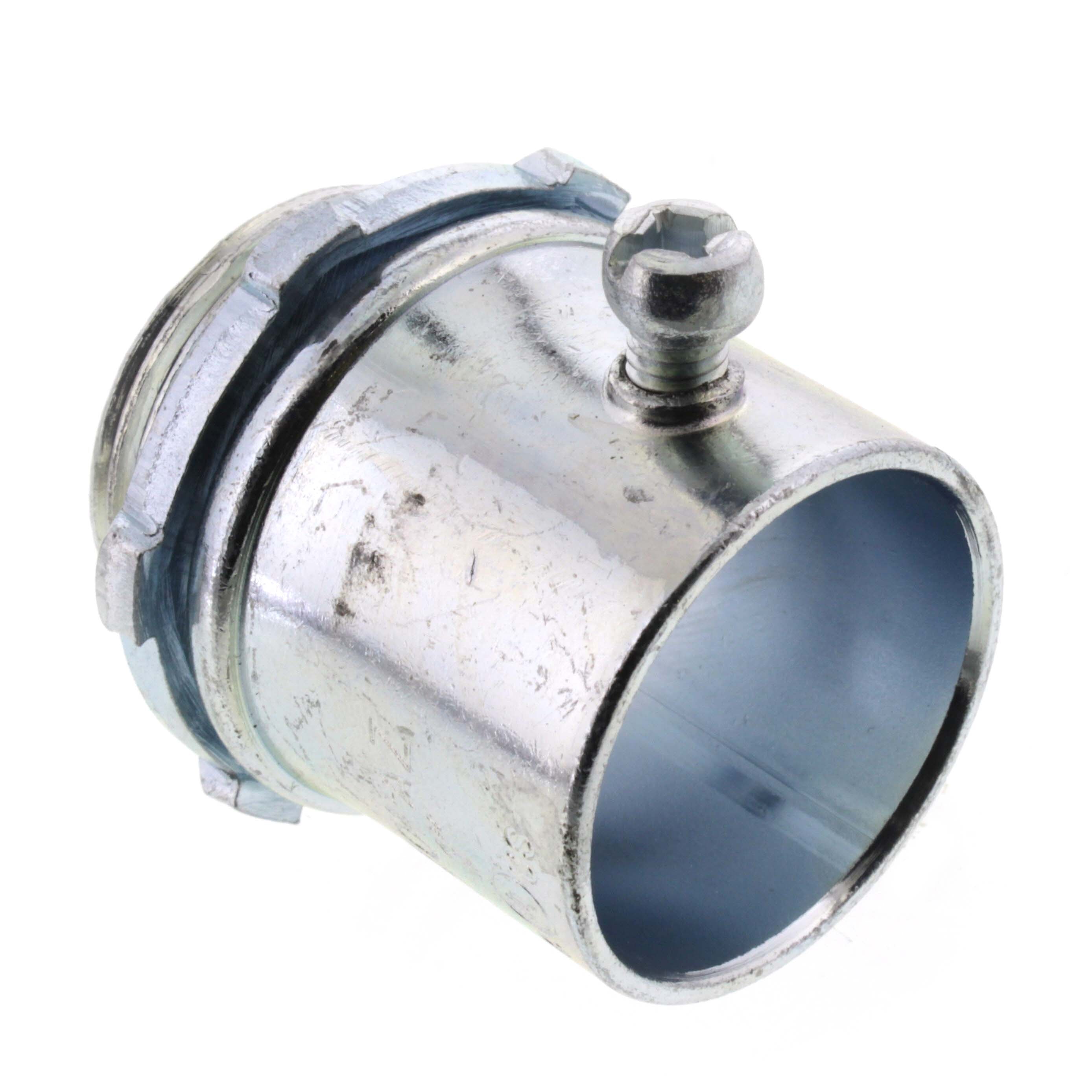

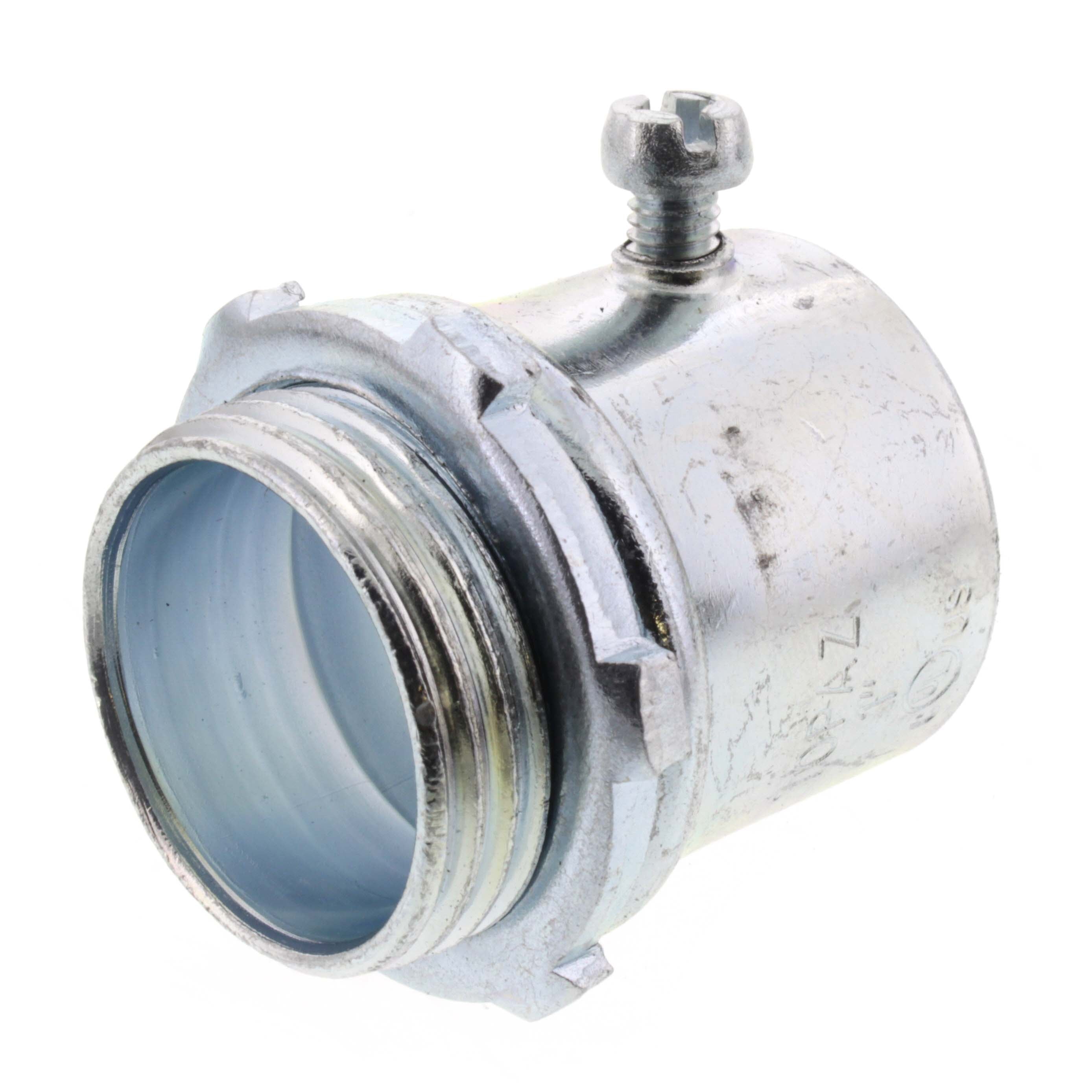

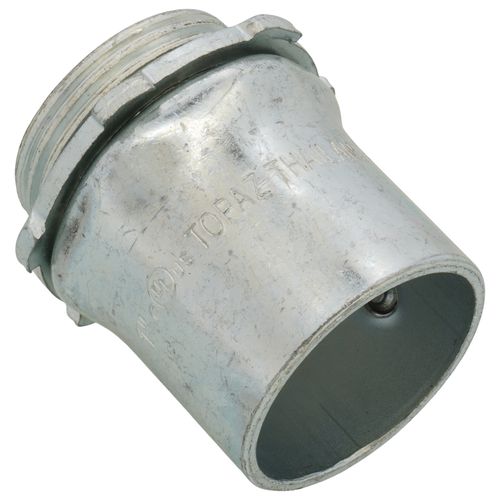

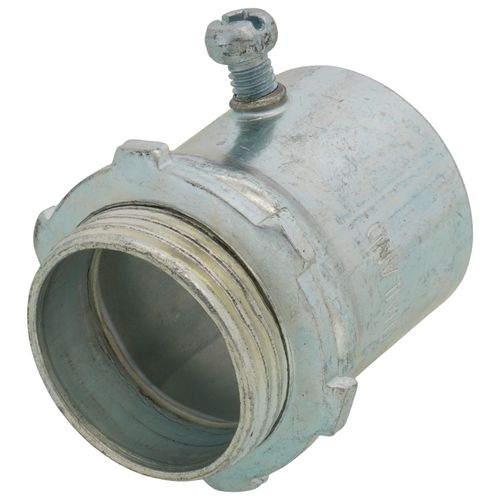

The SOUTHWIRE 633S is a 1 inch steel set screw type connector designed to securely join EMT conduit to an electrical box or enclosure. This zinc-plated steel connector ensures a concrete-tight connection when taped, providing durability and reliable performance for electrical installations. It features a threaded x set-screw connection and includes a steel zinc-plated rigid locknut for secure fastening.
- UL Standard 514B and NEMA FB-1 compliant for electrical safety.
- Concrete tight when taped, featuring a durable zinc-plated steel body.
- Includes a steel zinc-plated rigid locknut for secure and reliable installation.
Product Highlights
Durable 1 inch steel set screw connector for EMT conduit, ensuring concrete-tight connections.
Product Information
Standard Information
-
Brand: SOUTHWIRE
-
Manufacturer Part Number: 633S
-
Country of Origin: China
Technical Specifications
-
Trade Size: 1 inch
-
Material: Steel
-
UPC: 751338230200
-
Connection Type: Screw
-
Brand: Southwire
-
Conduit Type: Electrical Metallic Tubing (EMT)
-
Accessory Type: Conduit Connectors
-
SKU: SOUTHWIRE-633S
-
Manufacturer Part Number: 633S
-
Type: Concrete Tight
-
Application: For joining EMT to box or enclosure
-
Standards and Approvals: UL 514B/E148720, CSA Certified, US Federal Specification A-A-50553, NEMA/ANSI FB-1, Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
-
Catalog ID: SWI633S
-
Diameter: 1.563 in
-
Finish: Zinc Plated
