Product Description

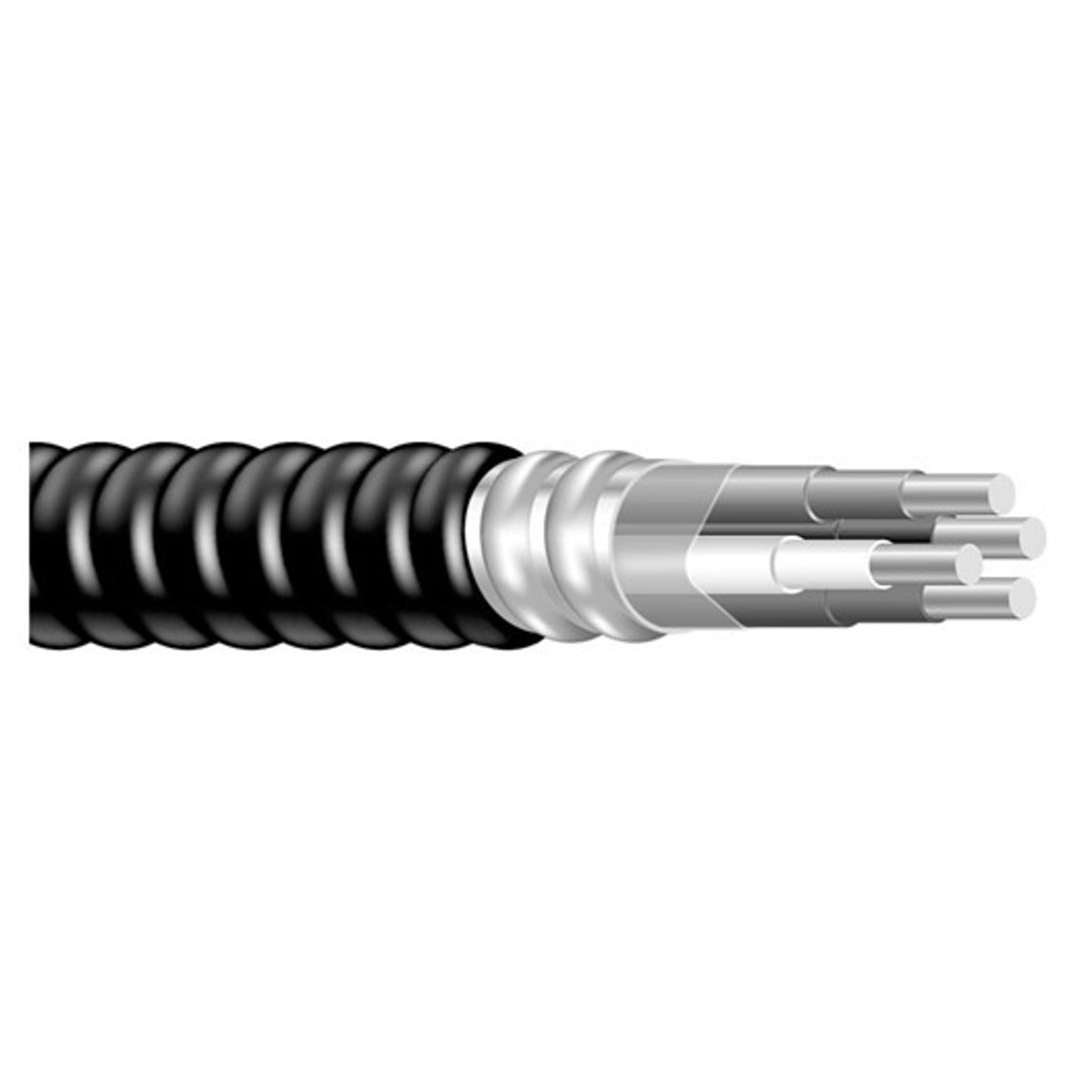

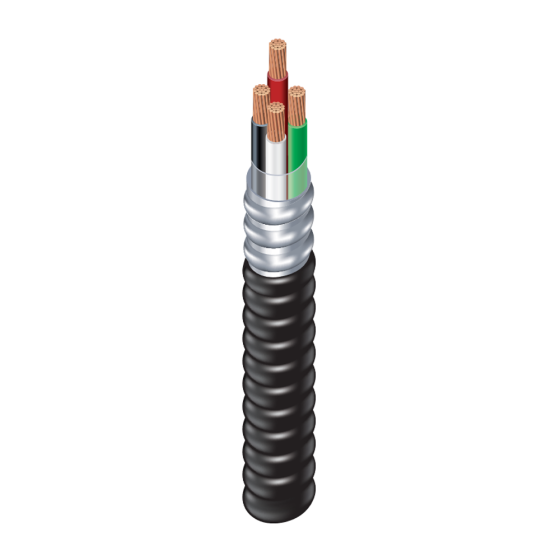

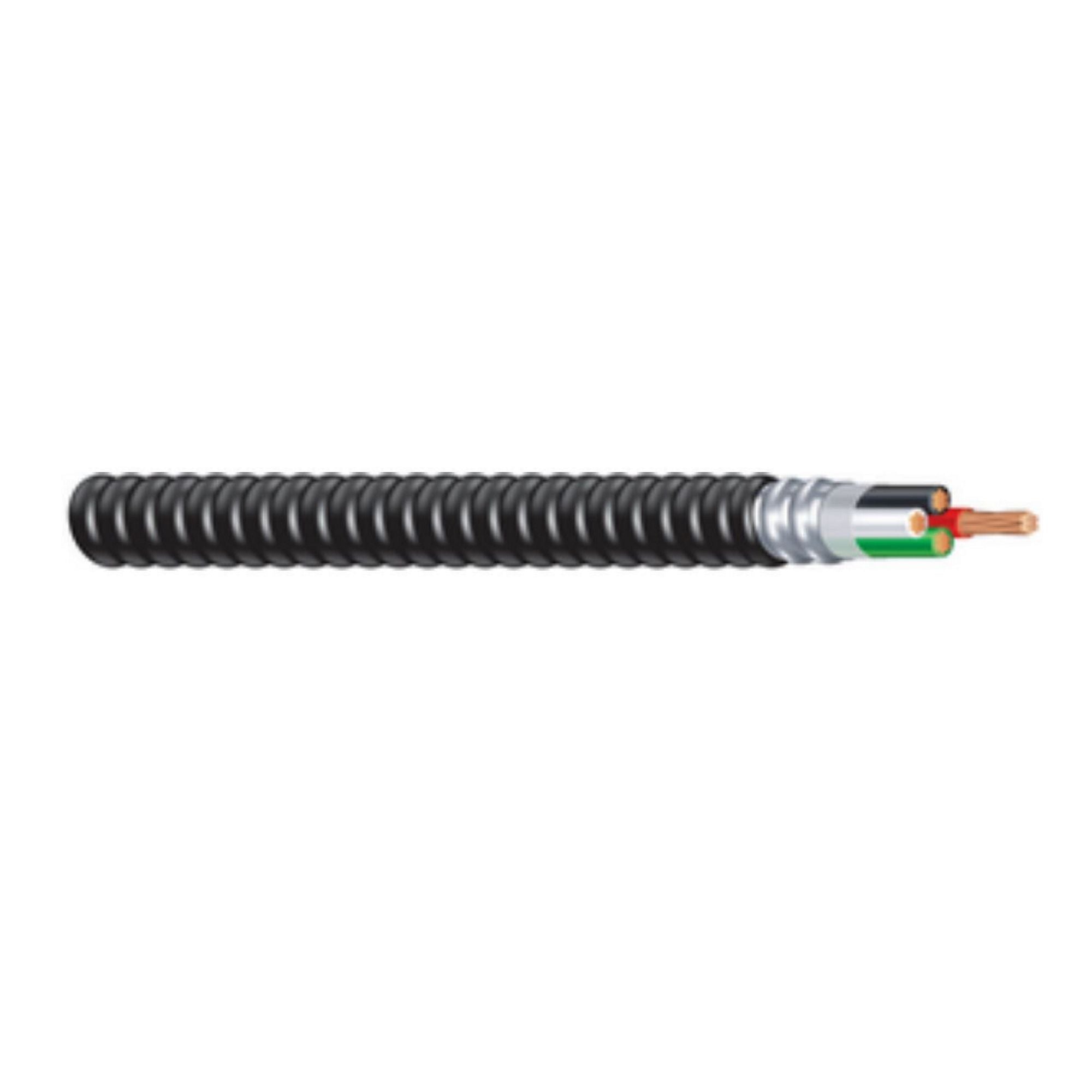

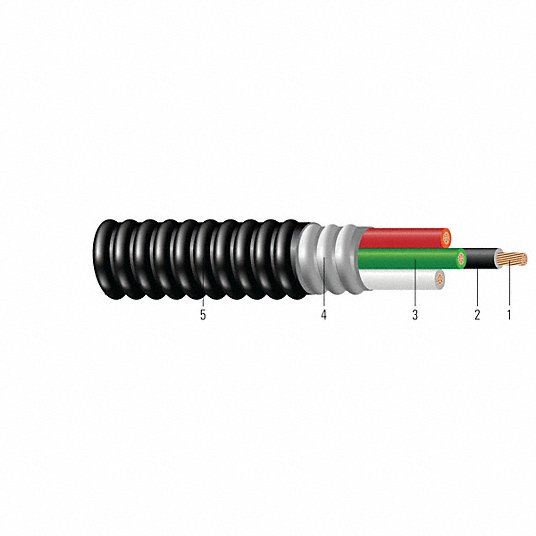

The SOUTHWIRE 58340803 EZ-IN Mini-Split Jacketed Type MC Cable is designed for electrical installations where it may be exposed to harsh environments like cinder fills, strong chlorides, caustic alkalis, or chlorine vapors. This 14 AWG, 4-conductor cable is rated for 600V and features aluminum interlocked armor and a PVC jacket, making it suitable for both concealed and exposed installations, including wet locations per NEC 330.10(A)(11). It can be installed without conduit for HVAC applications.
- Suitable for use where exposed to cinder fills, strong chlorides, caustic alkalis, or vapors of chlorine or of hydrochloric acids.
- Installed without the use of conduit.
- Type THHN/THWN/TFN rated 90°C Dry/ 75°C Wet.
Product Highlights
Ideal for indoor/outdoor mini-split installations, offering easy conduit-free setup and durable aluminum armor.
Product Information
Standard Information
-
Brand: SOUTHWIRE
-
Manufacturer Part Number: 58340803
-
Country of Origin: USA
Technical Specifications
-
MPN: 58340803
-
Brand: Southwire
-
Country Of Origin: Mexico
-
Conductor Material: Stranded, bare copper Class B, Soft Drawn Annealed Bare Copper per ASTM B3 and B8
-
Wire Gauge: 14 AWG
-
Number Of Conductors: 4
-
Item Type: EZIN
-
Overall Length: 50 ft
-
Nominal Outside Diameter: 0.585 in
-
Maximum Voltage Rating: 600V
-
Cable Trade Designation: TFN; THHN; THWN
-
Certifications: CUL Listed, UL Listed
-
Resistance Properties: UV Resistant, Sunlight Resistant
-
Wire Type: Mini Split
-

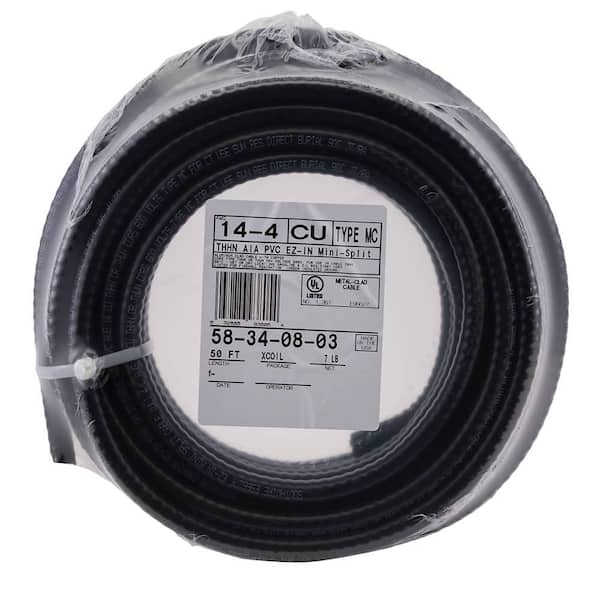

Packaging Type: Coil
-
Diameter Over Conductor: 0.070 in
-
Number of Strands: 7
-
Insulation Thickness: 20 mils
-
Diameter Over Armor: 0.479 in
-
Jacket Thickness: 50 mils
-
Weight per 1000 ft: 166 lbs
-
Insulation Material: Polyvinyl Chloride with Nylon Sheath
-
Ground Material: Green insulated ground. Polyvinyl Chloride with Nylon Sheath
-
Armor Material: Aluminum Interlocked Armor
-
Jacket Material: Polyvinyl Chloride (PVC) sunlight resistant and corrosion resistant
-
Standards: UL Online Product Guide Info - Metal-Clad Cable (PJAZ), Federal Specification A-A59544 (formerly J-C-30B), NFPA 70 (National Electrical Code), Article 330, ASTM B3 Soft or Annealed Copper Wire, ASTM B8 Concentric-Lay-Stranded Copper Conductors, UL 83 Thermoplastic Insulated Wires and Cables, UL 1569 Metal-Clad Cables, UL 1685 FT4 Vertical-Tray Fire Propagation and Smoke Release Test, IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test, RoHS-3 Complies with European Directive 2015/863, CUL Listed, UL Listed, NEC, UL 1685 FT
-
Series: EZ-IN™ Mini-Split
-
Fire Resistance Rating: Not Rated
-
Number of Pairs: 0
-
Conductor Design: Stranded
-
Shielded: Unshielded
-
Maximum Dry Temperature Rating: 194 °F
-
Maximum Wet Temperature Rating: 167 °F
-
Maximum Current: 25 A
-
Minimum Bend Radius: 4 in
-
Direct Burial Rated: Yes
-
Operating Temperature Range: 90°C Dry / 75°C Wet
