Southwire 58340802 14/4 Thhn Aia Pvc Ez-In Mini-Split Wire 600V 250 feet Roll

SOUTHWIRE
Brand: SOUTHWIRE
SKU: 58340802
Availability: In Stock

Ships same day if ordered by 12 pm

$636.41
$636.41
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

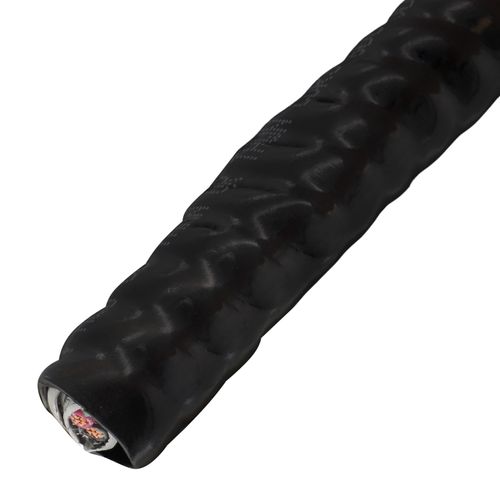

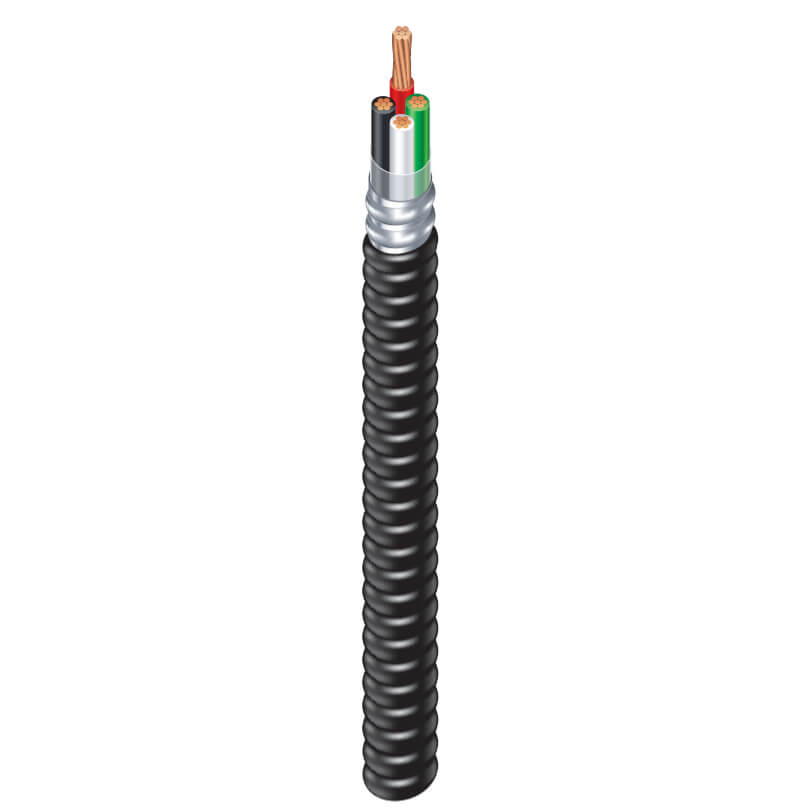

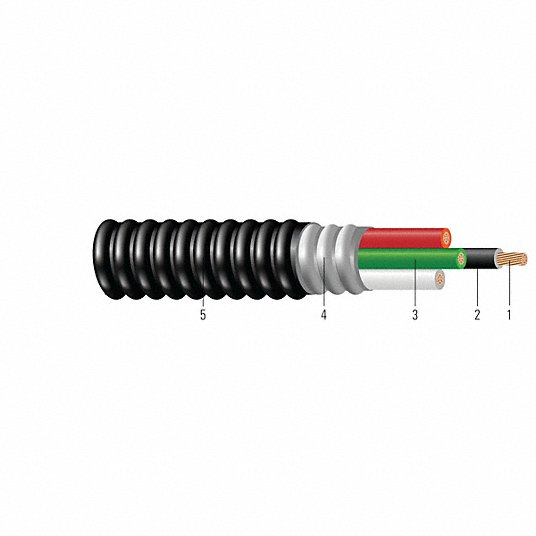

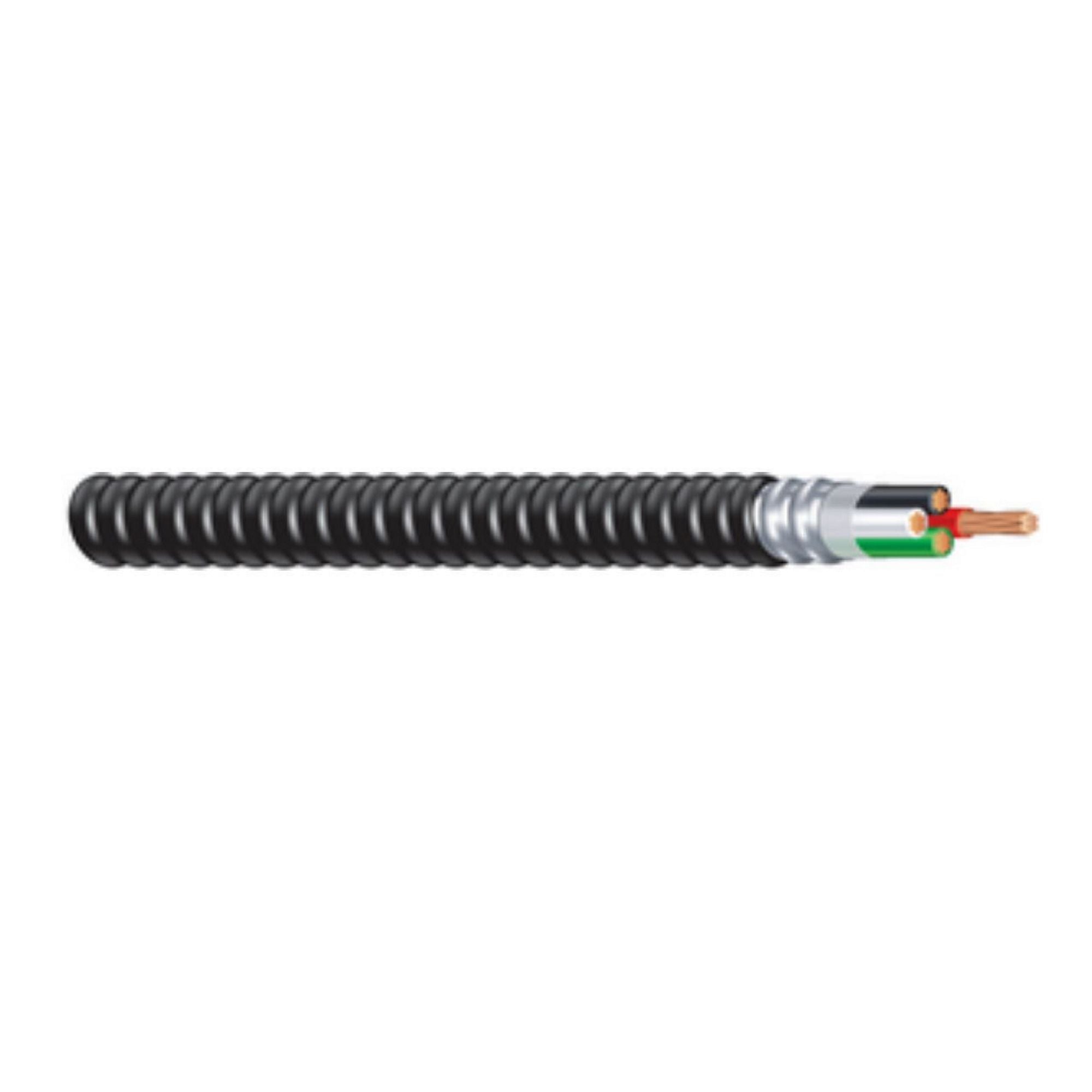

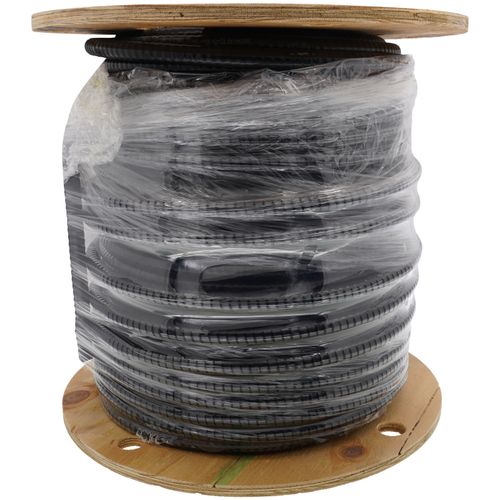

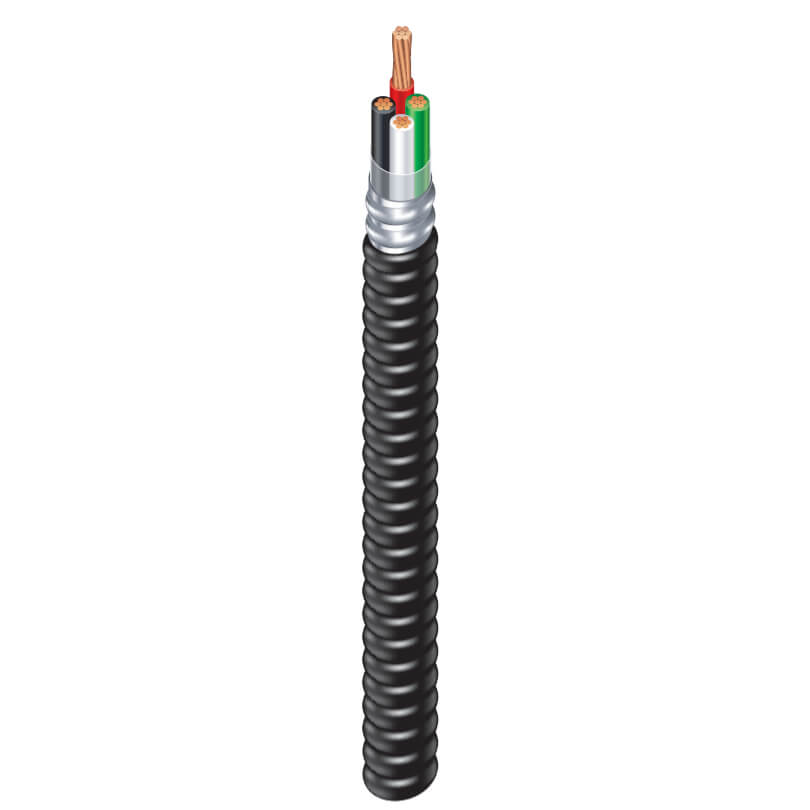

The Southwire 58340802 is a 14/4 THHN AIA PVC EZ-IN Mini-Split Wire, designed for 600V applications and supplied on a 250' roll. This cable is suitable for installing without conduit in indoor and outdoor wet locations.

  • THHN cable type
  • 600V voltage rating
  • Suitable for wet locations

Product Highlights

This mini-split cable is ideal for connecting outdoor compressors and indoor evaporator units in HVAC systems.

Product Information

Standard Information

  • Brand: SOUTHWIRE
  • Manufacturer Part Number: 58340802
  • Country of Origin: USA
Technical Specifications
Brand
Southwire
Cable Type
THHN
Coil Length
250'
CUL Listed
Yes
EAN
0032886923326
Insulation Type
Polyvinyl Chloride (PVC)
Jacket Material
Nylon
Prop 65
No
UL Listed
Yes
UOM
RL
UPC
032886923326
UV Resistant
Yes
Wire Gauge
14 AWG
Wire Type
Mini Split
Country of Origin
USA
Manufacturer Part Number
58340802
RoHS Flag
Yes
Energy Star Flag
No
UNSPSC
26121524
Manufacturer Name
Southwire
Sub Brand
EZ-IN
Conductor Material
Copper
Item Name
THHN/THWN Mini-Split Cable
Number of Conductors
4
Outside Diameter
553
Stranded/Solid
Stranded
Temperature Rating
75 deg C Wet, 90 deg C Dry
Packing Type
Spool
Voltage Rating
600 Volt
Standards
NEC/NFPA 70, Conductors Per UL Standard 83, Type THHN and THWN, UL Standard 1569 for Type MC, Meets the material content restrictions of the RoHS-2 Directive
Cond. Size
14 AWG
Conductor Number
4
Cond. Strands
7
Series
EZ-IN Mini-Split
Cable Trade Designation
TFN; THHN; THWN
Fire Resistance Rating
Not Rated
Maximum Voltage Rating
600 V
Overall Length
250 ft
Packaging
Reel
Jacket Color
Black
Conductor Size
14 AWG
Conductor Insulation Color
Black; Green; Red; White
Conductor Insulation Material
PVC
Conductor Design
Stranded
Number of Strands
7
Shielded
Unshielded
Temperature Rating - Maximum Dry
194 "0F
Temperature Rating - Maximum Wet
167 "0F
Maximum Current
25 A
Nominal Outside Diameter
0.59 in
Minimum Bend Radius
4 in
Resistance Properties
UV Resistant
Voltage
501-600 V
Wire Style
Stranded
Sheath Color
Black
