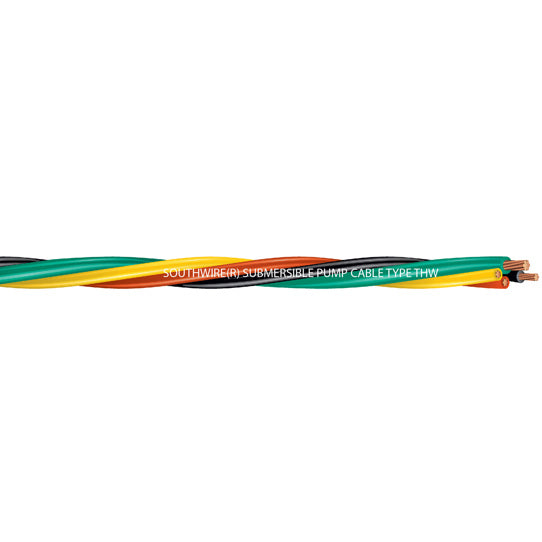

Southwire 56370502 12-2 Sol Cu Thw Twist Submersible Pump Cable 12g 500 ft

Product Description

The SOUTHWIRE 56370502 is a submersible pump cable designed for residential, farm, and industrial water well applications. It is suitable for grounded and ungrounded water well cable systems. The conductors are twisted and colored black, red, and yellow when supplied with three conductors and green ground. Cable is supplied without an overall jacket and for use within well casings.

• For use in residential, farm and industrial water well applications
• Grounded and ungrounded water well cable systems
• Conductors are twisted and colored black, red, and yellow when supplied with three conductors and green ground

Product Highlights

This submersible pump cable features a twisted conductor configuration that eases pulling and reduces abrasion when placed down well casings.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 56370502
• Country of Origin: United States

Technical Specifications

• Cond. Size: 12 AWG
• Conductor Number: 2
• Cond. Strands: Solid
• Diameter Over Conductor (in): 0.080
• Diameter Over Conductor (cm): 0.20
• Insulation Thickness (mils): 30
• Insulation Thickness (mm): 0.76
• Ground Size: 1 X 12
• Approx. OD (in): 0.345
• Approx. OD (cm): 0.88
• Copper Weight (lbs/1000'): 59
• Copper Weight (kgs/km): 88
• Approx. Weight (lbs/1000'): 92
• Approx. Weight (kgs/km): 137
• Brand: Southwire
• Category: Irrigation Wire & Cable
• Country of Origin: USA
• UNSPSC: 26111715
• UPC: 032886850165
• Package Quantity: 1
• Certifications & Standards: AbilityOne, ADA Compliant, GSA Approved, Made in the USA, TAA/BAA Compliant, UL Listed
• HazMat: Hazardous
• Catalog Number: 56370502
• Manufacturer: Southwire
• Made in USA: Yes
• GTIN: 00032886850165
