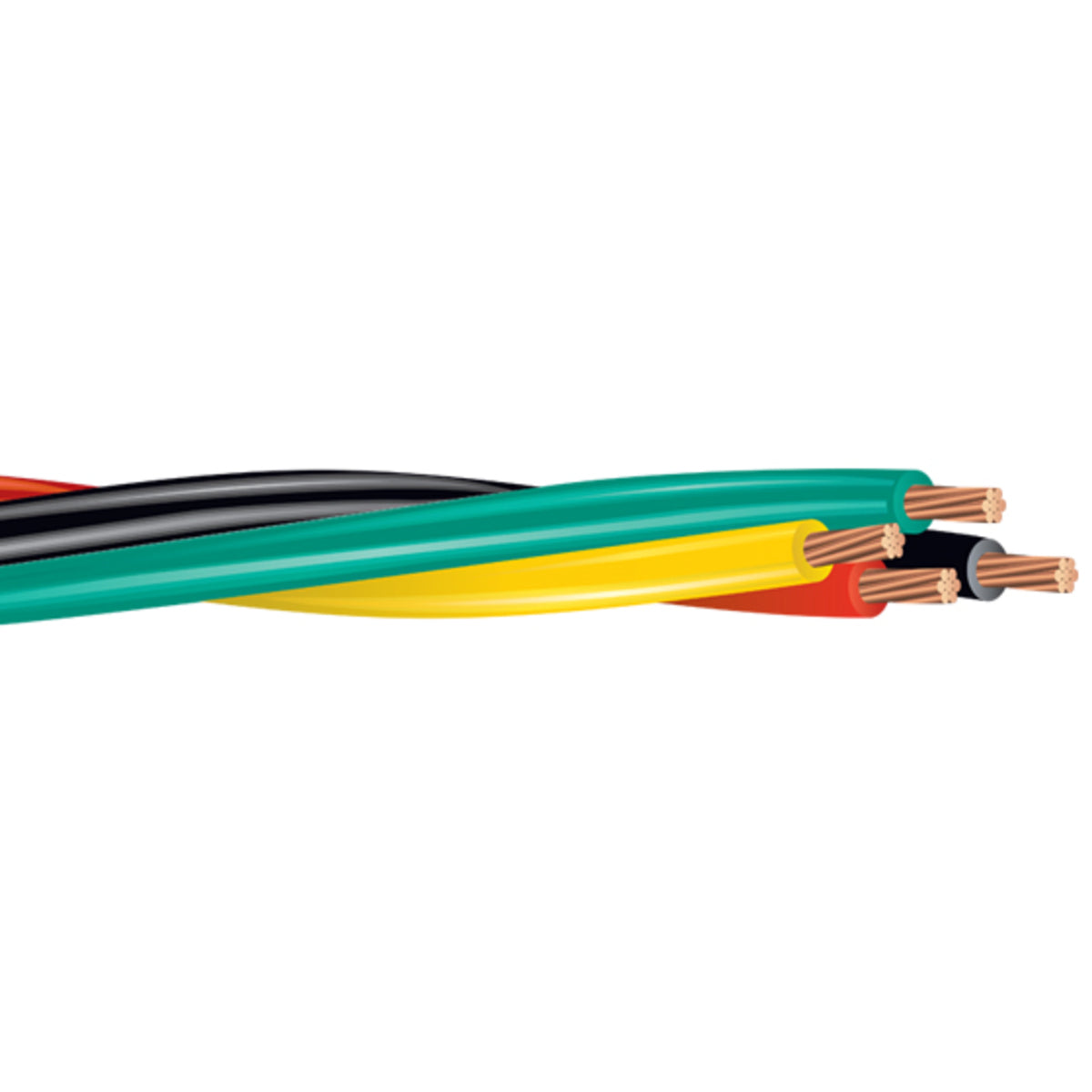

Southwire 56370501 sol cu thw twist submersible pump cable 12 AWG 1000 FT

Product Description

The SOUTHWIRE 56370501 submersible pump cable is designed for residential, farm, and industrial water well applications where the cable isn't subject to repeated handling. Suitable for grounded and ungrounded water well cable systems. Conductors are twisted and colored black, red, and yellow when supplied with three conductors and green ground. Cable is supplied without an overall jacket and for use within well casings.

• For use in residential, farm and industrial water well applications
• For grounded and ungrounded water well cable systems
• Conductors are twisted and colored black, red, and yellow when supplied with three conductors and green ground
• Cable is supplied without an overall jacket
• For use within well casings

Product Highlights

Submersible pump cable for water well applications, featuring twisted conductors and no overall jacket.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 56370501
• Country of Origin: US

Technical Specifications

• Cond. Size: 12 AWG
• Conductor Number: 2
• Cond. Strands: Solid
• Diameter Over Conductor (in): 0.080
• Diameter Over Conductor (cm): 0.20
• Insulation Thickness (mils): 30
• Insulation Thickness (mm): 0.76
• Ground Size: 1 X 12
• Approx. OD (in): 0.345
• Approx. OD (cm): 0.88
• Copper Weight (lbs/1000'): 59
• Copper Weight (kgs/km): 88
• Approx. Weight (lbs/1000'): 92
• Approx. Weight (kgs/km): 137
• Strand Count: 1
• Wire Gauge: 12 AWG
• Item: Twisted Submersible Pump Cable
