Southwire 55812404 12/4 Sjoow Flexible Cord 300V 90C 250ft

Product Description

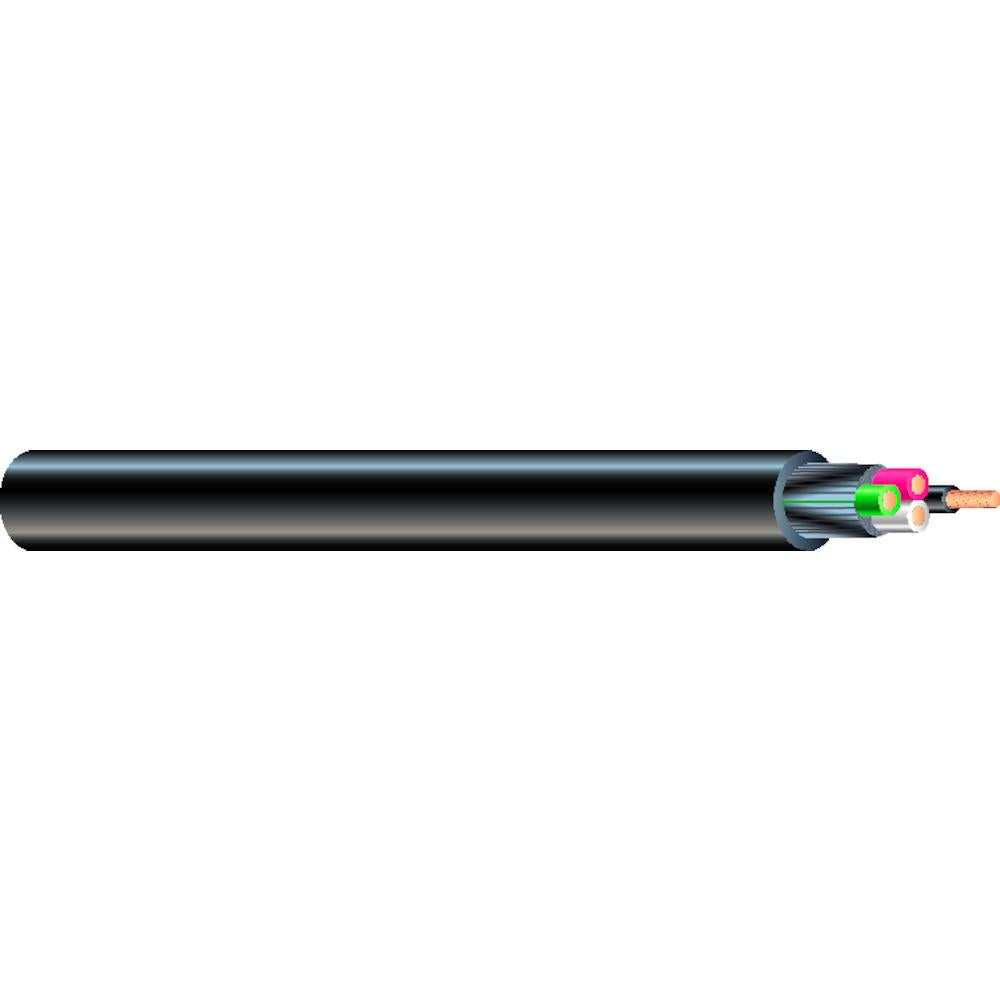

The SOUTHWIRE 55812404 is a 12 AWG, 4-conductor SJOOW flexible cord rated for 300 volts and 90 degrees C, designed for use in portable power applications where flexibility and durability are required. The jacket is constructed from CPE (chlorinated polyethylene) and the conductors use EPDM insulation, giving this cord strong resistance to oils, moisture, abrasion, and temperature extremes. Each conductor consists of 65 copper strands for maximum flex life. The cord ships in a 250-foot length and is manufactured in the USA to UL 62 standards. It is installed by licensed electricians and maintenance technicians across industrial, commercial, and trade service environments.

This flexible cord is suited for portable tools, equipment leads, stage and event power drops, HVAC service equipment connections, and other applications where a durable, oil-resistant cord is required. The 4-conductor configuration with black, white, red, and green conductors supports grounded single-phase and three-phase portable equipment connections. Its CPE jacket and EPDM insulation make it a reliable choice for outdoor and wet-location use where a standard vinyl-jacketed cord would not hold up over time.

Key Features

• 12 AWG stranded copper conductors with 65 strands per conductor for extended flex life
• CPE outer jacket resists oil, moisture, sunlight, and abrasion
• EPDM insulation rated to 90 degrees C for high-temperature environments
• 300-volt rating suitable for portable power equipment and service drops
• RoHS compliant and manufactured to UL 62 standard
• Made in the USA; ships in a 250-foot length

Compatibility

Designed as a general-purpose SJOOW flexible cord for portable electrical equipment, service tools, and power leads requiring a 4-conductor, 12 AWG, oil-resistant cord rated at 300 volts and 90 degrees C.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC (NFPA 70) and applicable local codes. De-energize all circuits before making terminations. SJOOW cord is intended for portable and temporary wiring applications and should not be used as a permanent fixed wiring method. Inspect the jacket for cuts or damage before placing the cord in service.

Technical Specifications

• Conductor Size: 12 AWG
• Number of Conductors: 4
• Strands per Conductor: 65
• Conductor Material: Copper (CU)
• Voltage Rating: 300 volts
• Temperature Rating: 90 degrees C
• Cord Type: SJOOW
• Jacket Material: CPE
• Insulation Material: EPDM
• Color: Black
• Outside Diameter: 0.475 inches
• Length: 250 feet
• Weight: 43.94 pounds
• Standard: UL 62
• RoHS Compliant: Yes
• Country of Origin: USA

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 55812404
