Southwire 55809443 12/3 Soow Hard Service Cord 100 Ft

Product Description

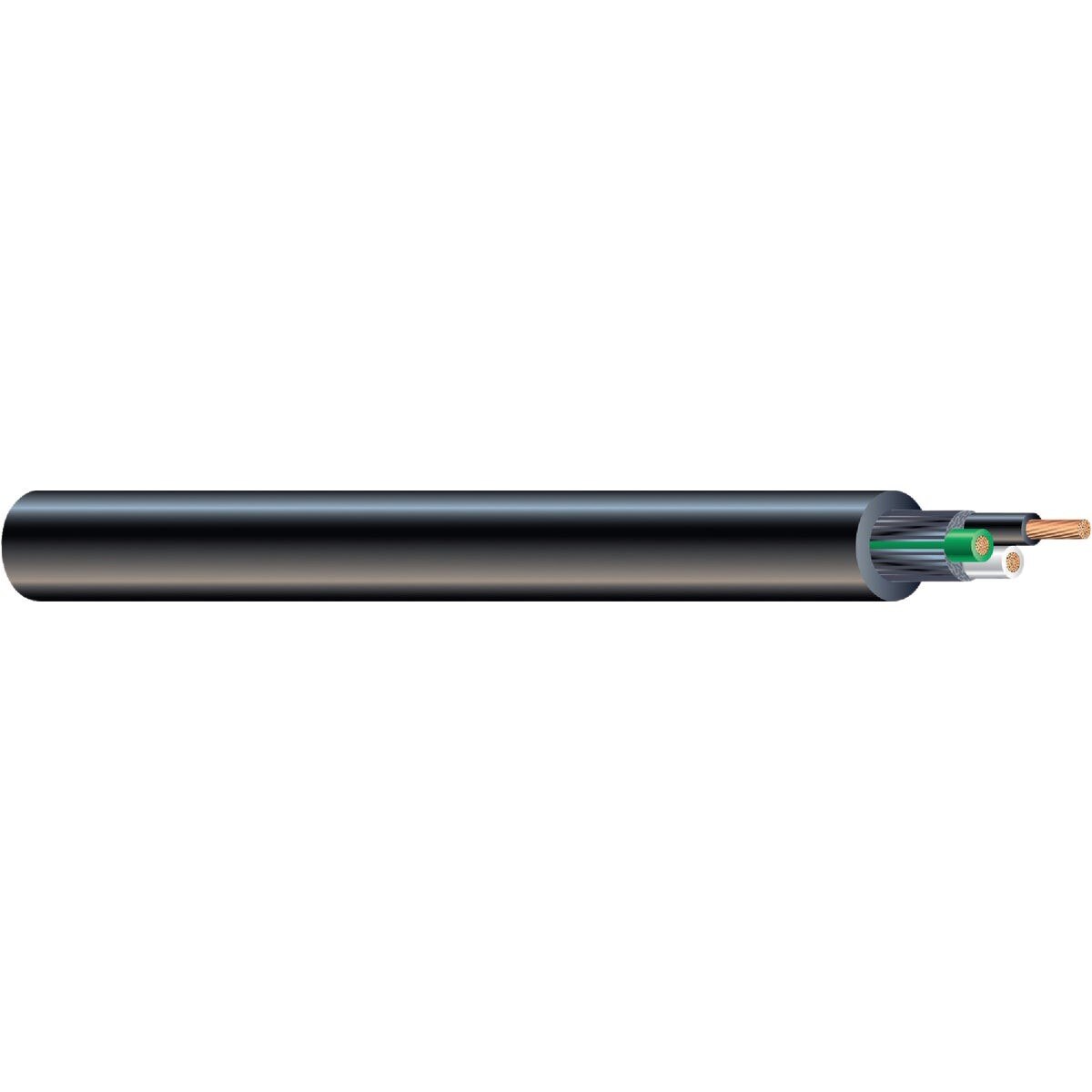

The SOUTHWIRE 55809443 is a 100-foot roll of 12/3 SOOW flexible cord rated for hard-service and portable submersible applications. It features three bare, flexible, stranded Class K copper conductors insulated with EPDM rubber and assembled with wax paper fillers and a tissue paper separator for clean jacket removal. The outer jacket and insulation resist heat, moisture, flame, ozone, and oil, making this cord suited for demanding industrial and construction environments. It carries a temperature rating of -40 degrees F to 194 degrees F in standard wet or dry conditions, with an oil and coolant exposure limit of 140 degrees F. Licensed electricians and industrial maintenance technicians are the primary installers.

This cord is designed for wiring industrial equipment, motors, heavy tools, battery chargers, portable tools, welding leads, marine dockside power, power extensions, and mining applications. It also serves temporary electrical power and lighting installations on construction sites. The SOOW designation indicates suitability for both wet and dry locations and confirms the cord meets hard-usage ratings required in demanding job-site and industrial settings.

Key Features

• 12/3 SOOW rating — suitable for hard-usage wet and dry locations
• EPDM rubber insulation provides heat, moisture, flame, ozone, and oil resistance
• Three bare, stranded, flexible Class K copper conductors for maximum flexibility
• Tissue paper separator wrapped around the assembly allows easy jacket removal
• Temperature rated from -40 degrees F to 194 degrees F in standard conditions
• Oil and coolant exposure rated up to 140 degrees F

Compatibility

Designed for use with industrial equipment, motors, portable tools, battery chargers, welding equipment, marine dockside power installations, and temporary construction site power and lighting setups requiring a hard-service flexible cord.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit completely before making any terminations or connections. Verify that the cord gauge and ampacity are appropriate for the connected load before placing the cord into service. Do not exceed the stated temperature or oil-exposure ratings for the installation environment.

Technical Specifications

• Conductor Configuration: 12/3 (3 conductors, 12 AWG)
• Conductor Type: Bare stranded flexible Class K copper
• Insulation Material: EPDM rubber
• Cord Type: SOOW
• Length: 100 feet
• Temperature Rating (Standard): -40 degrees F to 194 degrees F
• Temperature Rating (Oil or Coolant Exposure): 140 degrees F maximum
• Environment Rating: Wet or dry locations
• Weight: 24.4 pounds
• Unit of Measure: Roll

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 55809443
