Southwire 555080423 250 ft Spool 18/8 Solid CL2P Plenum Thermostat Cable

Product Description

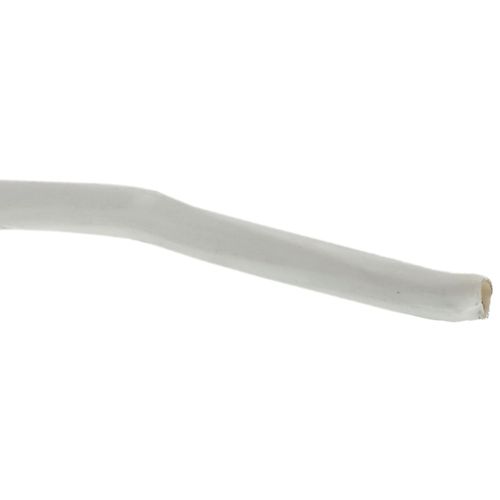

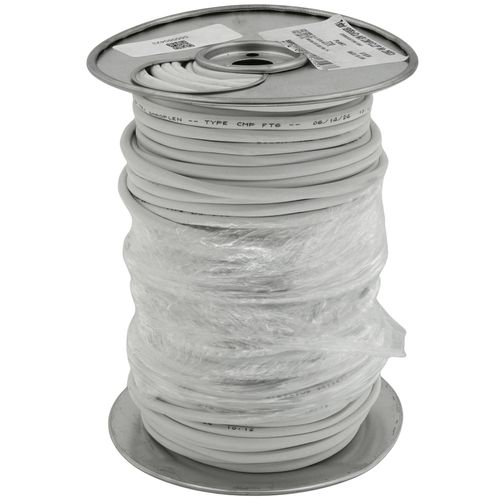

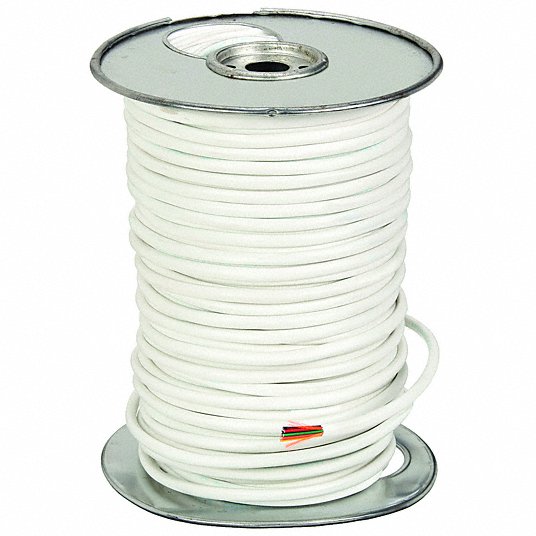

The Southwire 555080423 is a 250 foot spool of 18/8 solid CL2P (Plenum) thermostat cable. This cable is designed for thermostat control applications and suitable for installations that require connections from floor to floor. It provides the flexibility needed for access in various spaces without conduit.

• Length of 250 feet
• Plenum-rated for air-circulation spaces
• Designed for thermostat control applications

Product Highlights

This thermostat cable features a flame-retardant jacket that minimizes harmful fume emissions if a fire occurs. It ensures safety in environments where air circulation is essential.

Product Information

Standard Information

• Wire Type: Thermostat Wire
• Length: 250 feet

Technical Specifications

• AWG: 18
• Conductors: 8
• Cable Type: Plenum-Rated
• Diameter Over Conductor: 0.040 inches
• Insulation Thickness: 5 mils
• Jacket Thickness: 15 mils
• Approximate OD: 0.224 inches
• Copper Weight: 40 lbs/1000'
• Approximate Weight: 54 lbs/1000'
• DC Resistance at 25C: 6.669 ohms/1000'
• AC Resistance at 75C: 8.035 ohms/1000'
• Voltage: 300 V
• Jacket Material: PVC
• Conductor Material: Copper
• Temperature Rating - Maximum Dry: 140 °F
• Standards: CL2P Plenum Rated; UL Listed
