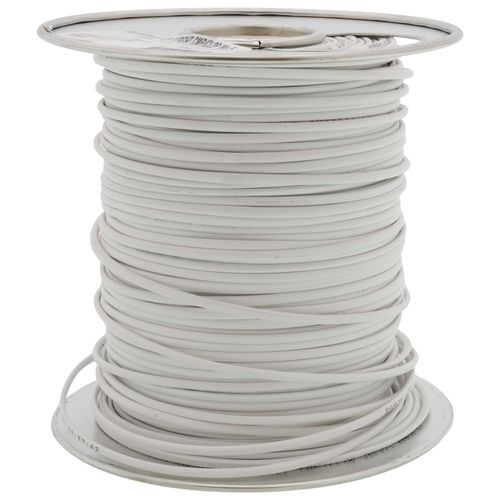

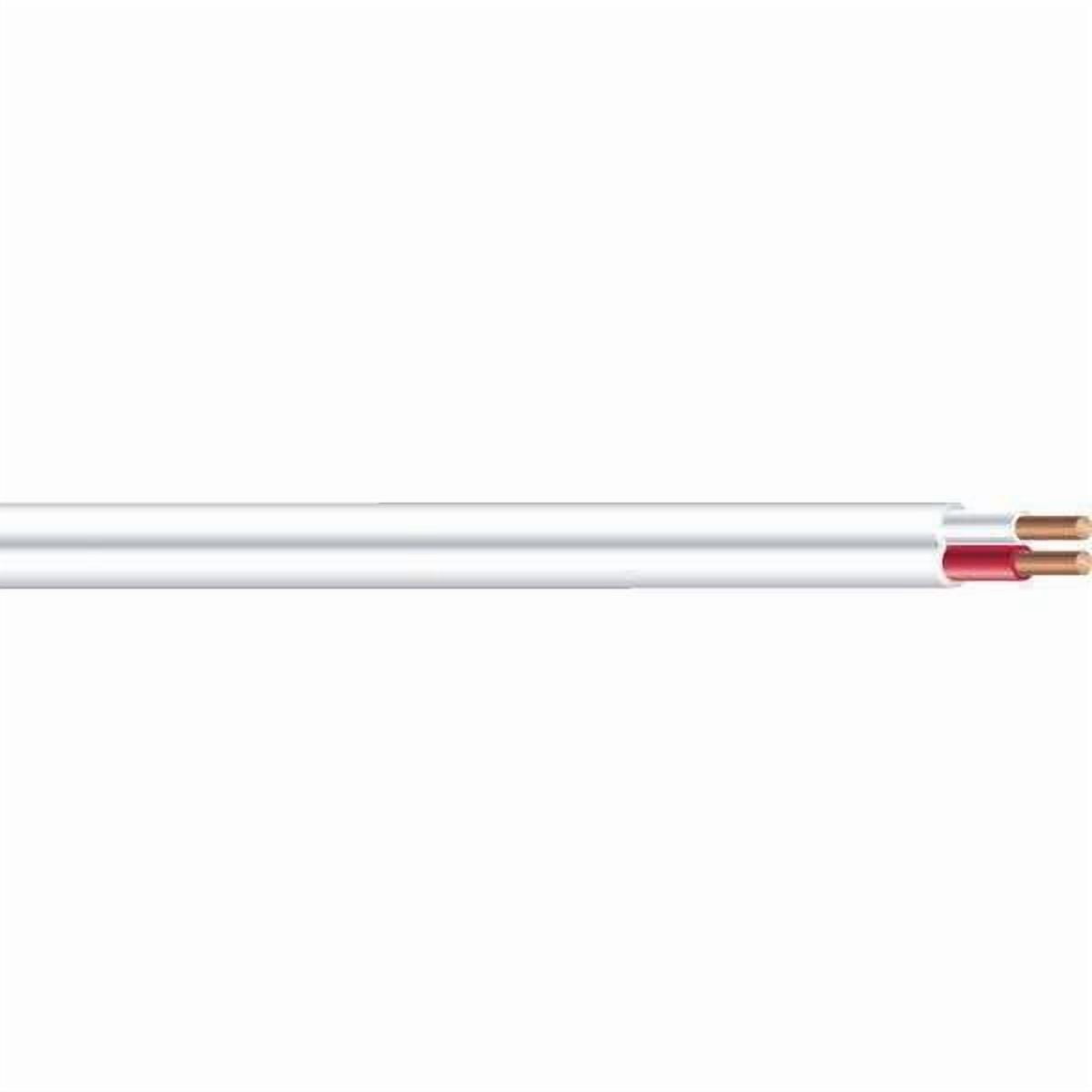

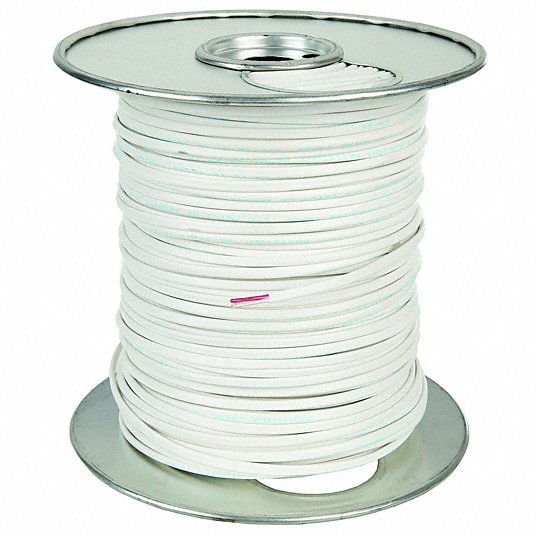

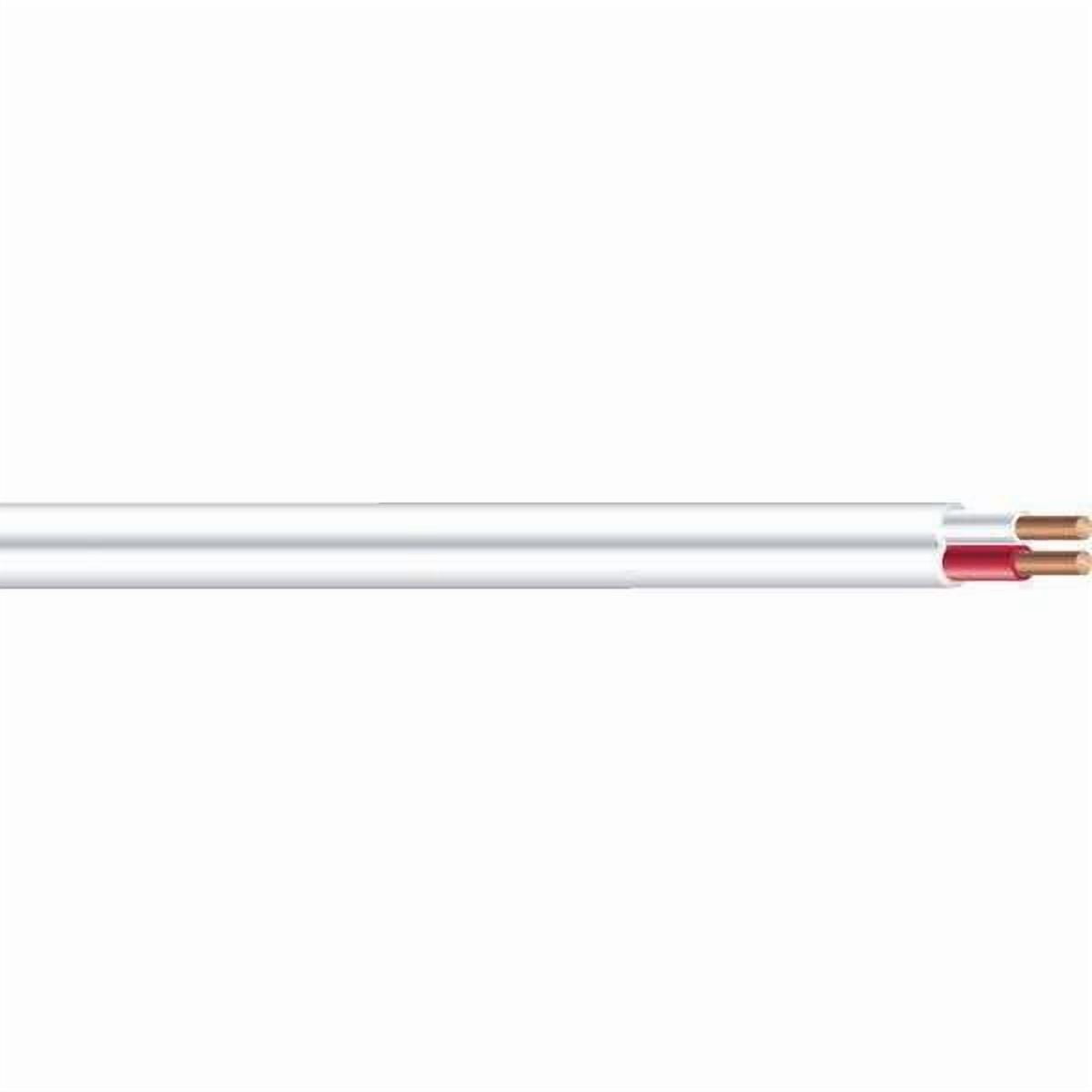

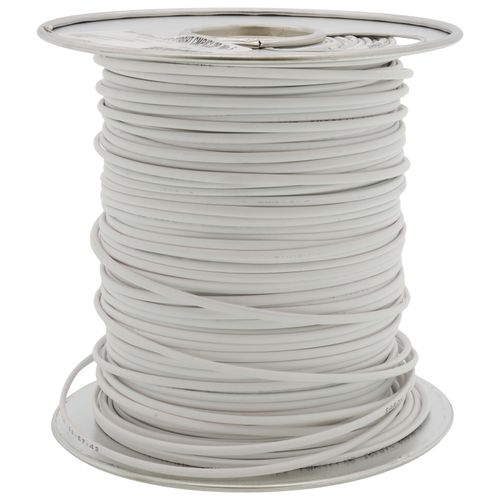

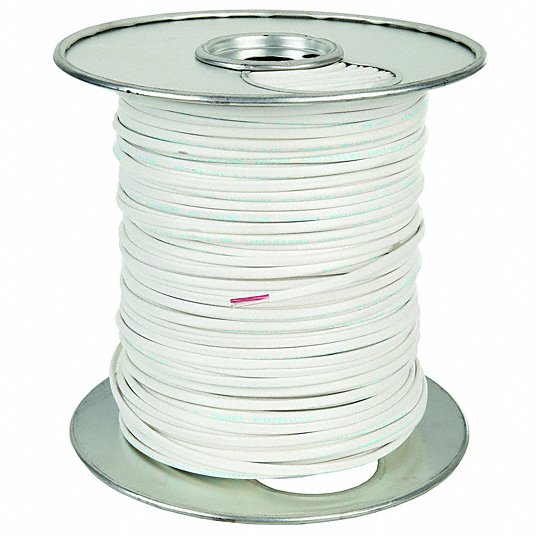

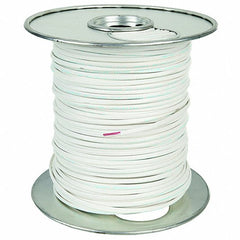

Southwire 555020523 thermostat wire 18/2 sol cu 500 ft 300v cmp/cl2p

Product Description

The Southwire 555020523 is a thermostat wire designed for class 2 power-limited circuit applications. This 18 AWG, 2-conductor solid copper wire is suitable for thermostat control systems, including those requiring installation from floor to floor or up access shafts without conduit. It features a 300V voltage rating and a CL2P plenum rating, ensuring compliance with fire safety standards for air-circulation spaces.

• Class 2 power-limited circuit cable for thermostat control applications.
• 18 AWG, 2-conductor solid copper wire with a 300V voltage rating.
• CL2P Plenum Rated and UL Listed for installation in air-circulation spaces.

Product Highlights

Designed for thermostat control applications, this CL2P plenum-rated wire is suitable for installation in air-circulation spaces without conduit.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 555020523
• Country of Origin: United States

Technical Specifications

• Brand: Southwire
• MPN: 555020523
• Product Type: Thermostat Wire
• Length: 500 ft
• Voltage: 300 V
• Standards: CL2P Plenum Rated, UL Listed, ASTM B3 Soft or Annealed Copper Wire, UL 13 Power-Limited Circuit Cables, UL 444 CMP/CL2P, RoHS-3 Complies with Latest Directive
• Wire Size: 18 AWG
• Cable Type: Plenum
• Max Operating Temperature: 60 Degrees C
• Cable Rating: CL2P
• Jacket Color: White
• Package Type: Spool
• Conductor Design: Solid
• Nominal Outside Diameter: 0.14 in
• Number of Conductors: 2
• Country of Origin: United States
• Conductor Material: Solid bare copper per ASTM B3
• Insulation Material: Polyvinyl Chloride PVC
• Overall Jacket Material: Polyvinyl Chloride (PVC)
• Conductor Color: BK, RD
• Shielding: Unshielded
