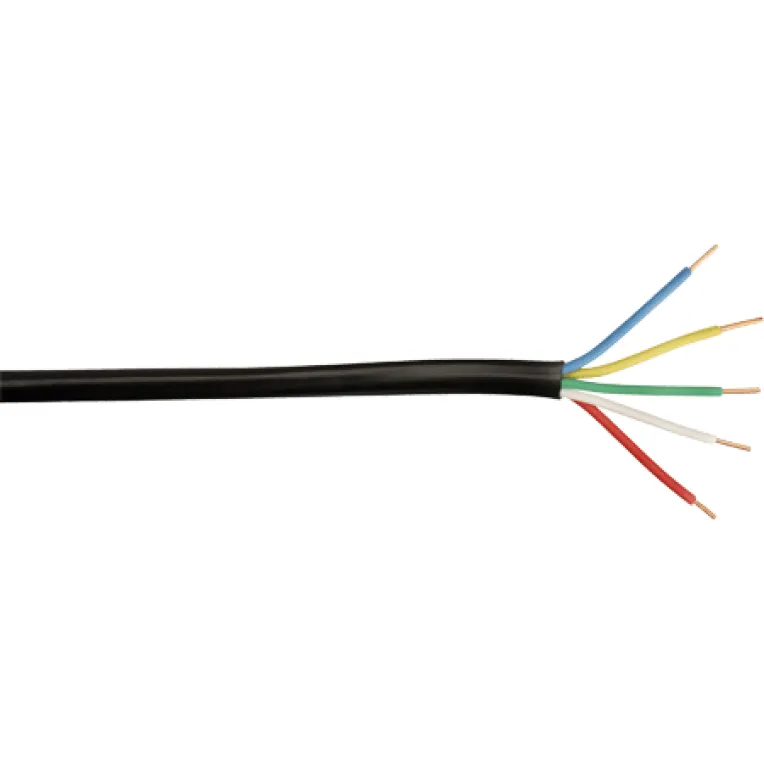

Southwire 55310-04-07 Solid Thermostat Wire 18/10 250 feet Reel

Product Description

The Southwire 55310-04-07 solid thermostat wire features a 150 voltage rating per NEC Article 725 and is ETL listed to UL 13. This wire meets UL 1581 Vertical Tray Flame Test (FT-1) and is RoHS compliant. It consists of solid copper conductors with 6 mils of PVC insulation, covered with a brown PVC jacket using SIM for easier pulling and installation, and includes a ripcord.

• 150 voltage rating per NEC Article 725
• ETL listed to UL 13
• Solid copper conductors with PVC insulation

Product Highlights

Solid thermostat wire with PVC insulation and ripcord for easy installation. Ideal for thermostat and low voltage applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 55310

Technical Specifications

• Voltage Rating: 150V
• Conductor Material: Solid Copper
• Insulation Material: PVC
• Compliance: RoHS Compliant
• Listing: ETL listed to UL 13
• Flame Test: UL 1581 Vertical Tray Flame Test (FT-1)
• Conductor Count: 10
• Conductor Gauge: 18 AWG
• Length: 250 feet
