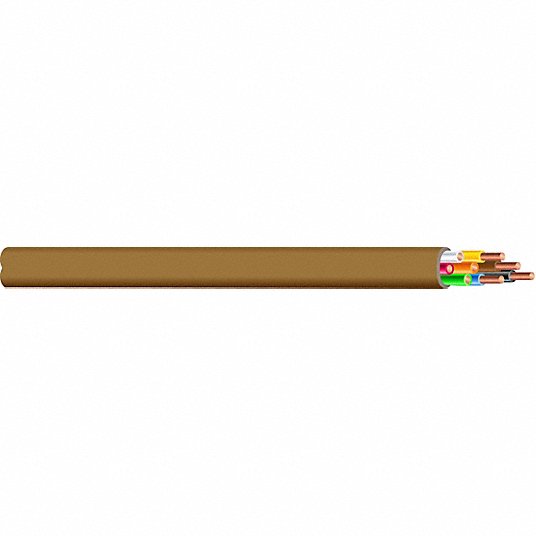

SOUTHWIRE 553085407 Thermostat Wire 18 AWG 8 Conductors 250 ft

Product Description

The SOUTHWIRE 553085407 thermostat wire is designed for use in non-air-circulating spaces. This wire connects thermostat controls to a main power circuit, making it suitable for commercial applications. The wire has solid copper conductors, PVC insulation, and a PVC jacket.

• Non-plenum-rated for installation in closed walls.
• Connects thermostat to power circuits efficiently.
• Contains eight solid copper conductors for reliable performance.

Product Highlights

The wire’s design supports effective thermostat controls in various environments.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 553085407

Technical Specifications

• Fire Resistance Rating: Not Rated
• Trade Designation: CL2; CMH
• Voltage: 150 V
• Overall Length: 250 ft
• Jacket Material: PVC
• Number of Conductors: 8
• Conductor Size: 18 AWG
• Conductor Material: Copper
• Operating Temperature - Minimum: -40 °F
• Temperature Rating - Maximum Dry: 140 °F
• Nominal Outside Diameter: 0.2 inches
• Standards: CSA C22.2 214; ETL; FT-1; UL 13; UL 1581; UL 444
• Conductor Type: Solid Copper
