Southwire 553060407 thermostat wire 150 V 18 AWG 6 conductor solid 250 foot

Product Description

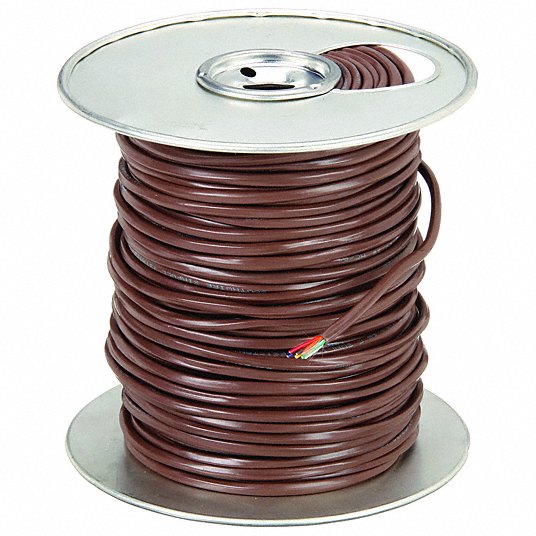

The SOUTHWIRE 553060407 is an unshielded thermostat wire designed for reliable low-voltage applications. This wire features 6 solid 18 AWG copper conductors, suitable for thermostat control and HVAC systems. It has a 150 V voltage rating and a 60 deg C temperature rating, with polypropylene insulation and a PVC jacket. The 250 ft length is provided on a reel, meeting NEC Article 725 and ETL listed to UL 13 standards.

• 150 V voltage rating for low-voltage applications.
• Features 6 solid 18 AWG copper conductors.
• Meets NEC Article 725 and is ETL listed to UL 13.

Product Highlights

Unshielded thermostat wire for Class 2 power-limited circuits, ideal for control applications.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 553060407
• Country of Origin: US

Technical Specifications

• Brand: Southwire
• Manufacturer: Southwire
• Catalog Number: 553060407
• UPC: 029892354305
• GTIN: 00029892354305
• Country of Origin: United States
• Shielding Type: Unshielded
• Length: 250 ft
• Stranding: 1
• Jacket Color: Brown
• Conductor Size: 18 AWG
• Conductor Type: Solid Copper
• Packaging Type: Reel
• Voltage Rating: 150 V
• Jacket Material: PVC
• Outside Diameter: 186 mil
• Temperature Rating (Max): 60 deg C
• Insulation Material: Polypropylene
• Number of Conductors: 6
• Certifications/Standards: NEC® Article 725, ETL listed to UL 13 and UL 444, UL 1581 Vertical Tray Flame Test (FT-1), Type CL2, C22.2 214 TYPE CMH, ASTM B3 Soft or Annealed Copper Wire
• UL Type: Class 2 Remote-Control, Signaling and Po
• Armor Type: NONE
• Rating: Riser
• Diameter Over Conductor: 0.040 inch
• Insulation Thickness: 5 mils
• Jacket Thickness: 15 mils
• Copper Weight (lbs/1000ft): 29
• Approx. Weight (lbs/1000ft): 37
• DC Resistance at 25C (ohms/1000ft): 6.669
• AC Resistance at 75C (ohms/1000ft): 8.035
• Inductive Reactance (ohms/1000ft): 0.036
• Min. Bend Radius: 0.74 inch
• Conductor Material: Solid bare copper per ASTM B3
• Conductor Color Code: RED/WHITE/GREEN/BLUE/YELLOW/BROWN
• Fire Resistance Rating: Not Rated
• Trade Designation: CL2
• Operating Temperature Range: -20 to 60 deg C
