Southwire 553055407 wire 18/5 t-stat 150 v 250 feet

Product Description

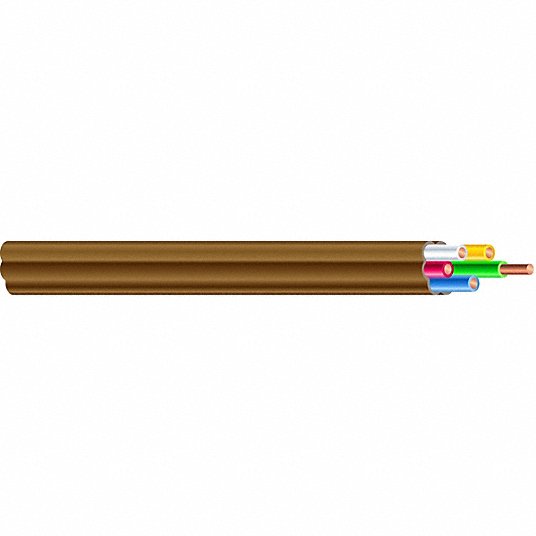

The SOUTHWIRE 553055407 is a non-plenum-rated thermostat wire, an electric cable designed for installation in non-air-circulating spaces like closed walls. It connects thermostat controls to a main power circuit, often via the ceiling. This 18 AWG, 5-conductor wire is 250 ft long and rated for 150 V. It is suitable for HVAC/R equipment and controllers in residential and industrial applications.

• Non-plenum-rated electric cable for non-air-circulating spaces.
• Connects thermostat controls to a main power circuit.
• CL2 cable meets safety standards for fire resistance and voltage handling.

Product Highlights

This thermostat wire is a Class 2 power-limited circuit cable, suitable for thermostat control applications and meeting CL2 and CMH safety standards.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 553055407
• Country of Origin: USA

Technical Specifications

• Brand: SOUTHWIRE
• MPN: 553055407
• Fire Resistance Rating: Not Rated
• Trade Designation: CL2; CMH
• Voltage: 150 V
• Overall Length: 250 ft
• Jacket Material: PVC
• Packaging: Coil
• Jacket Color: Brown
• Number of Conductors: 5
• Conductor Size: 18 AWG
• Conductor Material: Copper
• Conductor Design: Solid
• Conductor Insulation Color: Blue; Green; Red; White; Yellow
• Shielding: Unshielded
• Conductor Insulation Material: PVC
• Operating Temperature - Minimum: -40 °F
• Temperature Rating - Maximum Dry: 140 °F
• Nominal Outside Diameter: 0.17 in
• Standards: CSA C22.2 214; ETL; FT-1; UL 13; UL 1581; UL 444
• Insulation Thickness: 6 mils
• Ripcord: Yes
• Country of Origin: US
• Nominal Approximate Cable Weight per 1000 ft: 33.3 lb
• Nominal Capacitance Between Conductors at 1 kHz: 25 pF/ft
• DC Resistance per Conductor at 20 deg C: 6.32 Ohm/1000 ft
