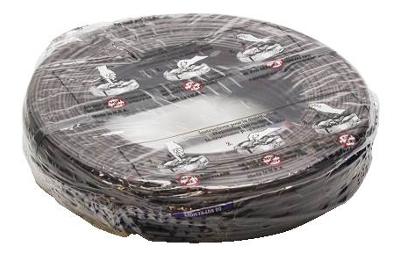

SOUTHWIRE 553055407 Thermostat Wire 18 AWG 5 Conductors 250 ft

Product Description

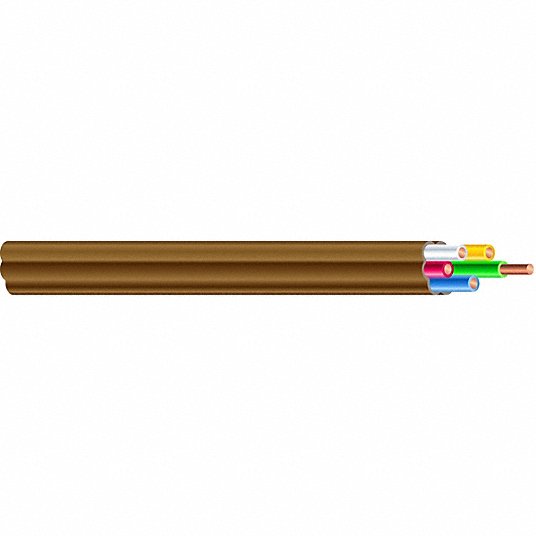

The Southwire 553055407 thermostat wire is designed for use in non-air-circulating spaces, connecting thermostat controls to the main power supply. This wire comprises solid copper conductors insulated with PVC and encased in a PVC jacket, making it suitable for commercial applications.

• 18 AWG conductor size
• 5 conductors
• Overall length of 250 ft

Product Highlights

This wire is commonly utilized in commercial buildings, warehouses, and distribution centers, ensuring reliable connectivity and performance.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 553055407

Technical Specifications

• Fire Resistance Rating: Not Rated
• Trade Designation: CL2; CMH
• Voltage: 150 V
• Overall Length: 250 ft
• Jacket Material: PVC
• Jacket Color: Brown
• Number of Conductors: 5
• Conductor Size: 18 AWG
• Conductor Material: Copper
• Conductor Design: Solid
• Conductor Insulation Color: Blue; Green; Red; White; Yellow
• Shielding: Unshielded
• Conductor Insulation Material: PVC
• Operating Temperature - Minimum: -40 °F
• Temperature Rating - Maximum Dry: 140 °F
• Nominal Outside Diameter: 0.17 in
• Standards: CSA C22.2 214; ETL; FT-1; UL 13; UL 1581; UL 444
• Wire Gauge: 18 AWG
• Sheath Color: Brown
• Application: Thermostat
• Resistance Properties: Heat Resistant, Sunlight/UV Resistant
• Wire Style: Solid
• Type: Class 2
• Resistance: 6.32 Ohm
