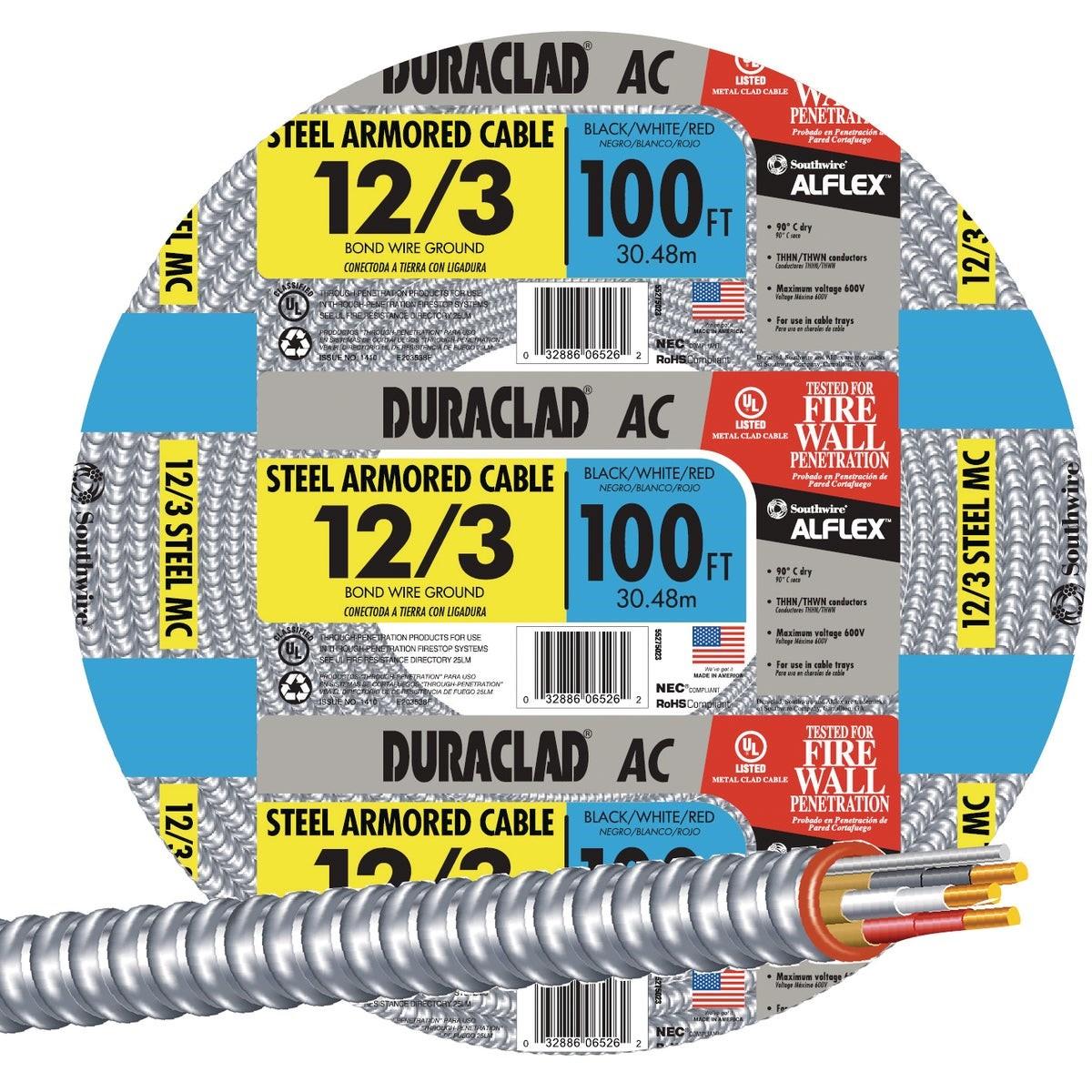

Southwire 55275023 12-3 Cu Thhn Bond Wire Steel Arm Ac

Product Description

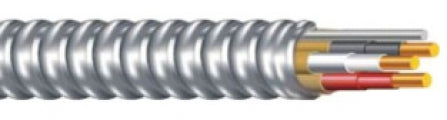

Southwire 55275023 is a twelve gauge AC armored cable that measures one hundred feet in length. It features soft drawn copper conductors and is designed for various electrical applications. The outer diameter is zero point fifty-five inches, making it suitable for tight spaces. The insulation material used is THHN, which provides excellent performance in a range of conditions.

• Length: One hundred feet
• Voltage Rating: Six hundred volts
• Current Rating: Twenty amperes

Product Highlights

This cable is ideal for both residential and commercial use. It is UL 83 approved and rated for up to ninety degrees Celsius.

Product Information

Standard Information

• Manufacturer: Southwire Company
• Brand: Southwire

Technical Specifications

• Type: AC
• Length: One hundred feet
• Outer Diameter: Zero point fifty-five inches
• Conductor Material: Soft drawn copper
• Approval: UL 83
• Voltage Rating: Six hundred volts
• Current Rating: Twenty amperes
• Temperature Rating: Ninety degrees Celsius
• Weight: Two hundred fifty-one pounds per thousand feet
• Insulation Material: THHN
• Number of Conductors: Three
