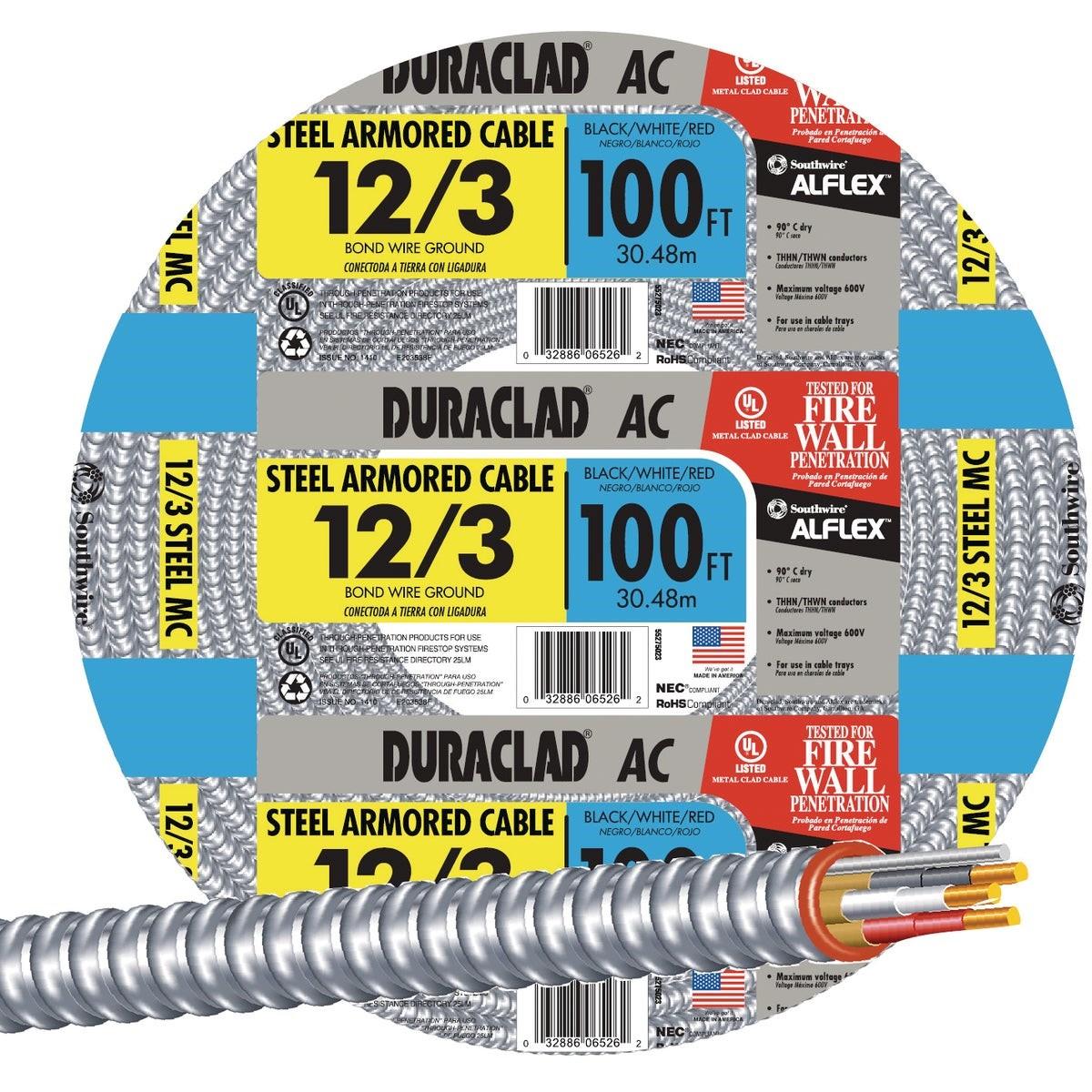

Southwire 55275023 12/3 Ac Armored Cable 100 Ft Roll

Product Description

The SOUTHWIRE 55275023 is a 100-foot roll of 12/3 AC-90 steel armored cable designed for branch circuit and feeder wiring in residential and commercial electrical installations. The cable features copper THHN conductors rated to 90 degrees C, housed inside a flexible interlocking steel armor that eliminates the need for additional couplings or elbows during routing. A 16 AWG internal bonding wire, combined with the outer steel armor, forms the grounding path. Anti-short bushings are included with each roll. The cable is UL listed and approved for use in dry locations on both exposed and concealed work.

This armored cable is suited for branch circuits and feeders in residential and light commercial applications where a flexible, self-protecting wiring method is required. It is appropriate for exposed runs in mechanical rooms, concealed runs inside walls and ceilings, and other dry-location installations where rigid conduit is not practical. The black-striped color-coded conductors assist with proper circuit identification during installation and inspection.

Key Features

• 12/3 configuration with copper THHN conductors rated to 90 degrees C
• Flexible interlocking steel armor eliminates need for couplings or elbows
• 16 AWG internal bonding wire and outer armor form the grounding path
• Anti-short bushings included in each roll
• Black-striped color-coded conductors for circuit identification
• UL listed for branch circuits and feeders in dry locations, exposed or concealed

Compatibility

Designed as an OEM-style replacement and standard-fit armored cable for residential and light commercial branch circuit and feeder wiring in dry-location applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the circuit at the panel before beginning any wiring work. Anti-short bushings must be installed at all cut ends of the armor before making connections. This cable is rated for dry locations only and must not be installed in wet or damp environments.

Technical Specifications

• Conductor Size: 12 AWG
• Configuration: 12/3
• Conductor Material: Copper
• Conductor Insulation Rating: THHN, 90 degrees C
• Armor Material: Steel
• Length: 100 feet
• Bonding Wire: 16 AWG internal
• Weight: 23.75 pounds
• Unit of Measure: Roll
• Location Rating: Dry locations only
• Listing: UL Listed

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 55275023
