Southwire 55274921 12/2 Ac 90 Armored Cable 25 Ft

Product Description

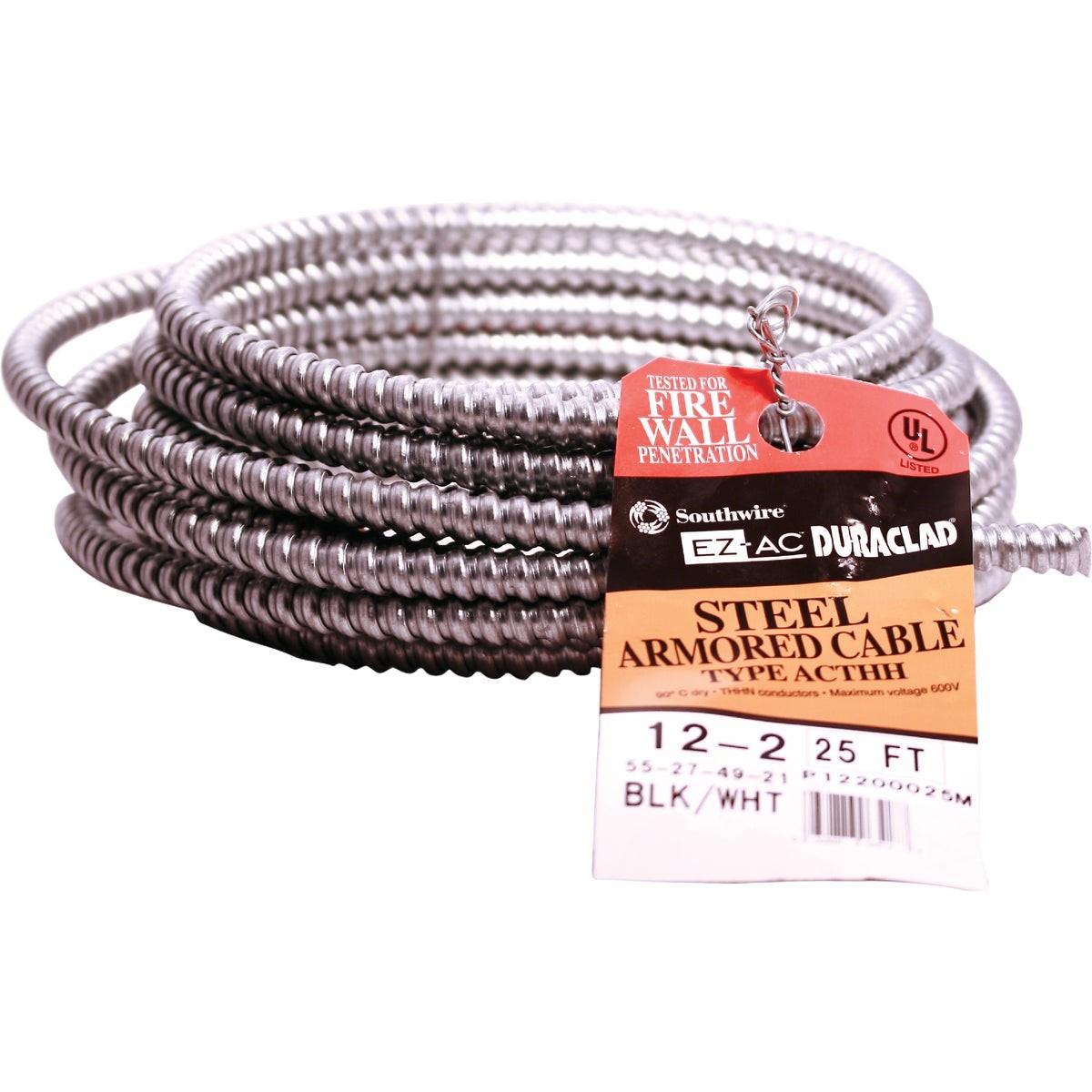

The SOUTHWIRE 55274921 is a 25-foot roll of 12/2 AC-90 steel armored cable designed for branch circuit and feeder wiring in residential and light commercial applications. The cable features copper conductors rated THHN at 90 degrees C, housed inside a flexible steel armor that eliminates the need for rigid couplings or elbows during installation. The 16AWG internal bonding wire and the outer steel armor together form the grounding path. Anti-short bushings are included with each roll. The outer jacket uses a black striped color-coded design for easy circuit identification in the field.

This armored cable is suited for both exposed and concealed wiring installations in dry locations. Licensed electricians use it for branch circuits and feeders in residential construction, commercial tenant improvements, and light industrial fit-outs where a flexible, self-protecting wiring assembly is required without the bulk of rigid conduit. The 12/2 configuration supports standard 20-amp branch circuits.

Key Features

• Steel armor provides mechanical protection without rigid conduit or elbows
• Copper THHN conductors rated to 90 degrees C
• 16AWG internal bonding wire and outer armor serve as the grounding path
• Anti-short bushings included for code-compliant termination
• Black striped color-coded jacket for circuit identification
• UL listed for branch circuits and feeders in dry locations

Compatibility

Designed for use in branch circuit and feeder applications in dry locations, both exposed and concealed, as permitted by applicable electrical codes.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out power to the circuit before making any connections. Anti-short bushings must be installed at each termination point where the armor is cut to protect conductor insulation. This cable is rated for dry locations only and must not be installed in wet or damp environments.

Technical Specifications

• Conductor Material: Copper
• Conductor Rating: THHN 90 degrees C
• Cable Configuration: 12/2
• Armor Material: Steel
• Bonding Wire: 16AWG internal
• Length: 25 feet
• Weight: 5.4 pounds
• Location Rating: Dry locations only
• Listing: UL listed
• UOM: Roll

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 55274921
