Southwire 552085307 Thermostat Wire 20 AWG 8 Conductors 125 ft

Product Description

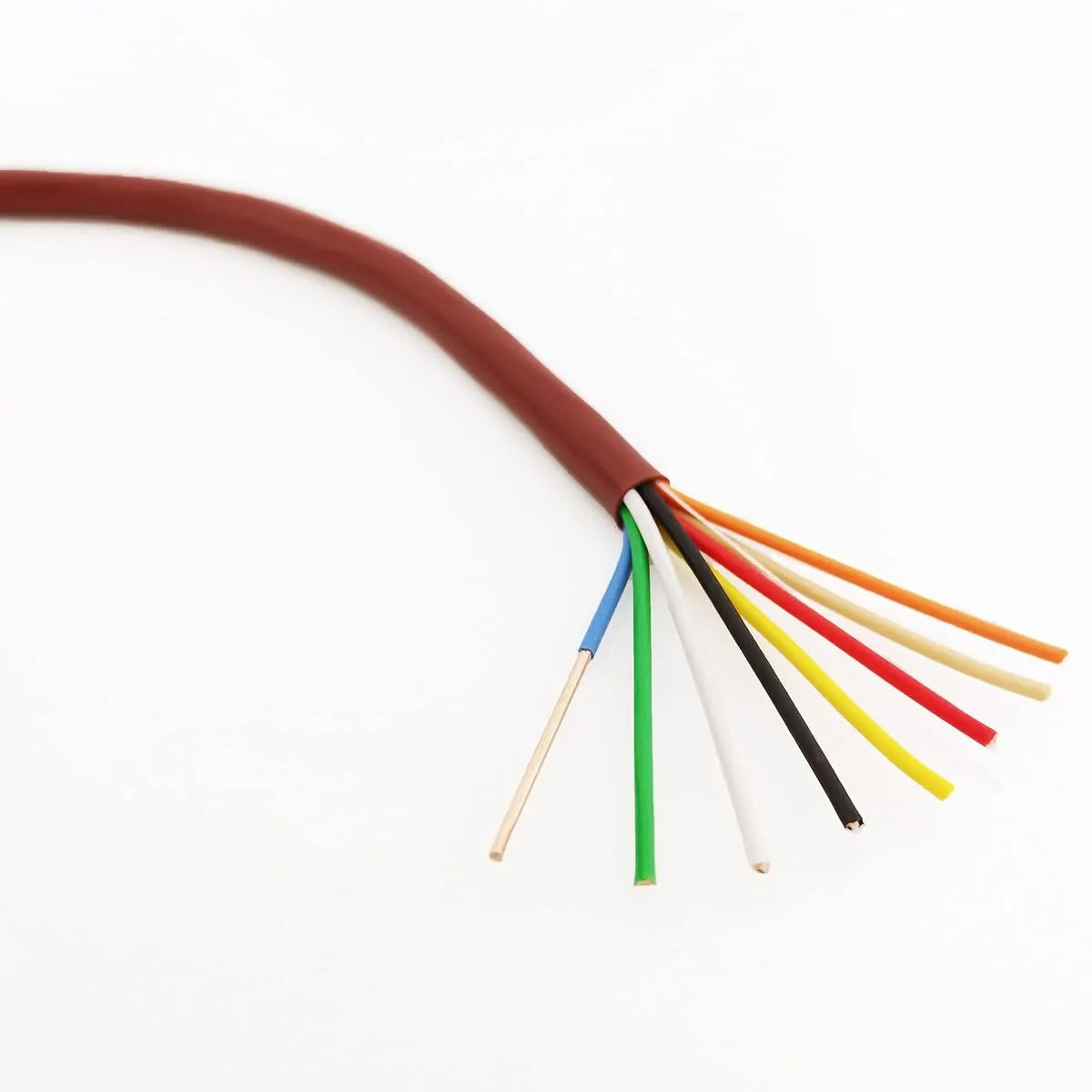

The Southwire 552085307 thermostat wire is a non-plenum-rated electric cable with 20 AWG conductor size and 8 conductors, designed for installation in non-air-circulating spaces. This 150V wire connects thermostat controls to a main power circuit and is commonly used in commercial buildings. It measures 125 ft in length and comes in a coil.

• Features solid bare copper conductors for excellent conductivity and low voltage drop
• Durable PVC insulation and jacket for long-lasting performance
• CL2/CM rating ensures suitability for in-wall installation in residential settings, providing safe and reliable operation

Product Highlights

This Southwire thermostat wire is ideal for efficient thermostat and low-voltage control wiring in residential HVAC systems and DIY projects.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 552085307
• Country of Origin: USA

Technical Specifications

• Brand: SOUTHWIRE
• Manufacturer Part Number: 552085307
• Fire Resistance Rating: Not Rated
• Trade Designation: CL2; CM
• Voltage: 150 V
• Overall Length: 125 ft
• Jacket Material: PVC
• Packaging: Coil
• Jacket Color: Brown
• Number of Conductors: 8
• Conductor Size: 20 AWG
• Conductor Material: Copper
• Conductor Design: Solid
• Conductor Insulation Color: Black; Blue; Brown; Green; Orange; Red; White; Yellow
• Shielding: Unshielded
• Conductor Insulation Material: PVC
• Operating Temperature - Minimum: -40 °F
• Temperature Rating - Maximum Dry: 140 °F
• Nominal Outside Diameter: 0.17 in
• Standards: ETL; NEC 725; RoHS 3; Type CL2; UL 13; UL 444
• Length: 125 feet
• Insulation Material: PVC (Polyvinyl Chloride)
• Outer Jacket Color: Brown
• Temperature Rating: -20°C to 60°C
• Cable Rating: CL2/CM
