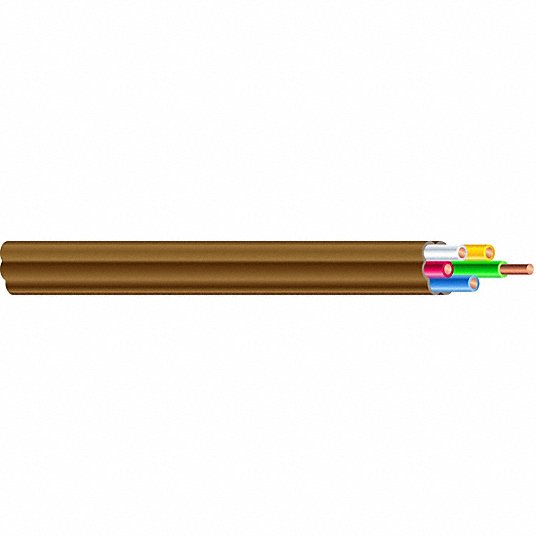

SOUTHWIRE 552055407 Thermostat Wire 20 AWG 5 Conductors 250 ft

Product Description

The SOUTHWIRE 552055407 thermostat wire is designed for connecting thermostat controls to a main power circuit. This non-plenum-rated cable is suitable for use in non-air-circulating spaces, primarily in commercial sites like warehouses and distribution centers.

• 20 AWG conductor size
• 5 conductors available
• Overall length of 250 ft

Product Highlights

This thermostat wire provides reliable connections in various installations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 552055407

Technical Specifications

• Fire Resistance Rating: Not Rated
• Trade Designation: CL2; CM
• Voltage: 150 V
• Overall Length: 250 ft
• Jacket Material: PVC
• Number of Conductors: 5
• Conductor Size: 20 AWG
• Conductor Material: Copper
• Conductor Design: Solid
• Conductor Insulation Colors: Blue; Green; Red; White; Yellow
• Operating Temperature - Minimum: -40 °F
• Temperature Rating - Maximum Dry: 140 °F
• Nominal Outside Diameter: 0.15 in
• Standards: ETL; NEC 725; RoHS 3; Type CL2; UL 13; UL 444
• Country of Origin: US
