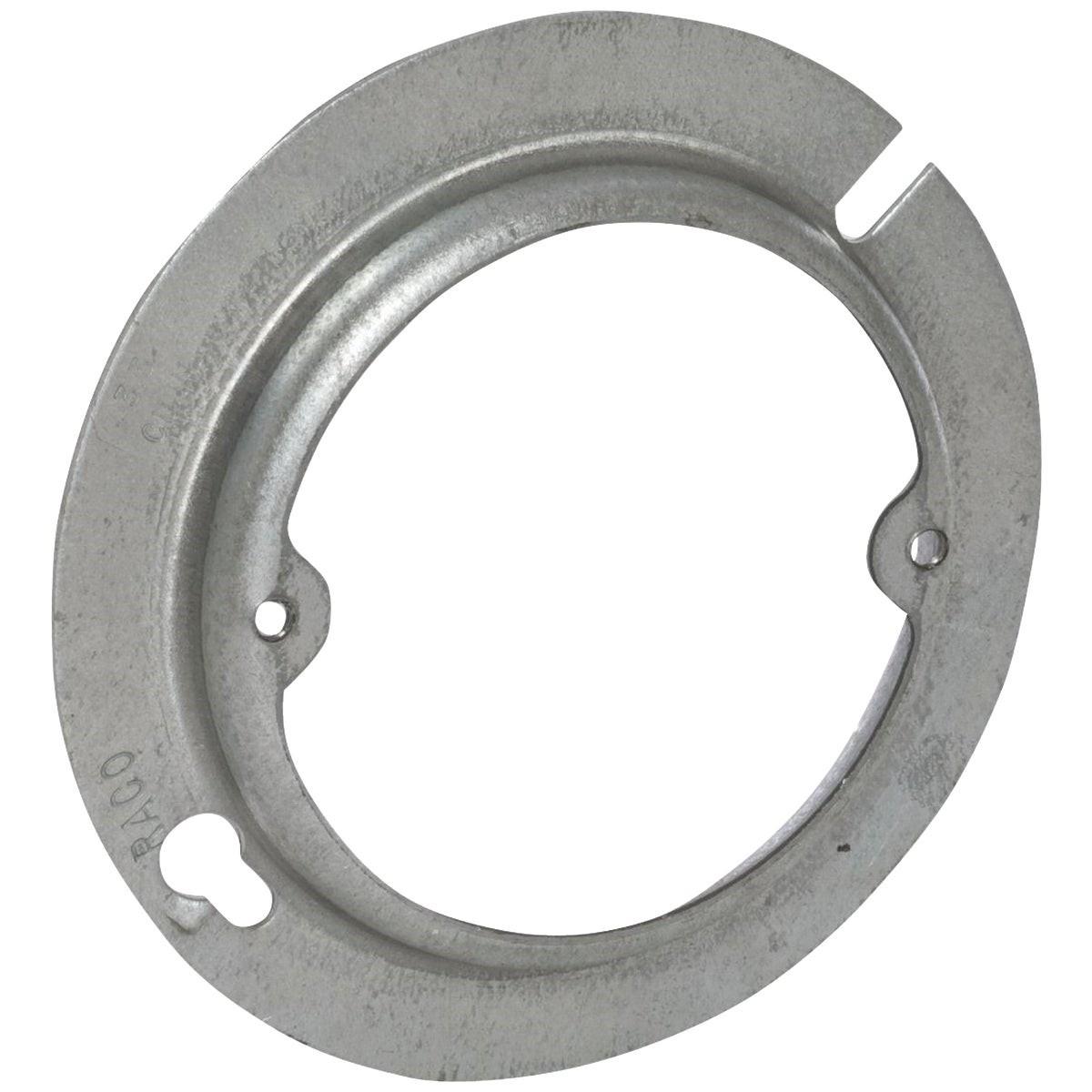

Southwire 54C3-5/8-UPC Round Steel Raised Cover

Product Description

The SOUTHWIRE 54C3-5/8-UPC is a round steel raised fixture cover designed to convert a 4-inch square electrical box into a round opening for lighting installation. It provides 8-32 threaded mounting tabs for securing light fixtures and includes angled slots that compensate for up to 0.5 inches of box misalignment on upright framing members. This cover is built to UL and RoHS compliance standards, making it suitable for residential and light commercial wiring applications. Electricians rely on this type of fitting cover to complete retrofit lighting installations cleanly and to code.

This raised cover is used in wall and ceiling installations where a 4-inch square box must be adapted to accept a round-base light fixture. The 0.625-inch raised depth provides clearance for wiring connections in tighter box configurations. It is suited for new construction and retrofit scenarios where square boxes are already in place and a round fixture mount is required. The angled slot design simplifies alignment when framing members are not perfectly plumb or level.

Key Features

• Converts 4-inch square electrical box to a round fixture opening
• 8-32 threaded mounting tabs for standard light fixture attachment
• Angled slots compensate for up to 0.5 inches of box misalignment
• Steel construction for durable, rigid fixture support
• UL listed and RoHS compliant

Compatibility

Designed as an OEM-style replacement cover for use with standard 4-inch square electrical boxes in residential and commercial lighting retrofit applications.

Installation Notes

Installation is performed by a licensed electrician following applicable NEC requirements. De-energize the circuit at the breaker panel and verify with a voltage tester before handling any wiring or installing the cover. Secure the cover to the square box using appropriate hardware and confirm all mounting tabs are fully engaged before attaching the fixture. Do not exceed the fixture weight rating supported by the box and cover assembly.

Technical Specifications

• Material: Steel
• Opening Style: Round
• Box Compatibility: 4-inch square
• Raised Depth: 0.625 inches
• Mounting Tabs: 8-32 threaded
• Misalignment Compensation: Up to 0.5 inches
• Weight: 0.235 pounds
• Certifications: UL Listed, RoHS Compliant
• Sold As: Each

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 54C3-5/8-UPC
