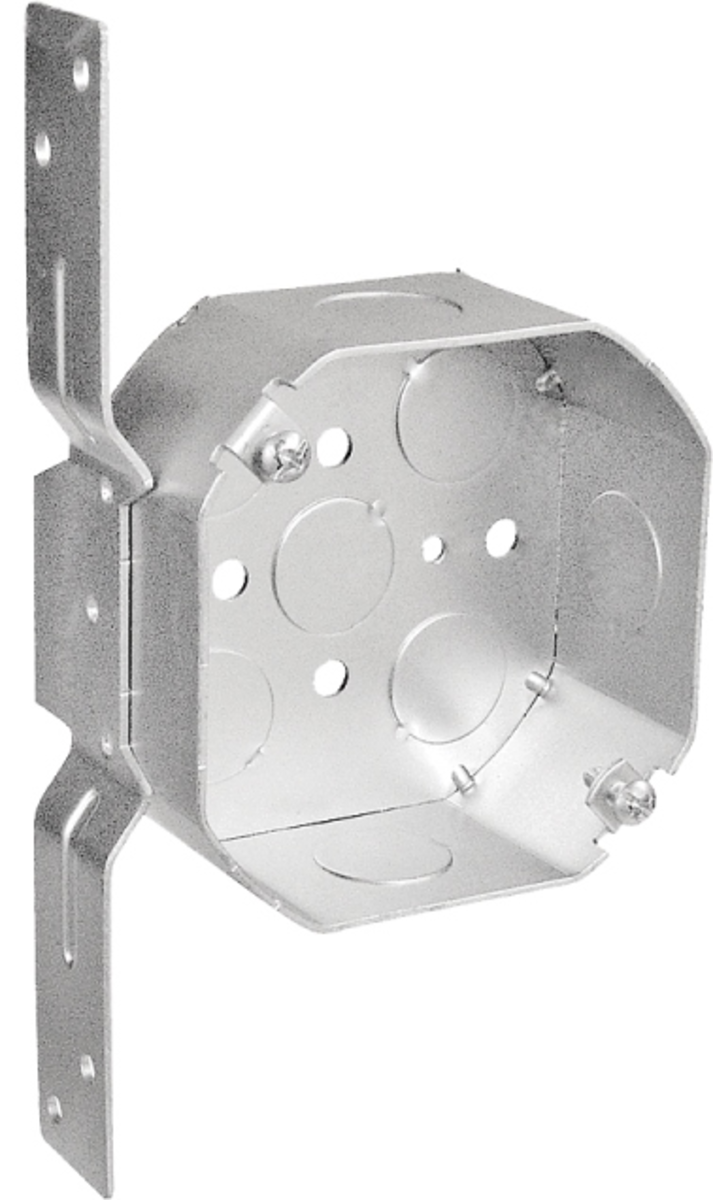

Southwire 54151-F 4 inches octagon bracketed box 1-1/2 inches deep drawn w/conduit KO's and fixture ears 3-1/2 inches O.C.

Product Description

The SOUTHWIRE 54151-F is a 4-inch octagon bracketed electrical box, 1-1/2 inches deep, constructed from galvanized steel. This drawn box features combination knockouts for wiring flexibility and fixture ears spaced 3-1/2 inches on center, suitable for various electrical installations. It is designed with F - Flat Vertical brackets and includes combo-head screws for mounting. It is UL, CUL, and RoHS Compliant.

• Combo-head fixture/cover mounting screws facilitate installation.
• Combination knockouts provide enhanced wiring flexibility.
• F - Flat Vertical brackets ensure secure mounting.

Product Highlights

UL, CUL, and RoHS Compliant galvanized steel octagon box with versatile knockouts and fixture ears.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 54151-F

Technical Specifications

• Manufacturer Part Number: 54151-F
• UPC: 785592982032
• Depth: 1.5 inch
• Width: 4.3 inch
• Material: Galvanized Steel
• Cubic Capacity: 14.0 (229.5) cubic inches
• Side Knockouts: (2) 1/2", (1) 3/4"
• Color: Silver
• Certifications: UL, CUL, RoHS Compliant
• Bracket Type: F - Flat Vertical
• Fixture Ears Spacing: 3.5 inches O.C.
