Southwire 533 TOPAZ-LTG 1 Rigid Straps - One Hole

Product Description

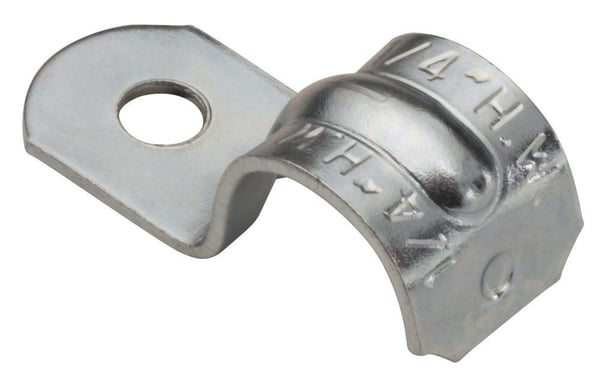

The Southwire 533 is a one-hole snap-on rigid conduit strap designed for securing IMC and rigid conduit. This strap is made from steel and features a zinc-plated finish for enhanced durability. It measures two point five seven inches in length and zero point eight seven five inches in width. This conduit strap is great for both indoor and outdoor applications.

• One-hole snap-on design
• Durable zinc-plated steel material
• Supports both IMC and rigid conduit

Product Highlights

This conduit strap is easy to install and offers a strong support for various applications.

Product Information

Standard Information

• Manufacturer: Southwire Company
• UPC: 75133815070

Technical Specifications

• Application: For use to secure rigid/IMC conduit to wood, masonry or where greater load bearing is required, indoor and outdoor applications
• Dimensions: 2.57 in L x 0.875 in W
• Finish: Zinc Plated
• Manufacturer Part Number: 533
• Material: Steel
• Size: 1 in
• Standards/Approvals: UL 514B, UL File No. E170258, Federal Specification No. A-A-50553, NEMA/ANSI FB-1, Federal Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D
• Suitable For Use With: IMC/Rigid Conduit
• Type: 1-Hole Snap-On
