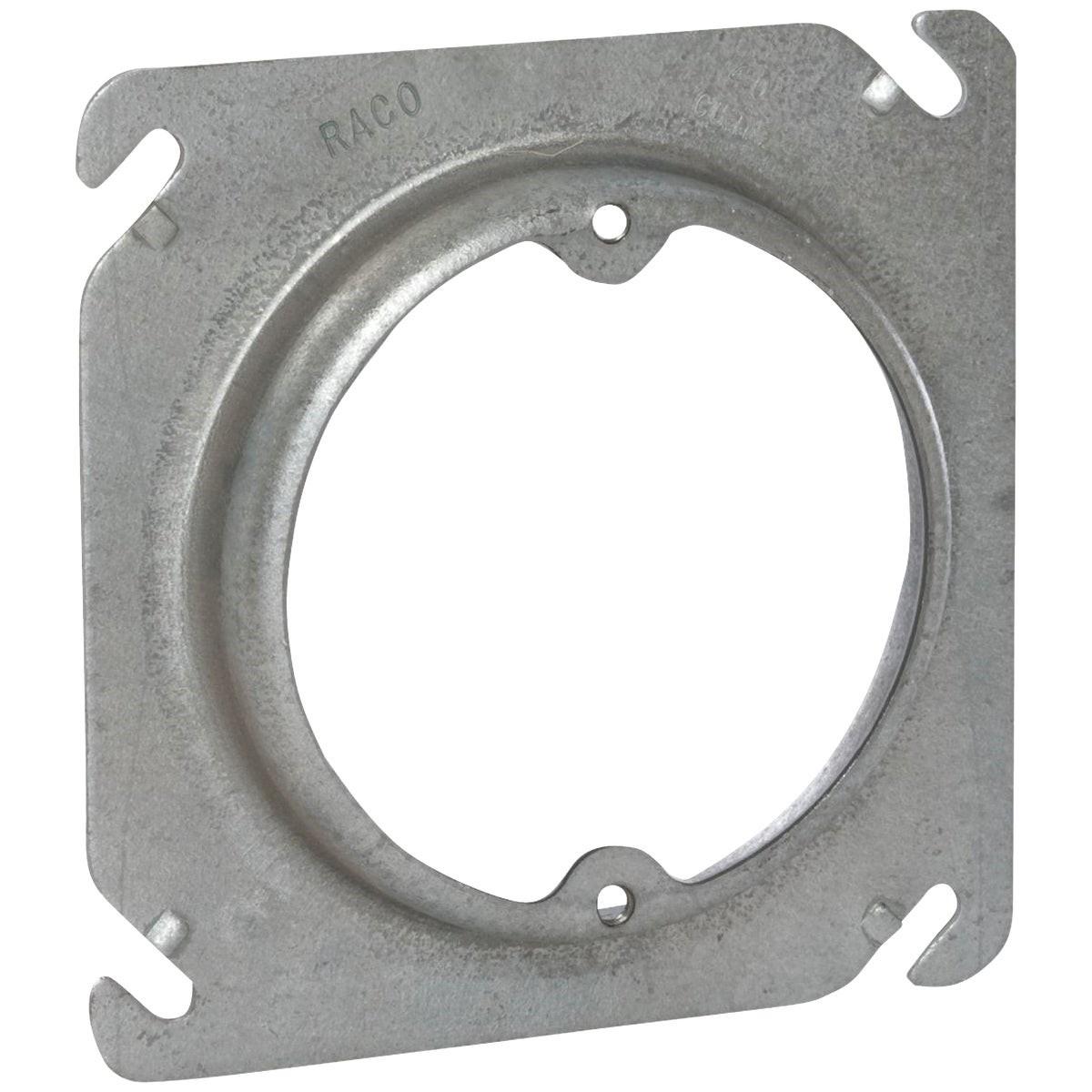

Southwire 52C3-5/8-UPC 4x4 Square Raised Cover Fixture Ring

Product Description

The SOUTHWIRE 52C3-5/8-UPC is a round fixture ring designed to convert a 4-inch by 4-inch square electrical box into a 3-1/2-inch round opening for mounting light fixtures in walls and ceilings. The ring features 8-32 threaded mounting tabs that support direct fixture attachment during lighting retrofit work. Angled slots on the cover compensate for up to 1/2 inch of box misalignment on upright framing members, reducing the need for repositioning during rough-in corrections. The cover is UL listed and RoHS compliant, meeting standard requirements for residential and light commercial electrical installations. Licensed electricians and experienced DIYers working on fixture upgrades or box conversions will find this ring straightforward to install with common hand tools.

This fixture ring is suited for retrofit and new-construction lighting applications where a standard 4-inch square box needs to be adapted for a round-opening fixture mount. Typical scenarios include ceiling fixture replacements, wall sconce installs, and lighting upgrades where the existing box is a 4-inch square style. The 2-3/4-inch on-center hole spacing and raised profile accommodate standard fixture canopies without additional adapters.

Key Features

• Converts 4-inch by 4-inch square box to a 3-1/2-inch round opening
• 8-32 threaded mounting tabs for secure fixture attachment
• Angled slots compensate for up to 1/2 inch of box misalignment on upright framing
• 2-3/4-inch on-center hole spacing fits standard fixture canopies
• UL listed and RoHS compliant

Compatibility

Designed as an OEM-style replacement and retrofit cover for standard 4-inch by 4-inch square electrical boxes requiring a 3-1/2-inch round fixture opening.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements. Always shut off circuit power at the breaker panel and verify the circuit is de-energized before beginning work. Secure the ring to the square box using the provided threaded tabs and verify alignment before attaching the fixture. Do not overtighten mounting hardware, as this may distort the cover or damage the threaded tabs.

Technical Specifications

• Box Size: 4 inches x 4 inches square
• Round Opening: 3-1/2 inches
• On-Center Spacing: 2-3/4 inches
• Misalignment Compensation: Up to 1/2 inch
• Mounting Tabs: 8-32 threaded
• Weight: 0.274 pounds
• Certifications: UL Listed, RoHS Compliant
• Sold As: Each

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 52C3-5/8-UPC
