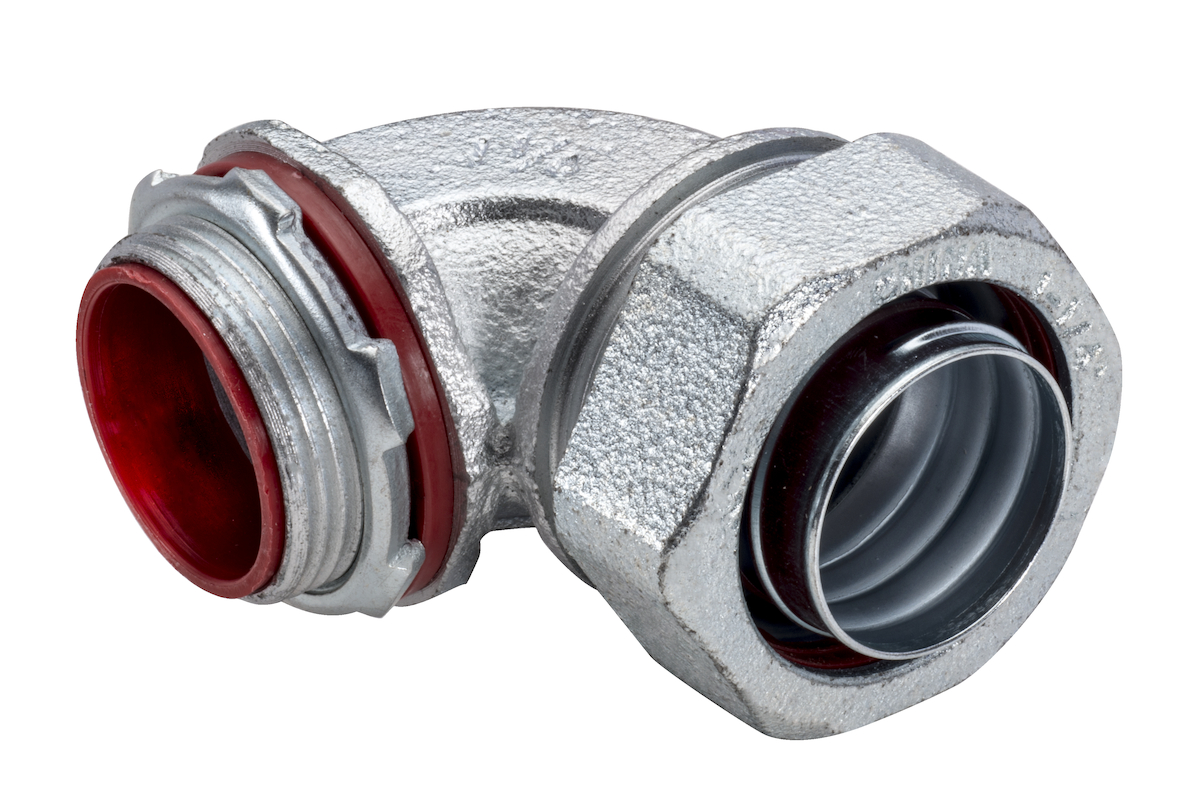

Southwire 497S 2-1/2 inches 90deg Lt Mal Conn

Product Description

The SOUTHWIRE 497S is a 2-1/2" 90DEG LT MAL CONN suitable for commercial, industrial, and residential fittings. It is liquidtight, raintight, and oiltight, making it suitable for wet locations. The insulated throat protects conductors from abrasion damage, and the zinc electro plated finish ensures excellent durability. Use with metallic and non-metallic type B liquidtight conduit.

• Liquidtight, raintight, oiltight
• Suitable for wet location use
• Tapered threaded male hub NPT
• Insulated throat protects conductors from abrasion damage
• Compact slim diameter with small turning radius
• Zinc electro plated for excellent durability

Product Highlights

This 90 degree angle, metallic liquidtight connector is for use with metallic and non-metallic type B liquidtight conduit. It features an insulated throat to prevent conductor abrasion.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 497S

Technical Specifications

• UPC #: 751338337206
• Suitable For Use With: Ground and Seal Liquid Tight Conduit to Box/Enclosure
• Trade Size: 2-1/2 in
• Type: Component
• Application: Hazardous and Wet Locations
• Standard & Approvals: UL 514B, UL/cULus File No. E148716, CSA Certified, Federal Specification No. A-A-50552, NEMA/ANSI FB-1, Military Specification No. W-F-406D, W-F-406E, W-F-408D, W-S-610D, NEC 501-4(b), 502-4(a) (2) Class I Div 2, Class II Div 1 2, Class III Div 1 2
• Angle: 90 deg
• Catalog ID: SWI497S
• Finish: Zinc Plated
• Material: Malleable Iron
• Includes: Steel Ferrule and Locknut
