Product Description

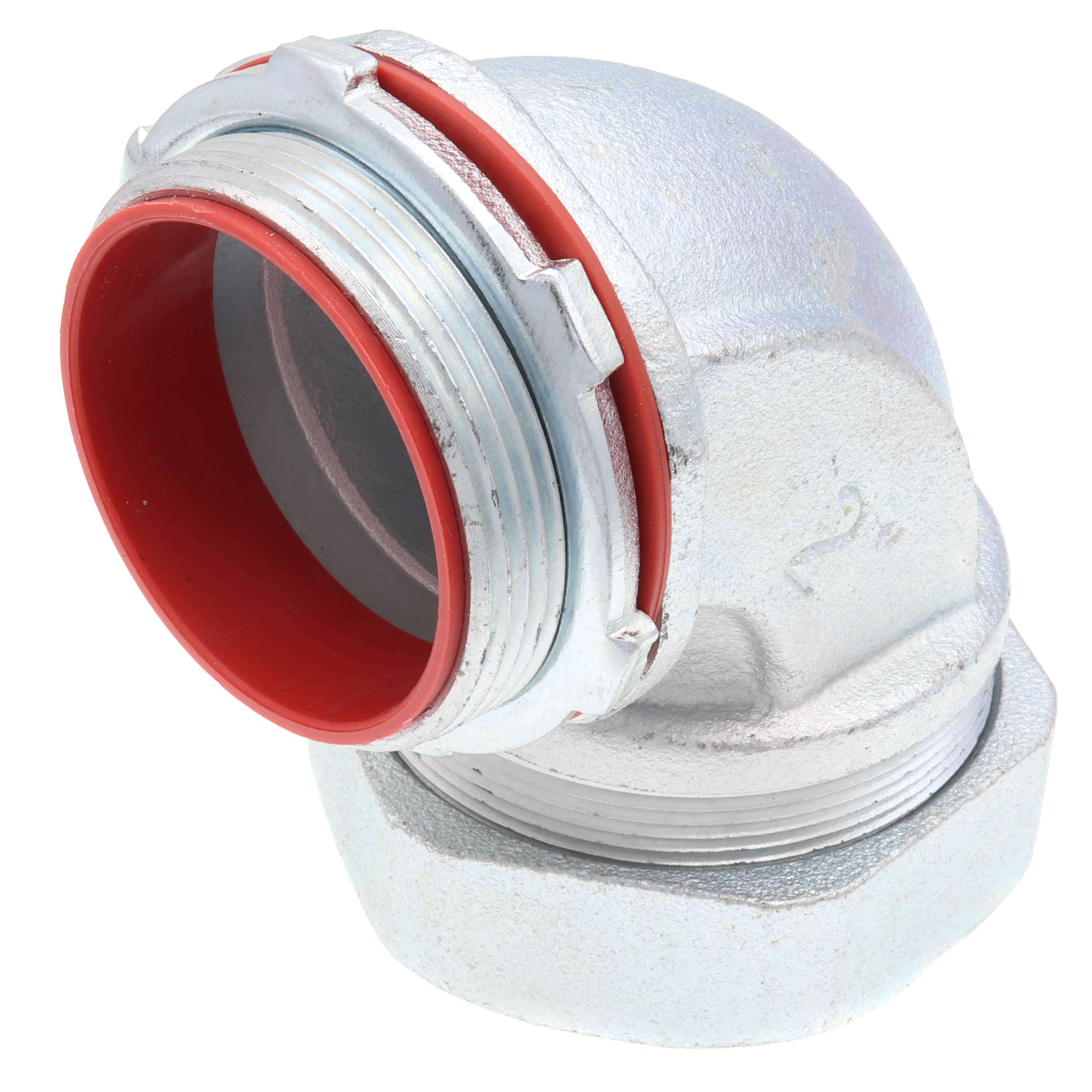

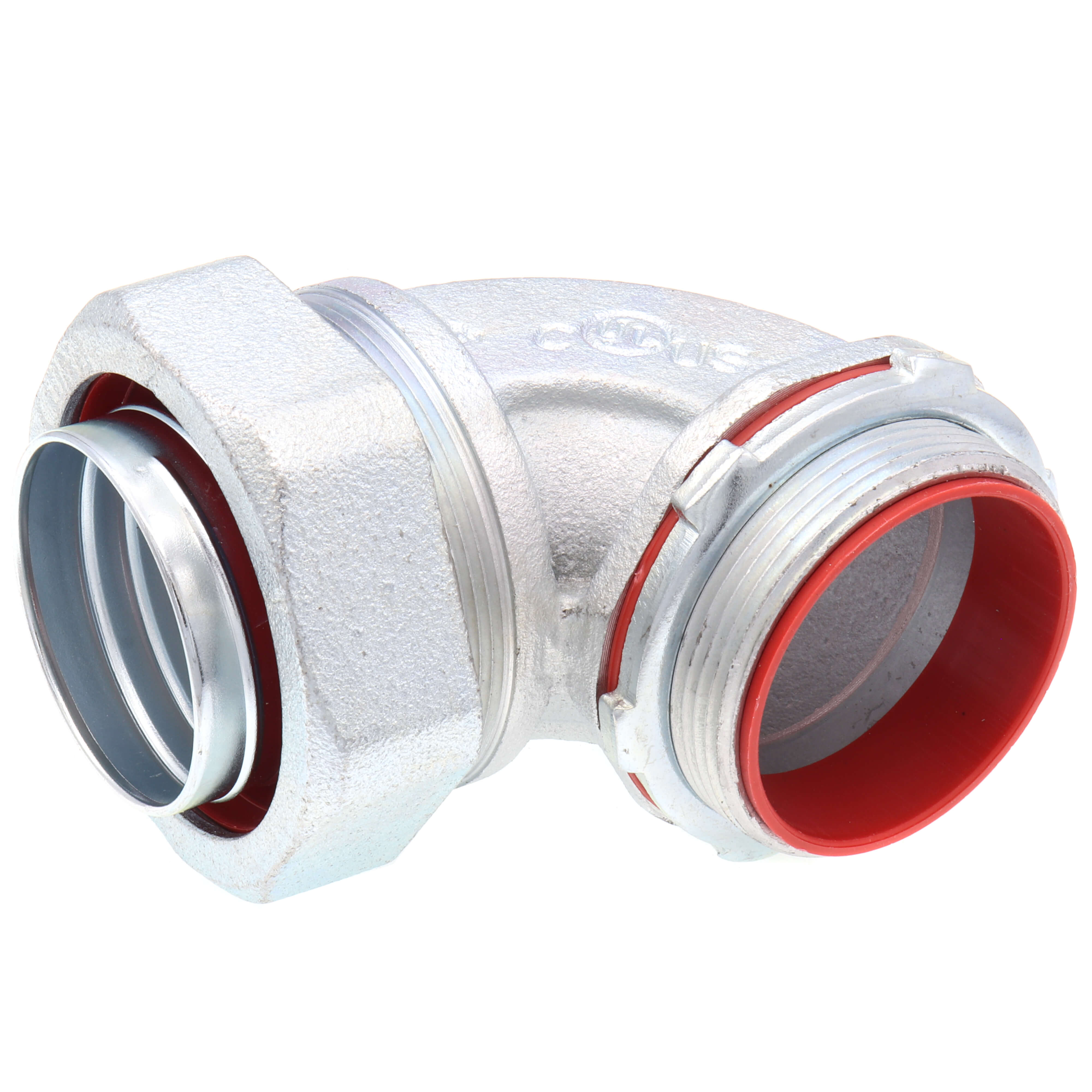

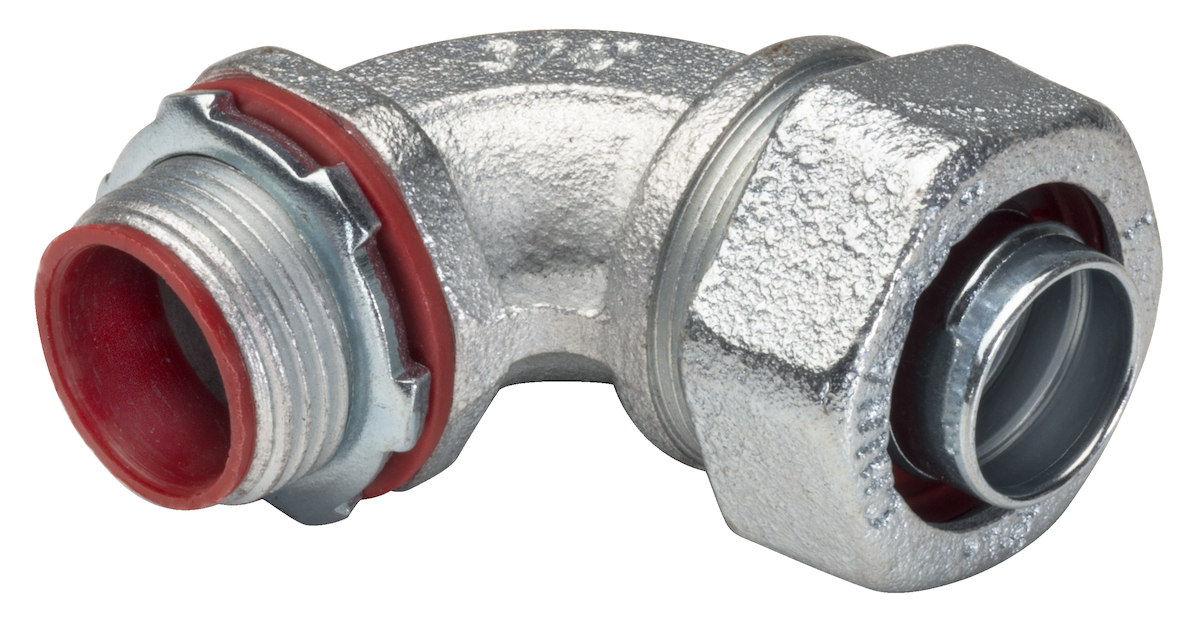

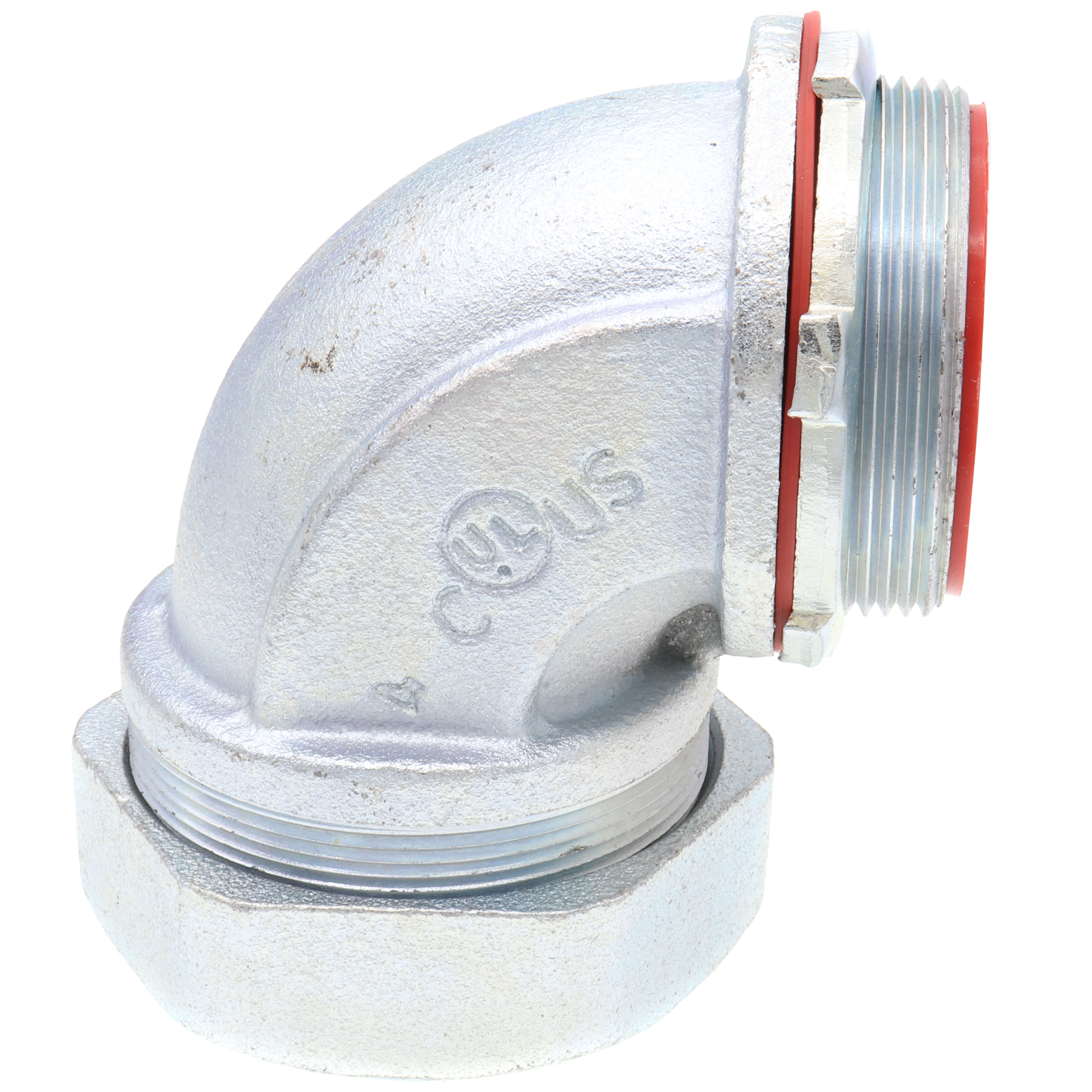

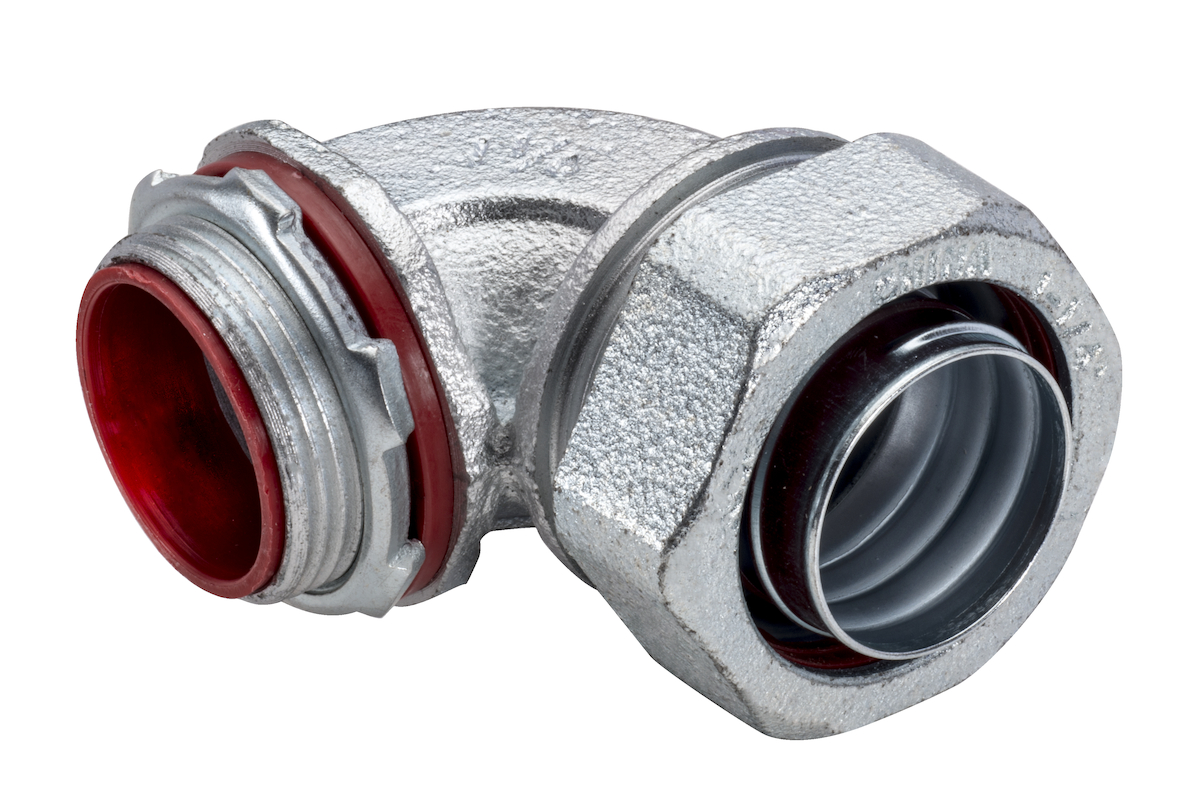

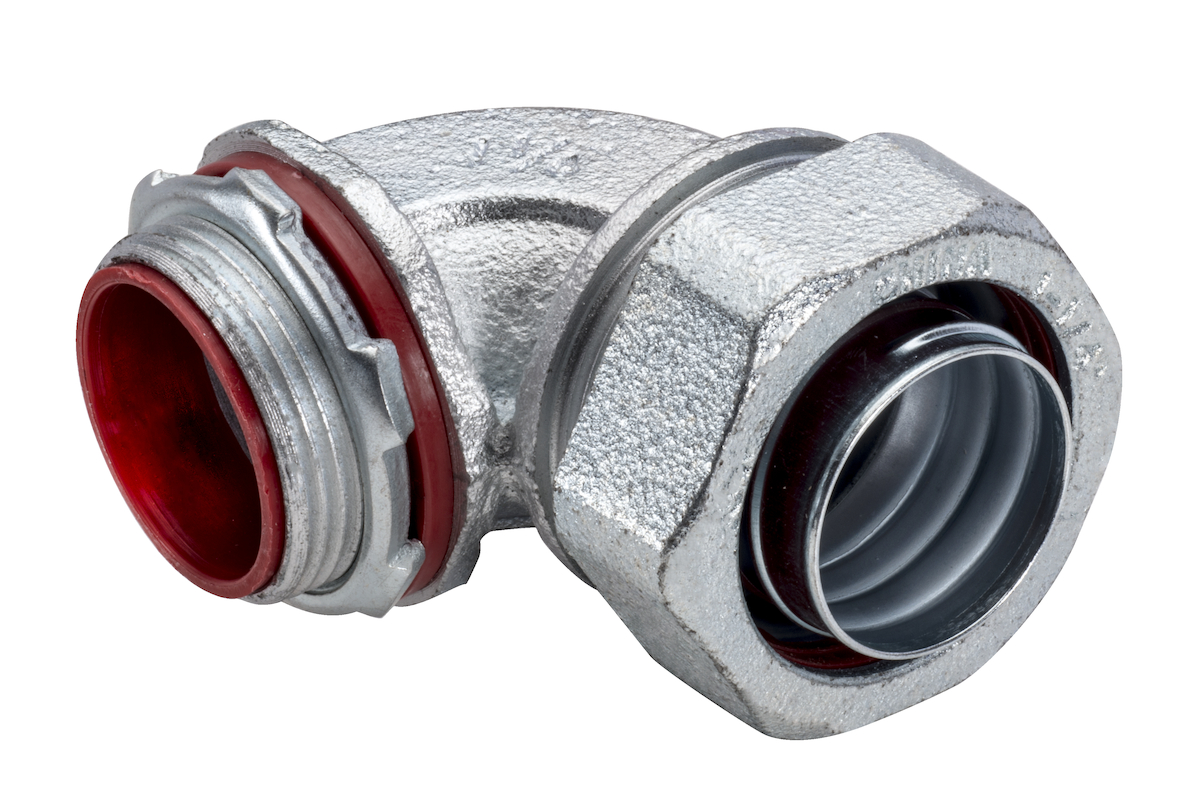

The SOUTHWIRE 496S is a 2" 90-degree liquidtight connector with an insulated throat. Constructed with a malleable iron body and compression nut, it secures, grounds, and seals liquidtight conduit to a box or enclosure. It is suitable for wet locations and offers excellent durability with zinc electroplating.
- Insulated throat protects conductors from insulation damage.
- Liquidtight, raintight, and oiltight.
- Suitable for use in hazardous locations under NEC 501-4(b), 502-4(a) Class 1 Div.2, Class II Div.1 and 2, and Class III Div.1.
Product Highlights
This liquidtight connector features a tapered threaded male hub NPT and a compact slim diameter with a small turning radius.
Product Information
Standard Information
-
Brand: SOUTHWIRE
-
Manufacturer Part Number: 496S
-
Country of Origin: United States
Technical Specifications
-
Approval: UL, CSA
-
Manufacturer Name: Southwire
-
Material: Malleable Iron
-
Product UPC: 751338337107
-
Throat Type: Insulated
-
Type: 90 Degree
-
Used On: Liquidtight Conduit
-
Size: 2"
-
Angle: 90°
-
Product Type: Elbow
-
Finish: Zinc Plated
-
Suitable For Use With: Ground and Seal Liquid Tight Conduit
-
Trade Size: 2 in
-
Application: Hazardous and Wet Location Applications
-
Standard & Approvals: UL 514B/E170258, E148716, US Federal Specification A-A-50552, CSA Certified, NEMA/ANSI FB-1, Military Specification, W-F-406D/W-F-406E/W-F-408D/W-S-610D
-
Mounting Style: Through-Hole
-
Conduit Type: Liquid-Tight
-
Flexibility: Rigid
-
Country of Origin: United States
