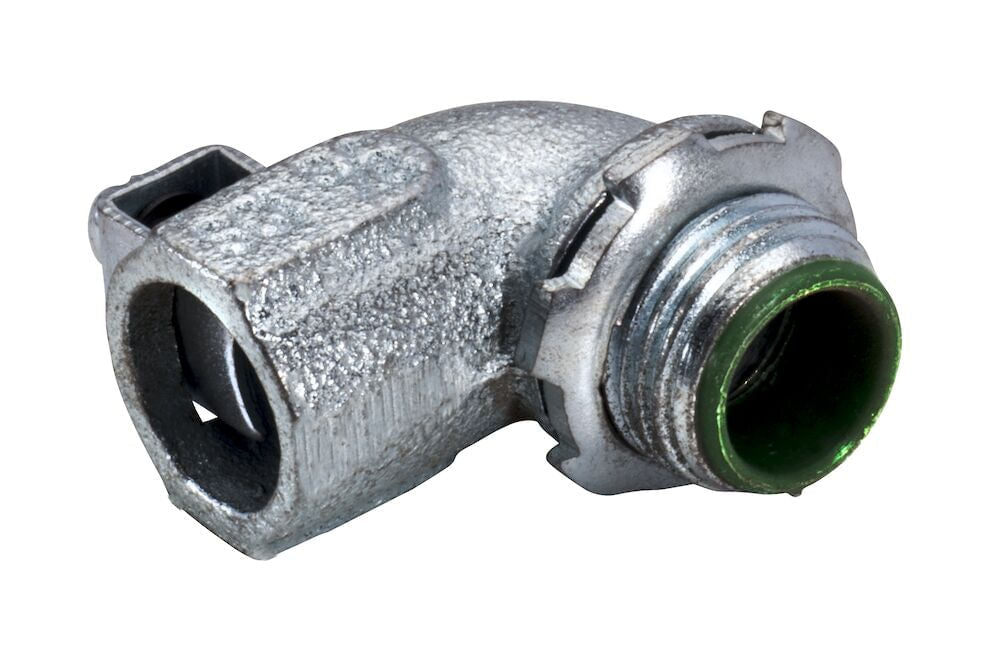

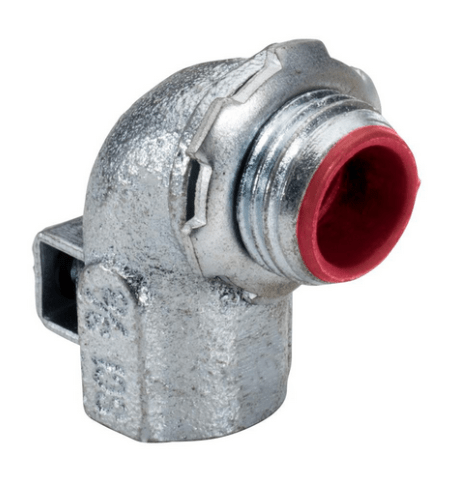

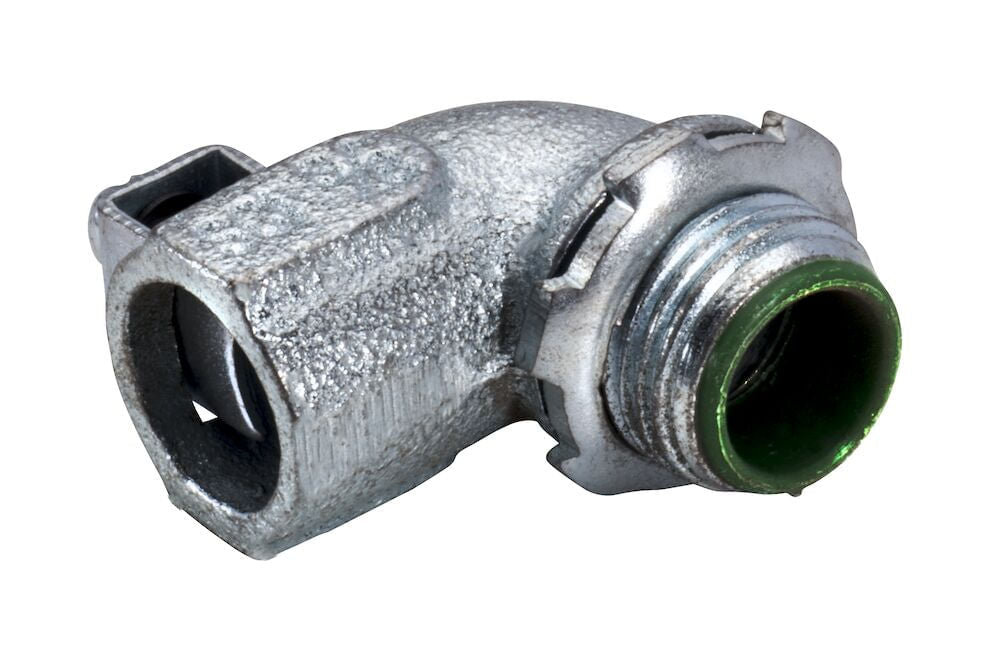

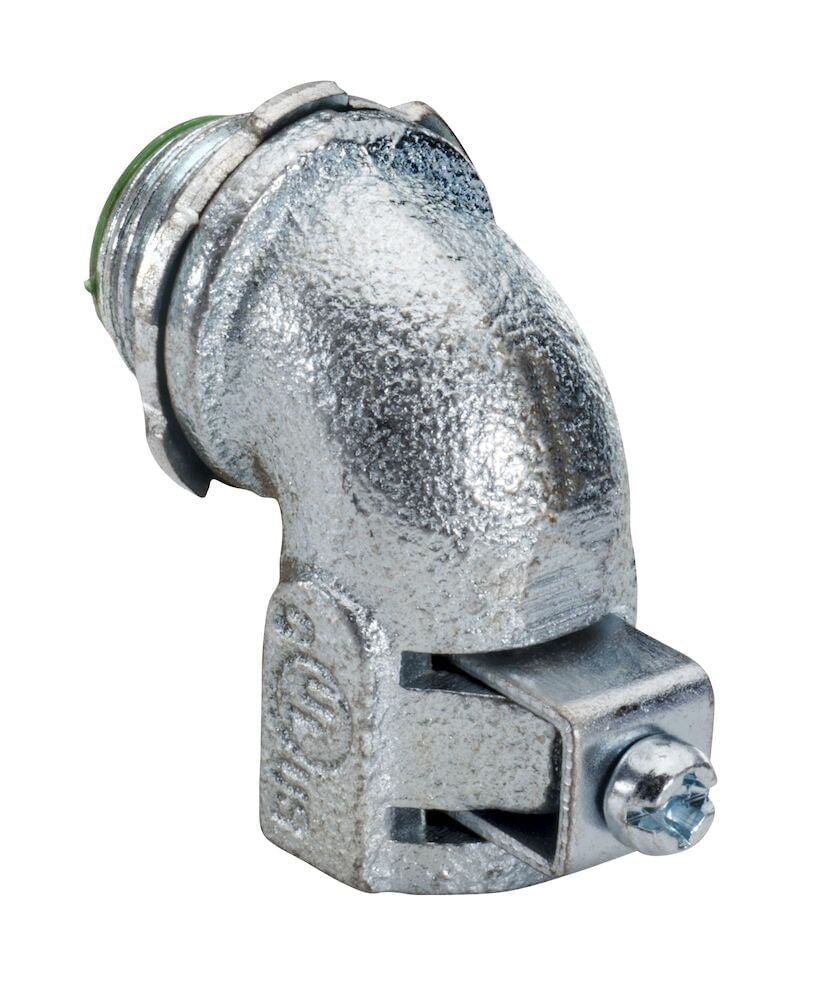

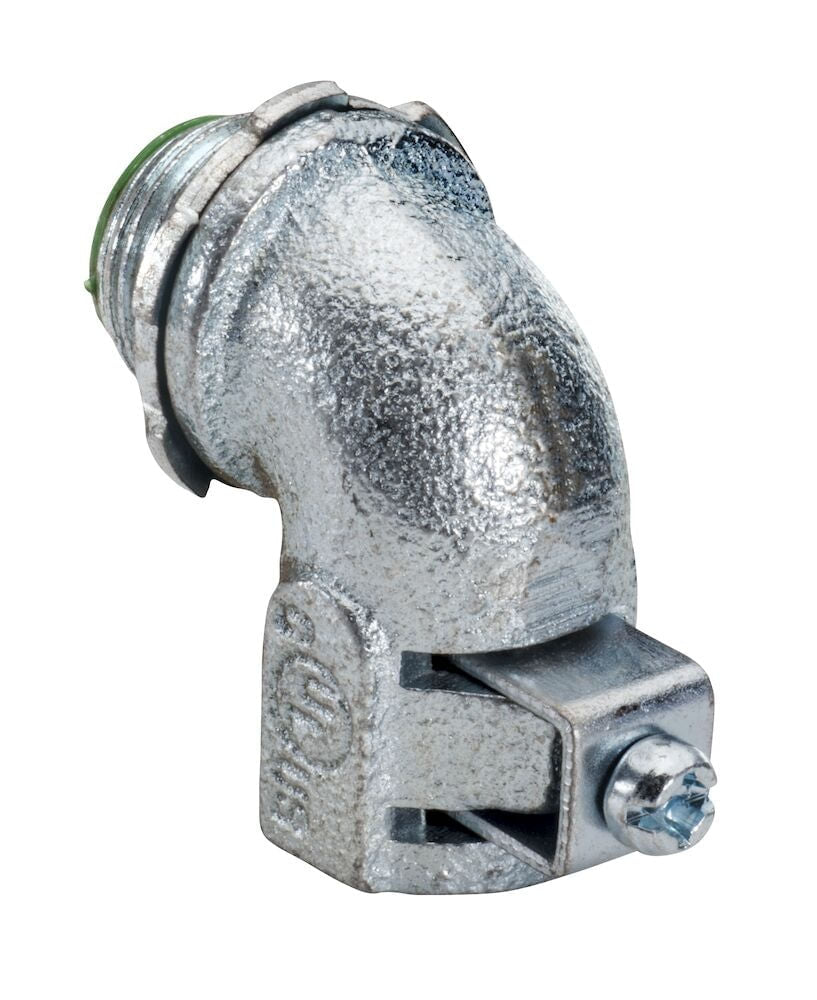

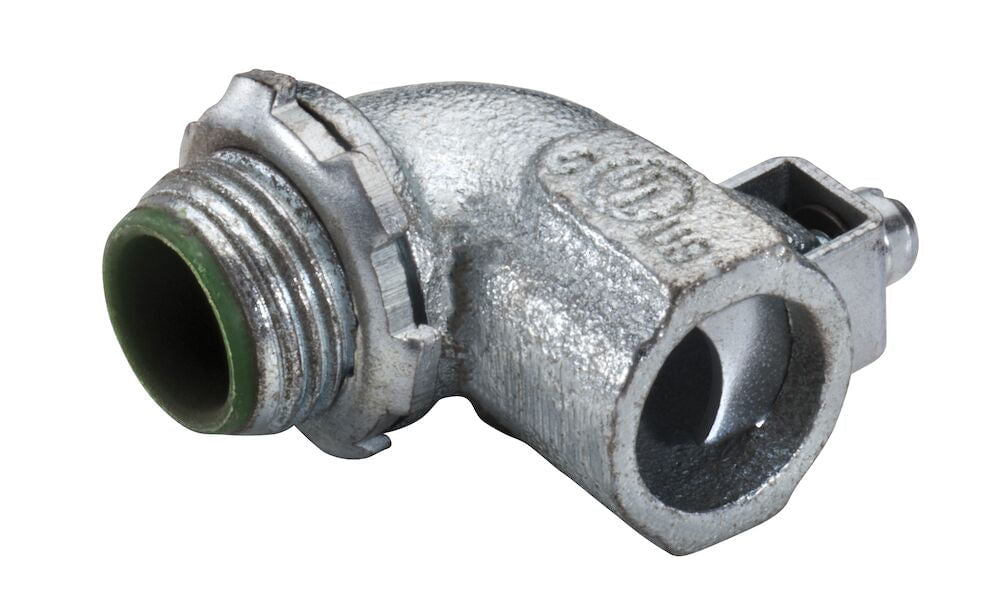

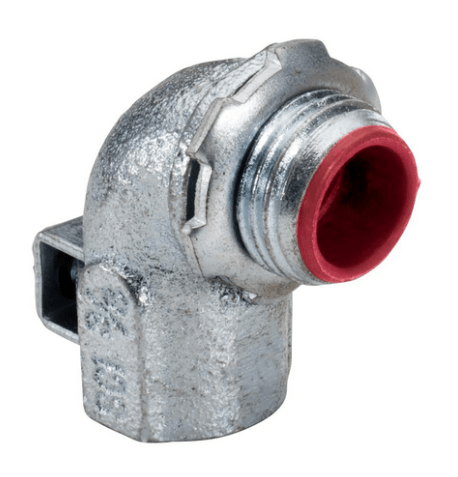

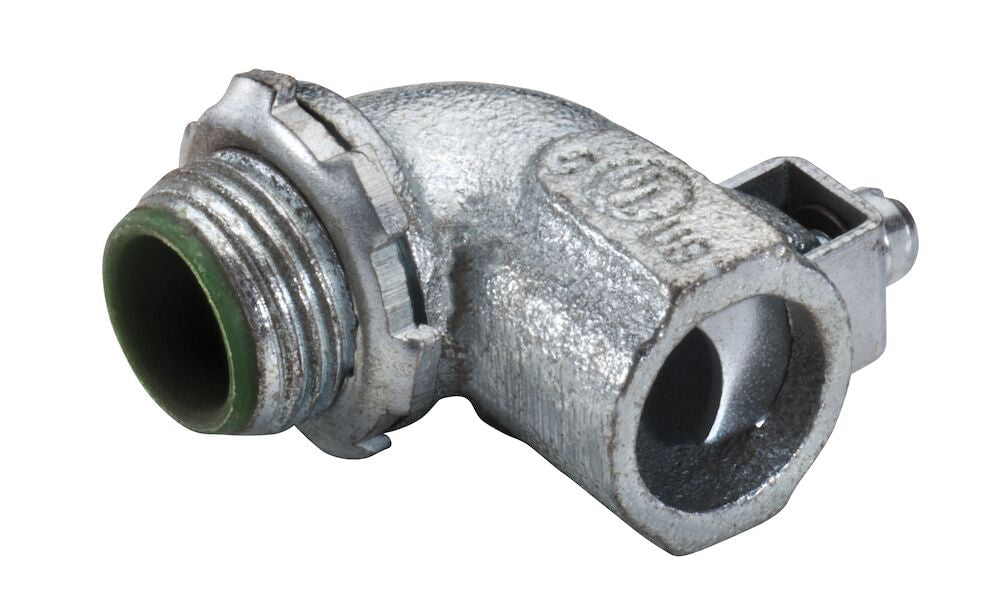

Southwire 493TBS Topaz Top Bite Saddle Connector (1 Inch, 90 Degree)

Product Description

The Southwire 493TBS is a 90-degree top-bite saddle connector designed for 1 inch conduit runs. It has an insulated throat and one-piece malleable construction to secure conduit or cable to round surfaces. The connector uses dual gripping saddle clamps that ride on the screw for easier installation and includes male NPSM hub threads and a tri-combo head screw for threaded hub connections.

• Insulated throat and 90-degree top-bite design for secure connection to 1 inch conduit
• One-piece malleable construction with dual gripping saddle clamps that ride on the screw
• Male NPSM hub threads and tri-combo head screw for standard threaded hub connections

Product Highlights

90-degree top-bite saddle connector for 1 inch conduit with insulated throat, malleable construction, dual gripping clamps, and male NPSM hub threads.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 493TBS

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 493TBS
• Series: Topaz
• Connector Type: Top-bite saddle connector
• Orientation: 90 degree
• Connector Size: 1 inch
• Construction: One-piece malleable construction
• Throat: Insulated throat
• Hub Threads: Male NPSM
• Clamps: Dual gripping saddle clamps
• Screw Head: Tri-combo head screw
• UPC: 751338851894
• GTIN: 751338851894
• Category: Commercial, Industrial, Residential Fittings; PVC/EMT Conduit Fittings
• SKU: SOUTHWIRE-493TBS
• Alternate SKU: 493TBS
• Product Type: Top-bite saddle connector for conduit
• Application: Securing or tapping conduit/cable to round surfaces
• Packaging Options: Single unit; case of 5
