Southwire 483 Rigid/EMT Conduit Clamp Back 1 Inch (250 per Case)

Product Description

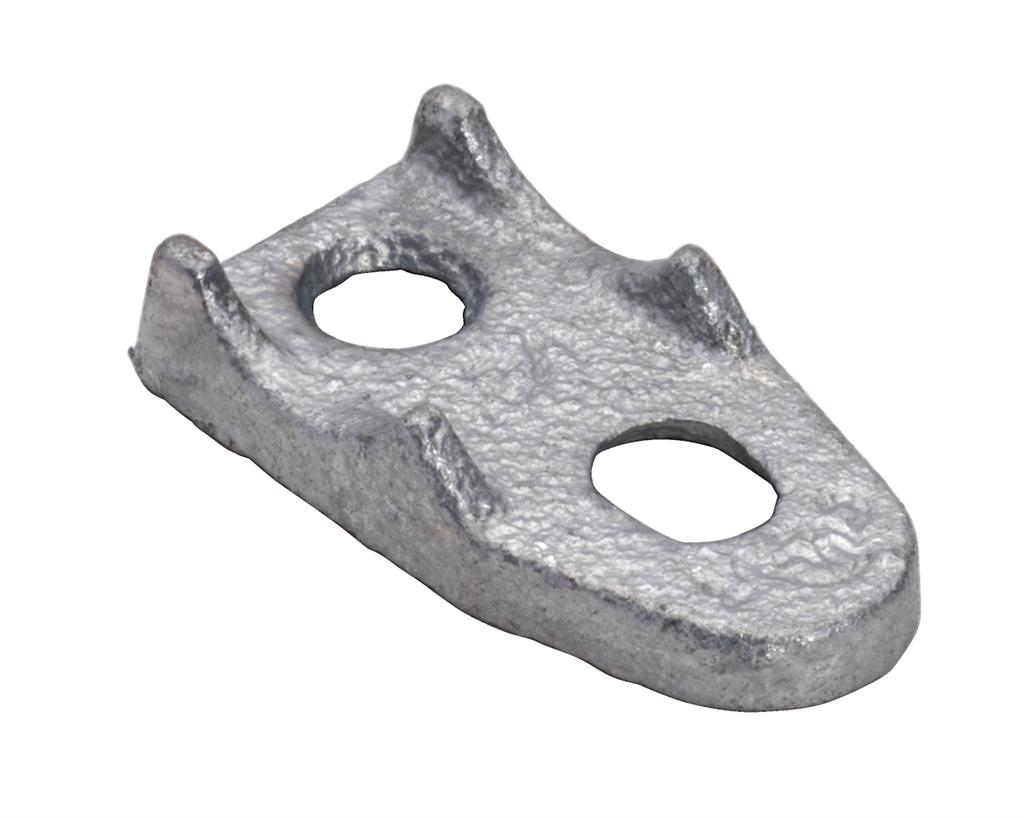

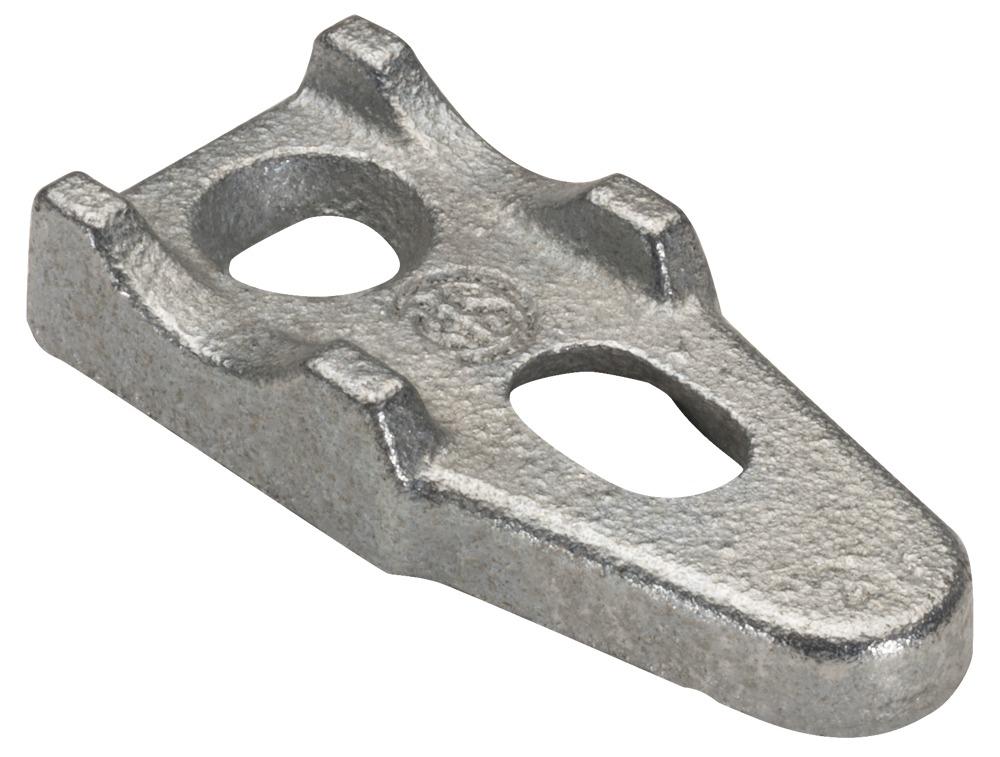

Southwire 483 is a 1-inch clamp back constructed of zinc-plated malleable iron that provides spacing between the mounting surface and rigid or EMT conduit. The clamp back measures 2.94 inches long and 1.25 inches wide, carries UL approval, and is compatible with rigid, EMT, and IMC conduit runs. It is intended for use with malleable or aluminum straps in raceway support and box positioning applications.

• Zinc-plated malleable iron construction for corrosion resistance
• Provides spacing between mounting surface and rigid/EMT/IMC conduit for raceway support and box positioning
• UL approved; trade size 1 inch; overall dimensions 2.94 in L x 1.25 in W x 0.56 in H

Product Highlights

1 in clamp back for rigid/EMT/IMC conduit; zinc-plated malleable iron; UL approved; dimensions 2.94 x 1.25 x 0.56 in

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 483

Technical Specifications

• Brand: Southwire
• MPN: 483
• Product Name: Rigid/EMT Conduit Clamp Back
• Category: Raceway Support & Hanging, Box Positioning
• Material: Malleable iron
• Finish: Zinc plated
• Size: 1 in
• Dimensions: 2.94 in L x 1.25 in W x 0.56 in H
• Compatible With: Rigid conduit, EMT conduit, IMC conduit
• Intended Use: For use with malleable or aluminum straps; raceway support and box positioning
• Approvals/Certifications: UL (UL 514B; UL File Nos. E148716/E174011 noted in product records)
• Standard Package: 250 per Case
• UPC: 751338145306
