Southwire 47190101 thermostat cable, general purpose 150 volts 18 sol 12/c 250 ft

Product Description

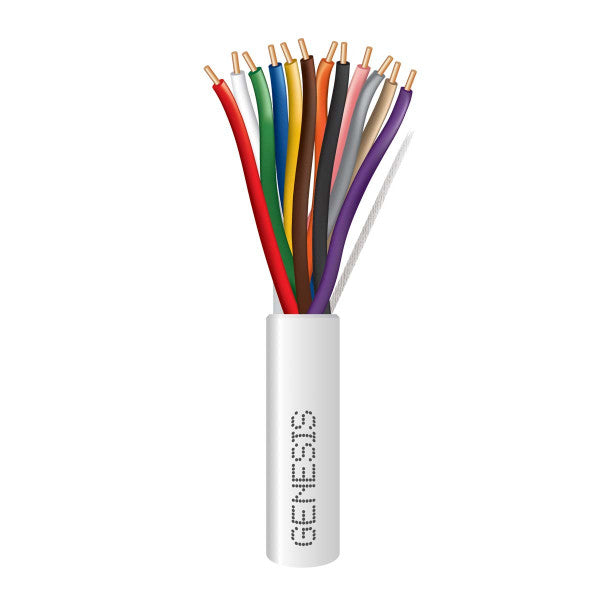

The Southwire 47190101 Genesis General Purpose Rated Thermostat Cable is designed for thermostat and HVAC control wiring applications. This 18 AWG 12-conductor solid bare copper cable features polypropylene insulation and a PVC jacket. It is suitable for installation in metal raceways, solid bottom metal cable trays, and within buildings, including areas exposed to sunlight. Rated for 150 Volts and temperatures from -20 °C to 75 °C, it meets UL 1685 and UL 13 Type CL2 standards.

• Bare Copper conductors provide excellent conductivity and low voltage drop.
• Features polypropylene insulation and a durable PVC jacket.
• Rated for 150 Volts and -20 °C to 75 °C, meeting UL 1685 and UL 13 Type CL2 standards.

Product Highlights

General purpose rated thermostat cable with sunlight resistance and UL 13 Type CL2 compliance.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 47190101

Technical Specifications

• Brand: Southwire
• Manufacturer: Genesis Cable Systems
• AWG Size: 18 AWG
• Number of Conductors: 12
• Stranding: Solid
• Shielding: Unshielded
• Nominal Total Weight: 71 lbs/1000ft
• Insulation Material: Polypropylene
• Jacket Material: PVC
• Voltage Rating: 150 Volts
• Temperature Rating: -20 °C to 75 °C
• Packaging: 250 FT REEL
• Application: Thermostat and HVAC Control Wiring
• Cable Type: Non-Plenum
