Southwire 47140301 18 sol 6/c cu t-stat cl2 250 ft

Product Description

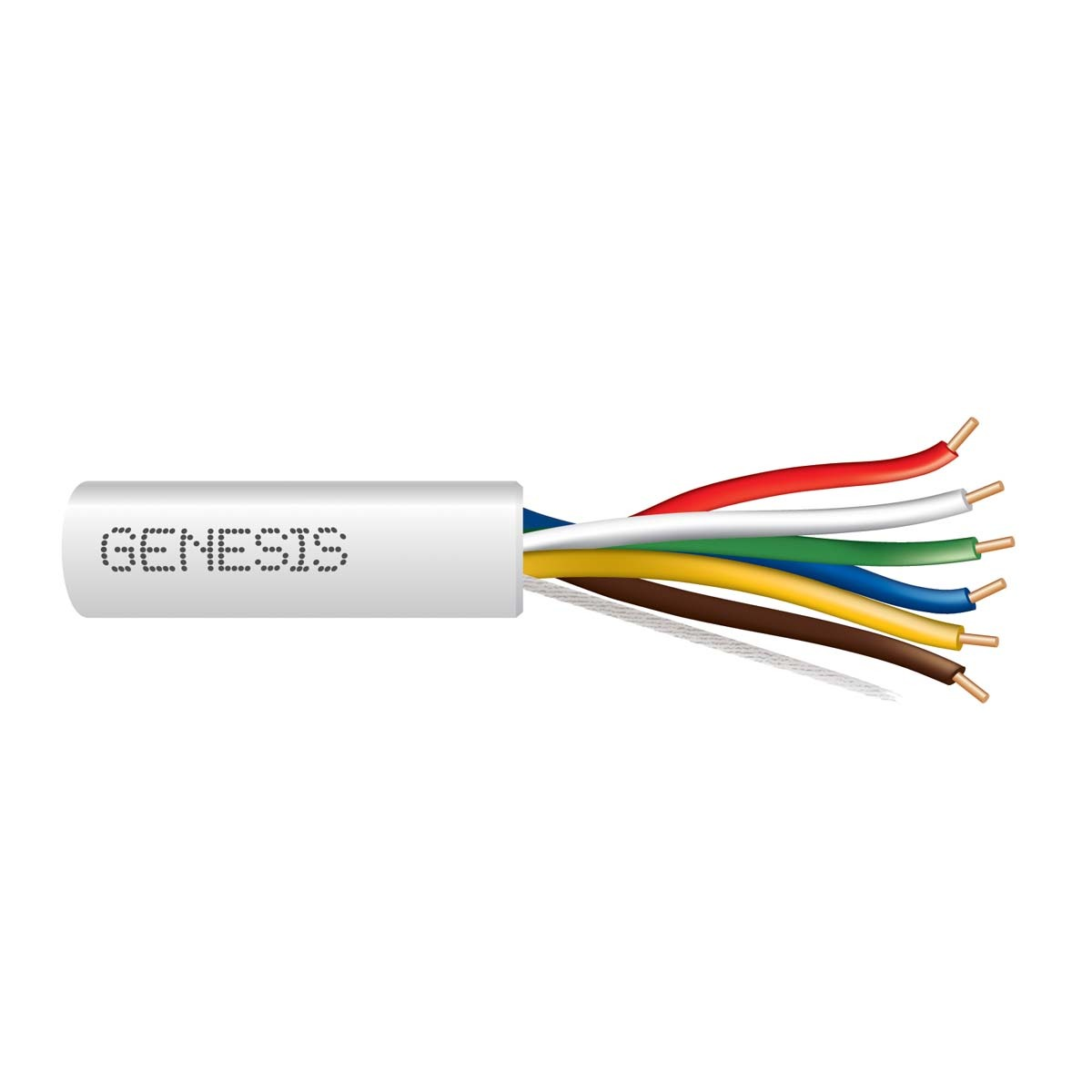

The SOUTHWIRE 47140301 Genesis General Purpose Rated Thermostat Cable is an 18 AWG, 6-conductor, solid bare copper cable designed for low voltage applications. It features polypropylene insulation and a durable PVC jacket, suitable for installation in metal raceways and solid bottom metal cable trays. Rated for 150 Volts and temperatures from -20 °C to 75 °C, this unshielded cable is sunlight resistant and REACH/RoHS compliant, making it ideal for general purpose wiring within buildings.

• Bare Copper conductors for excellent conductivity and low voltage drop.
• Durable rip cord for efficient jacket stripping and removal.
• Sunlight Resistant Rated and REACH/RoHS Compliant.

Product Highlights

18 AWG, 6-conductor solid bare copper thermostat cable with PVC jacket, rated for 150V and -20°C to 75°C.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 47140301

Technical Specifications

• AWG Size: 18 AWG
• Number of Conductors: 6
• Conductor Stranding: Solid
• Shielding Type: Unshielded
• Nominal Total Weight (lbs/1000ft): 37
• Nominal Total Weight (kg/km): 55
• Jacket Color: WHITE
• Conductor Color Code: WHITE/YELLOW/RED/GREEN/BLUE/BROWN
• Packaging Type: 250 FT SPOOL IN A CARTON
• Certifications/Standards: UL 1685 - General Purpose Rated, UL 13 - Power-Limited Circuit Cables, Type CL2, Sunlight Resistant Rated, REACH/RoHS Compliant
• Rated Voltage: 150 Volts
• Rated Temperature Range: -20 °C to 75 °C
