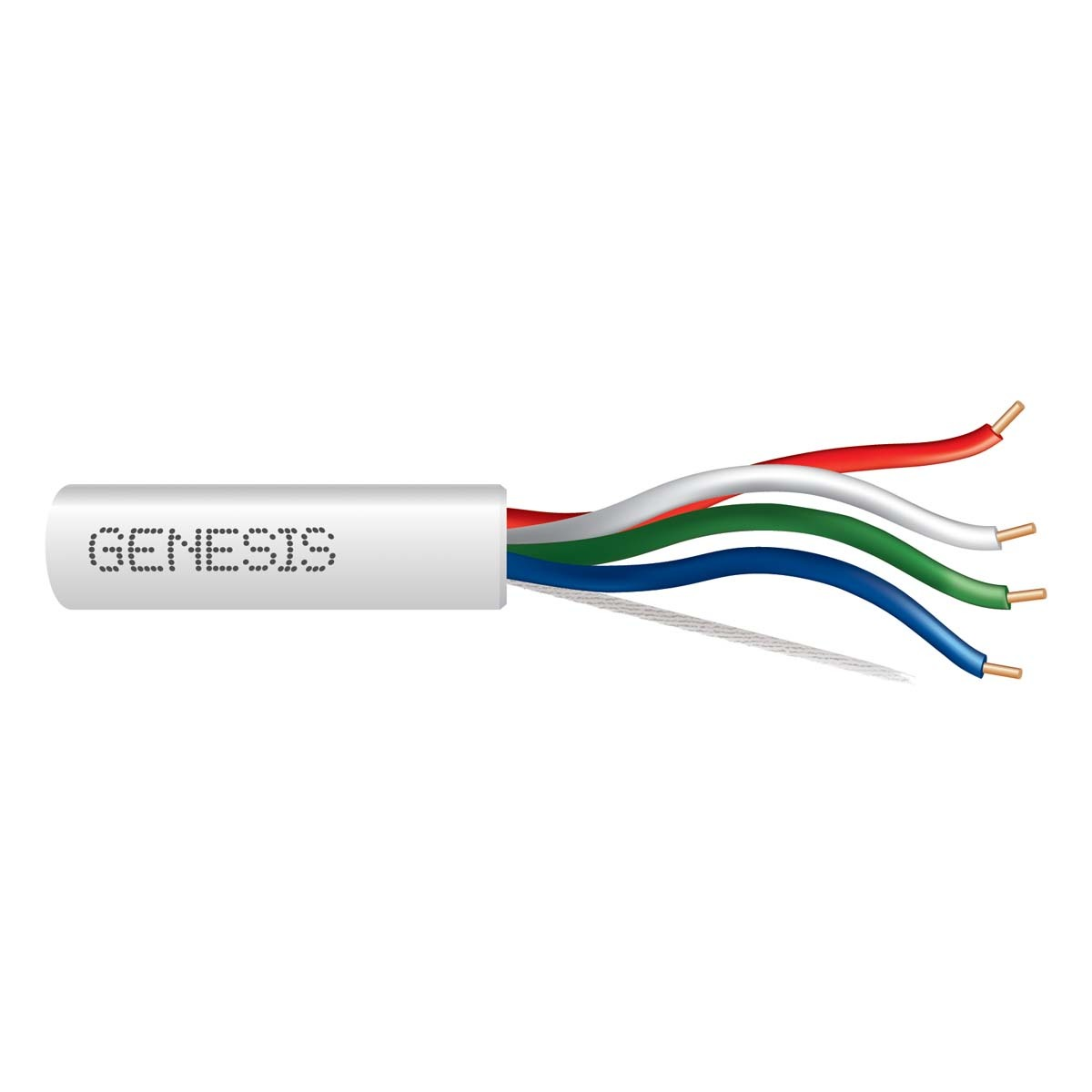

Southwire 47120301 18 sol 4/c cu t-stat cl2 gen 150v 250 ft

Product Description

SOUTHWIRE 47120301 Genesis General Purpose Rated Thermostat Cable is designed for low voltage applications, featuring 18 AWG solid bare copper conductors and polypropylene insulation. This unshielded 4-conductor cable, rated for 150 Volts and an operating temperature range of -20 °C to 75 °C, is suitable for installation in metal raceways and solid bottom metal cable trays. It is sunlight resistant and comes in a 250 FT spool, ideal for thermostat and control wiring within buildings.

• Bare copper conductors ensure excellent conductivity and low voltage drop.
• Durable PVC jacket with a rip cord for efficient stripping and sequential length marking.
• Meets UL 1685 (General Purpose Rated) and UL 13 (Power-Limited Circuit Cables, Type CL2) standards.

Product Highlights

18 AWG 4-conductor solid copper thermostat cable, 150V rated, sunlight resistant, UL compliant.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 47120301

Technical Specifications

• AWG Size: 18 AWG
• Number of Conductors: 4
• Stranding: Solid
• Shielding: Unshielded
• Nominal Weight (per 1000 ft): 25 lb
• Rated Voltage: 150 Volts
• Operating Temperature: -20 °C to 75 °C
• Certifications: UL 1685 - General Purpose Rated, UL 13 - Power-Limited Circuit Cables, Type CL2, Sunlight Resistant Rated, REACH/RoHS Compliant
