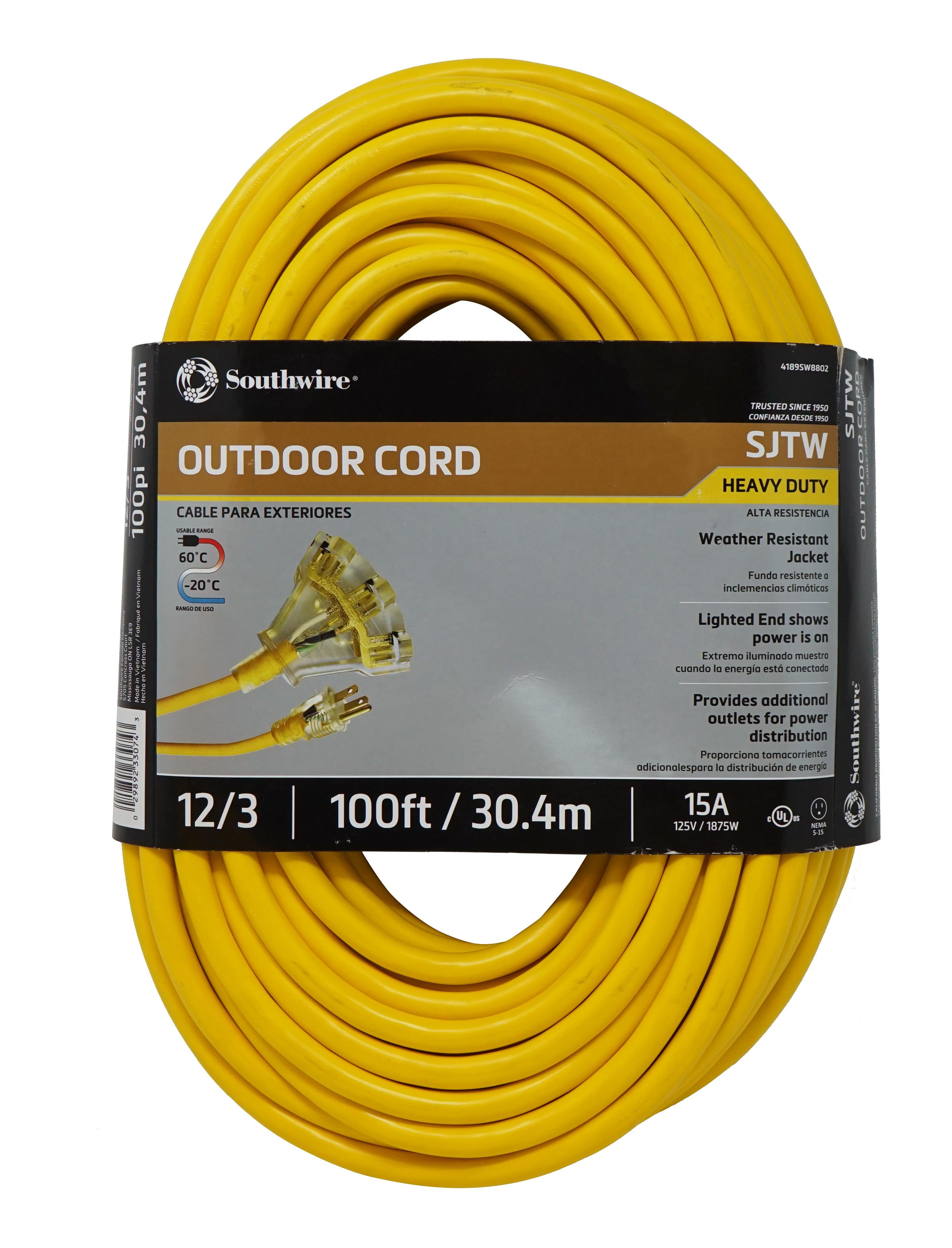

Southwire 4189SW8802 100-Ft. 12/3 SJTW-A 3-Outlet Extension Cord

Product Description

The SOUTHWIRE 4189SW8802 is a 100-Ft. 12/3 SJTW-A extension cord with three outlets. The vinyl jacket resists moisture, abrasion, and prolonged exposure to sunlight. Reinforced blades help prevent accidental bending or breaking. A heavy-duty strain relief protects electrical connections for longer cord life. It is ideal for outdoor applications.

• Hard usage per the national electrical Code rating
• NEMA 5-15R x 3 cord connector configuration

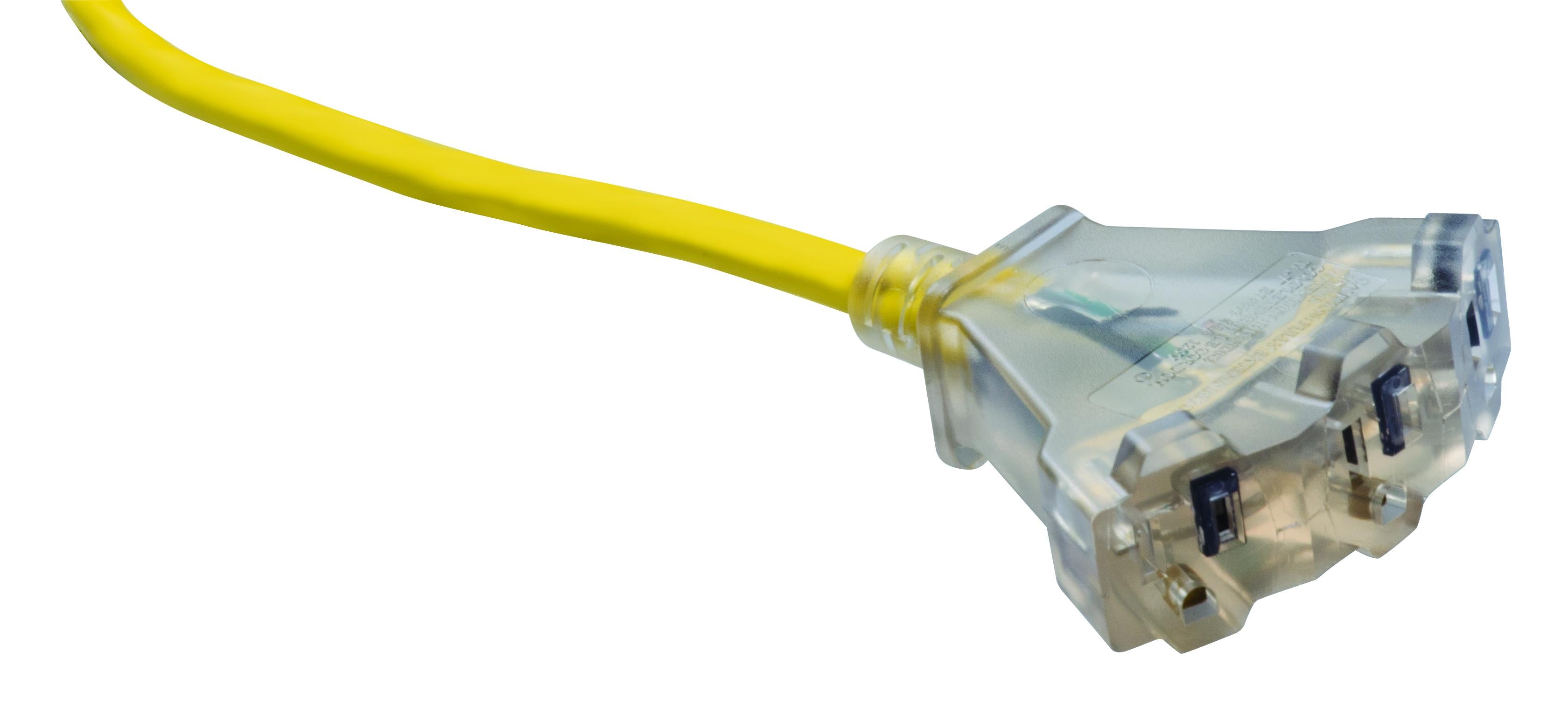

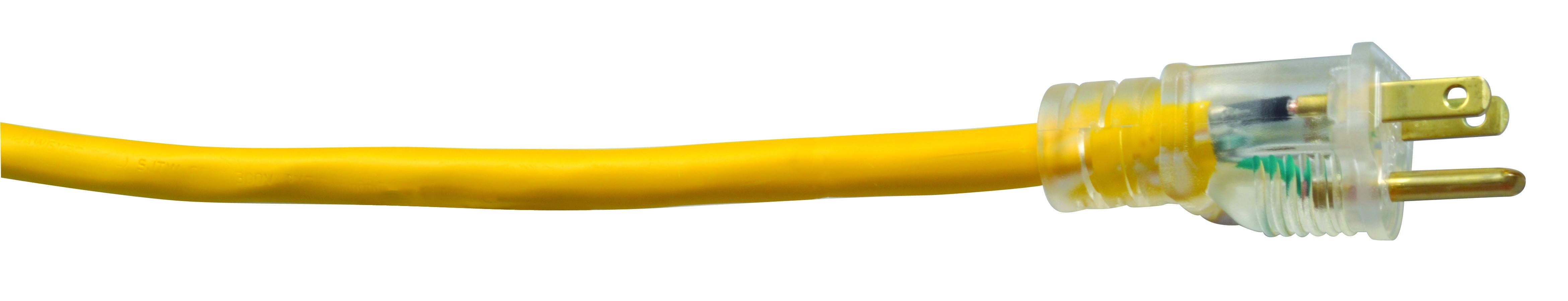

• Clear PVC plug and connector, with a neon power indicator lamp in the cord connector block

Product Highlights

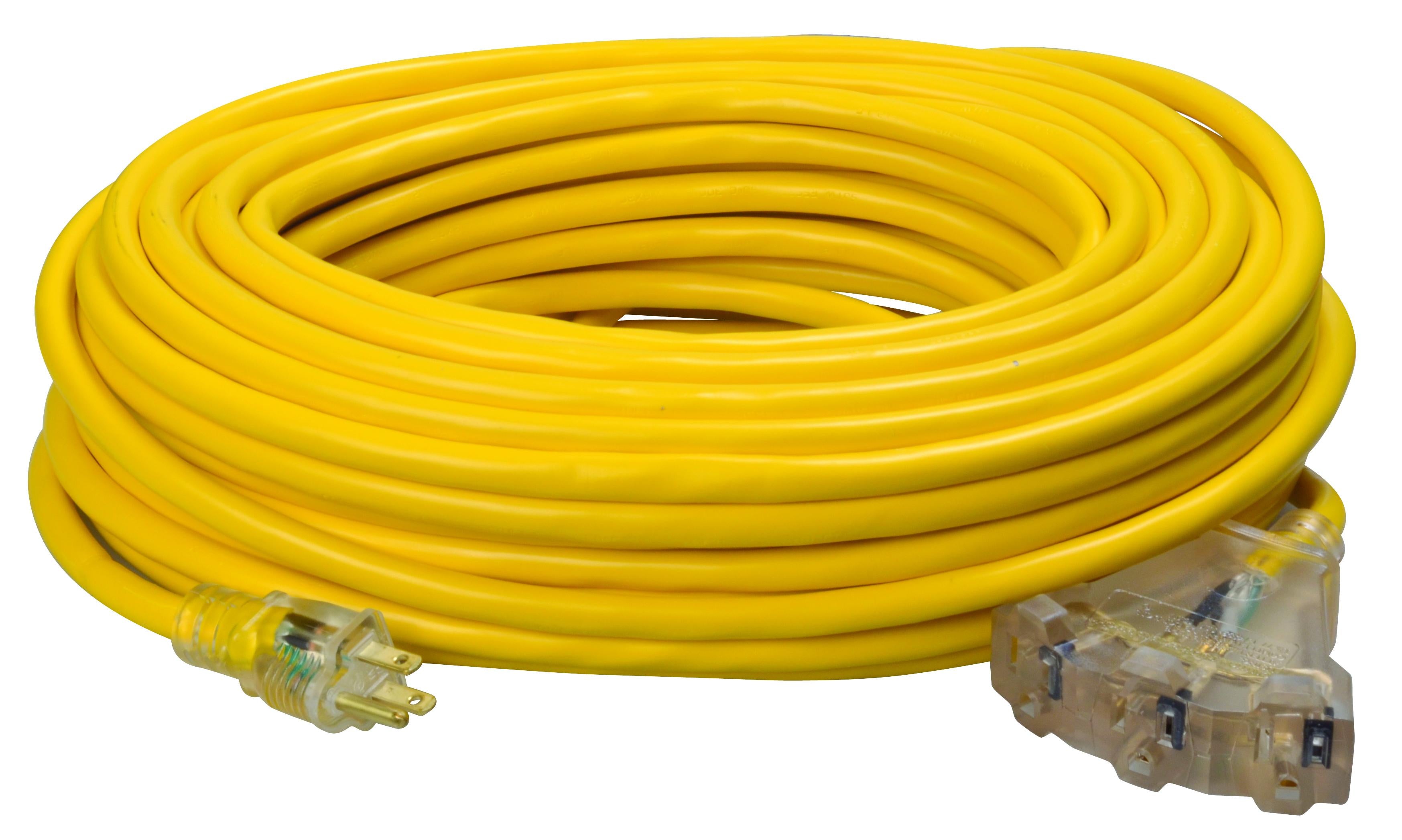

This 100-foot extension cord features a 3-outlet power block and a lighted end to show when power is on.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 4189SW8802
• Country of Origin: US

Technical Specifications

• Voltage: 125 Volts
• Plug Format: Type B
• Input Current: 15 Amps
• Connector Gender: Male-to-Female
• Type: Type SJTW
• Length: 100 ft
• Conductor Size: 12 AWG
• Conductor Type: Bare Copper
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Jacket Material: PVC
• Outside Diameter: 0.595 in
• Country of Origin: US
• Manufacturer Name: Southwire Company
• Temperature Rating: -40 to 60 deg C
• Insulation Material: PVC
• Number of Conductors: 3
• Strands: 65/30
• Cable Marking: SJTW
• Operating Temp. [Max]: 140 °F
• Operating Temp. [Min]: -40 °F
• Resistance: Weather
• Withstanding Voltage: 300 V
• Maximum Amps: 15
• UL Certified: Yes
• CUL Certified: Yes
• Gauge: 12/3
• Plug Configuration: NEMA 5-15P
• Amperage: 15 A
• Cord Type: SJTW
• Insulation: PVC
• Brand: Southwire®
