Southwire 412 Bronze Ground Rod Clamp (5/8 inch) Replaces B412

Product Description

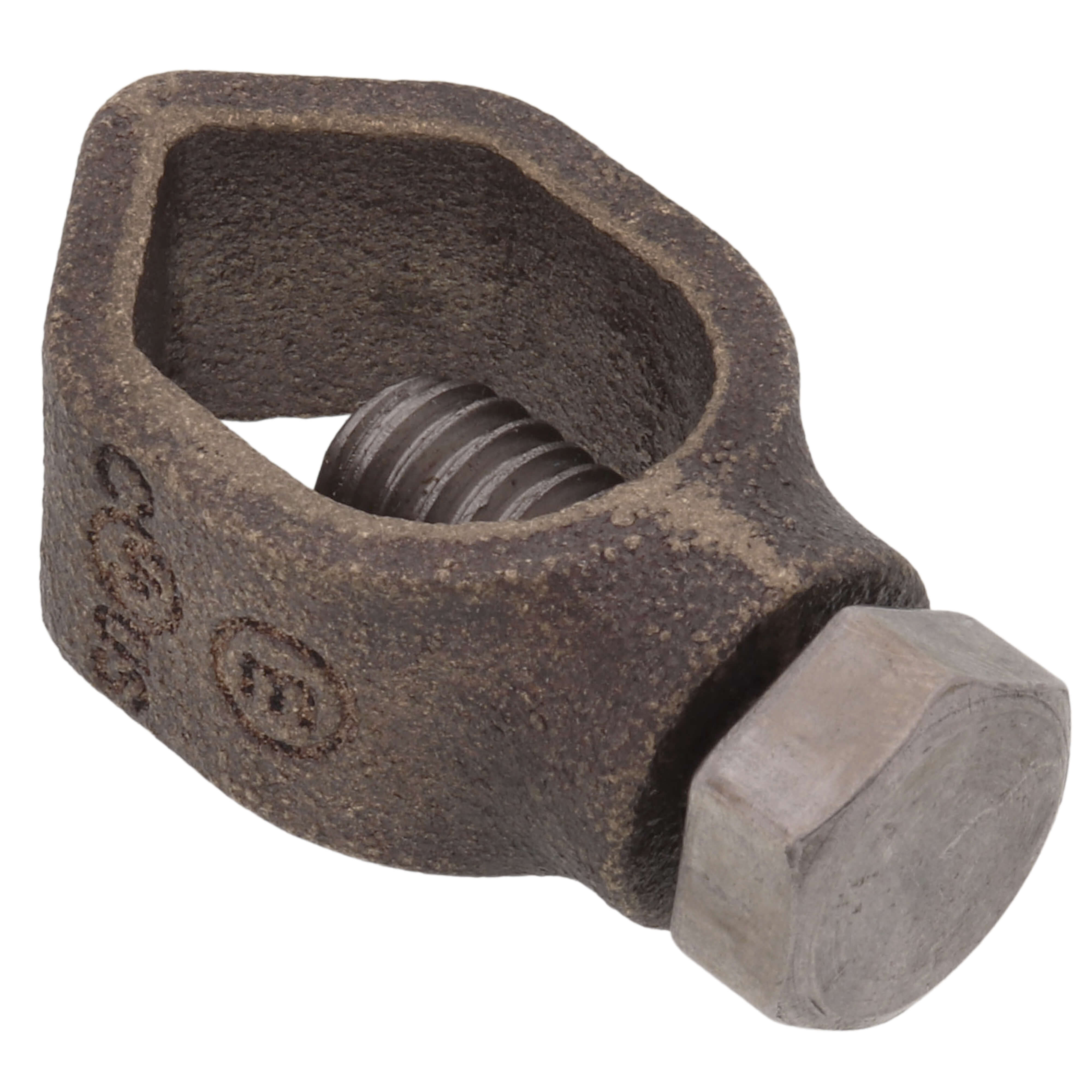

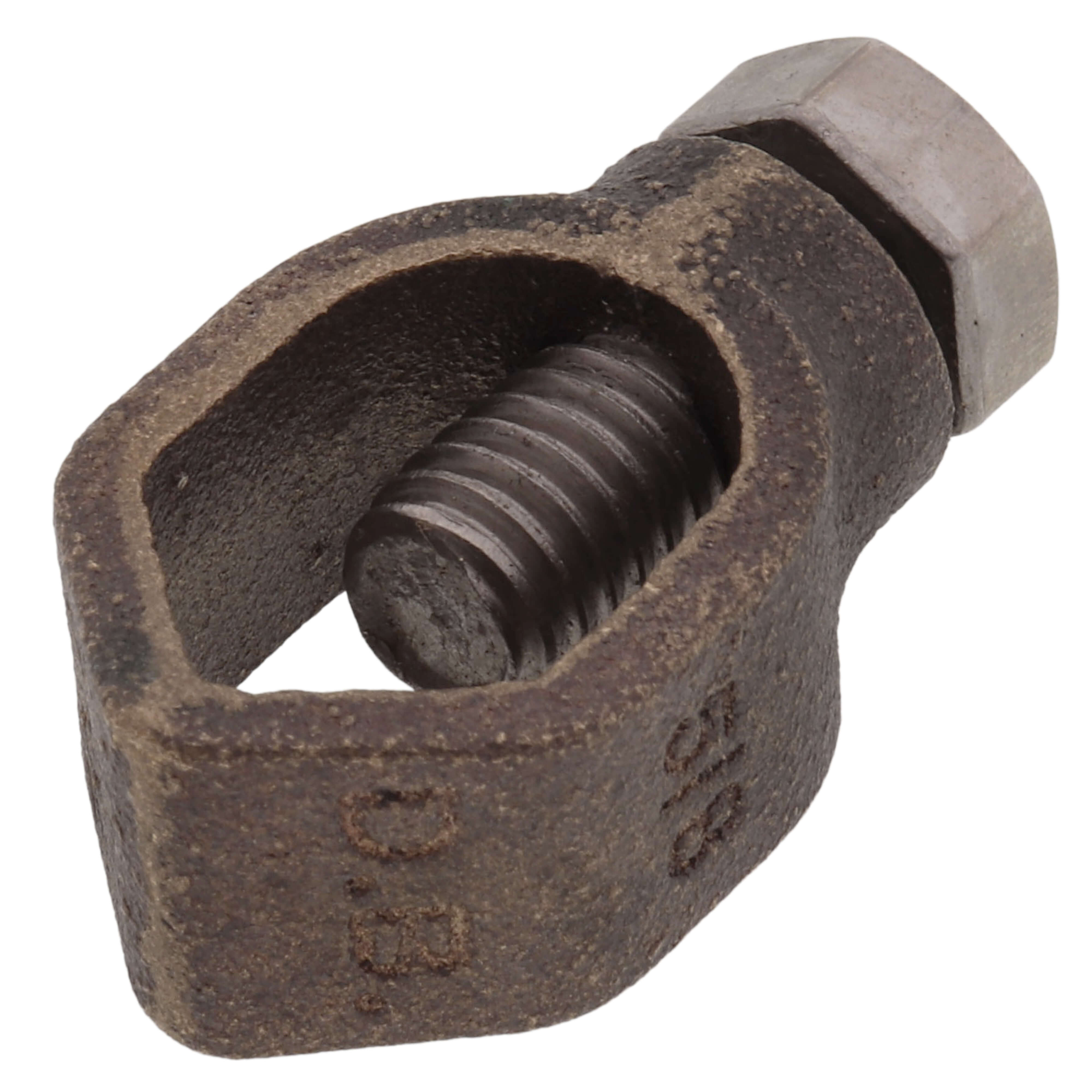

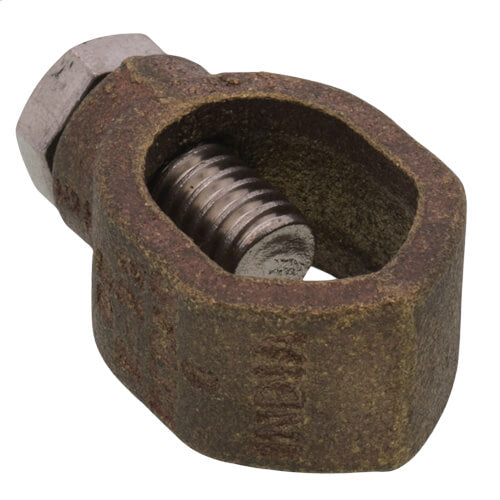

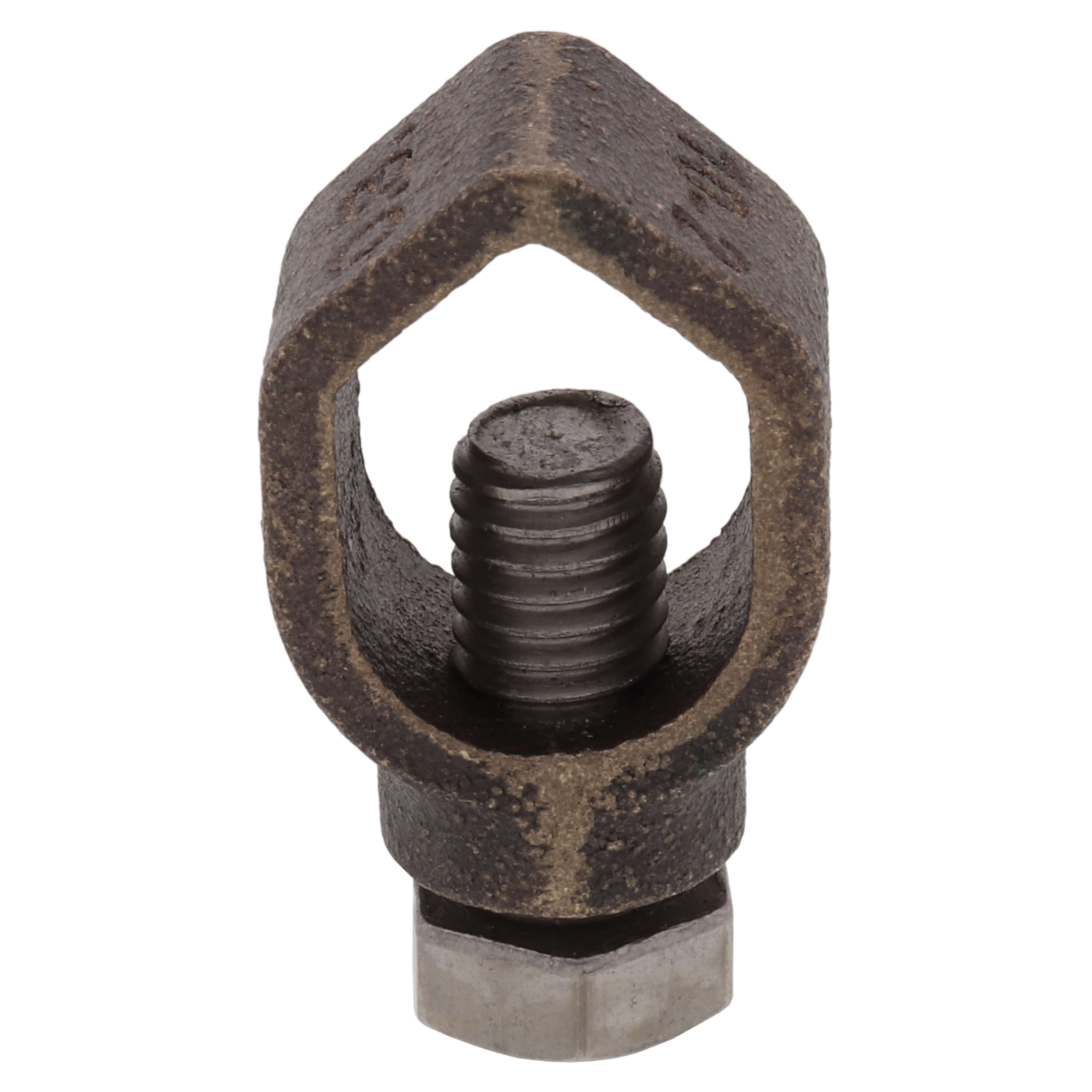

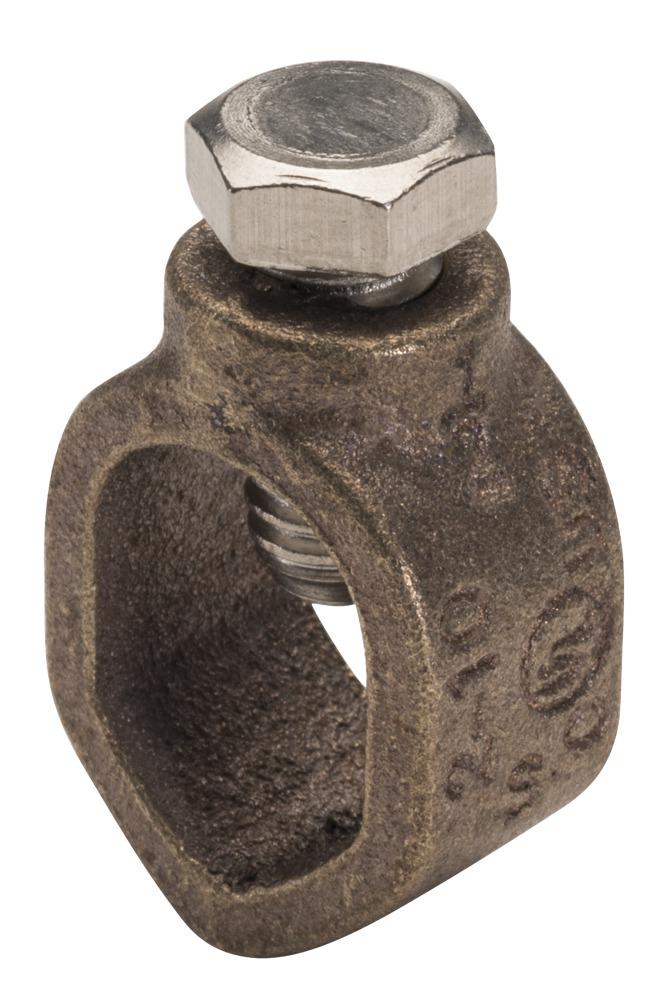

Southwire 412 is a bronze ground rod clamp that fits 5/8 inch ground rods and secures grounding conductors using a screw connection. The clamp accepts 10 AWG solid to 2 AWG stranded conductors and is approved for direct burial in ground and concrete. It is used in grounding, bonding, and splicing applications where a corrosion-resistant mechanical connection to a driven rod is required.

• Bronze construction for corrosion resistance; fits 5/8 inch ground rod
• Accepts 10 AWG solid to 2 AWG stranded conductors with screw connection
• Approved for direct burial in ground and concrete; certifications include UL 467 and CSA

Product Highlights

Bronze ground rod clamp for 5/8 in rods; accepts 10 to 2 AWG; screw connection; direct burial approved

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 412

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 412
• Product Type: Clamp
• Material: Bronze
• Rod Size: 5/8 inch
• Conductor Size: 10 AWG solid to 2 AWG stranded
• Conductor Type: Solid and stranded
• Connection Type: Screw
• Approved For: Direct burial in ground and concrete
• Certifications: CSA Certified; UL 467; UL File No. E170258/E195122; Federal Specification A-A-50552; NEMA/ANSI FB-1; Military Specification W-F-406D/W-F-406E/W-F-408D/W-S-610D
• Dimensions: 1.85 x 0.85 x 0.70 inches
• Weight: 0.11 lb
• Replaces: B412
• UPC: 751338138308
• Accessories: JWR, GB5, JJR, 406-007
• Category: Grounding, Bonding, Splicing
