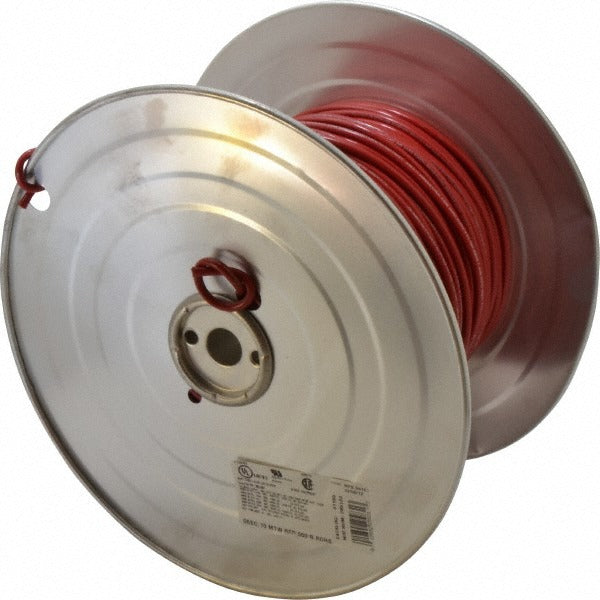

Southwire 411050504 Machine Tool Wire 10 Awg Red 500 Ft

Product Description

The SOUTHWIRE 411050504 is a 10 AWG stranded machine tool wire rated for use in industrial control panels, automation equipment, and machine tool wiring applications. Built with a PVC (polyvinylchloride) insulation jacket measuring 0.18 inches in outside diameter, this wire delivers dependable performance across a wide temperature range from -22 degrees F to 221 degrees F. The 105-strand conductor construction provides flexibility suited to tight routing inside control enclosures and machine frames. Weighing 21 pounds per 500-foot spool, this wire meets a broad set of industry standards including UL 1063, UL 758, UL 83, NFPA 70, and NFPA 79. Licensed electricians and industrial maintenance technicians are the primary installers of this product type.

This machine tool wire is designed for use inside industrial machinery, automated manufacturing equipment, and control panel assemblies where a flexible, resistance-rated conductor is required. The red jacket color supports circuit identification in multi-wire installations. The PVC insulation provides resistance to acids, moisture, and oils commonly encountered in industrial environments, making it well suited for manufacturing floor deployments and panel builds where exposure to fluids and chemicals is a routine concern.

Key Features

• 10 AWG stranded conductor with 105 strands for added flexibility in tight wiring runs
• PVC insulation rated acid-resistant, moisture-resistant, and oil-resistant
• Wide temperature rating from -22 degrees F to 221 degrees F
• 0.18-inch outside diameter for routing through conduit and wire management systems
• Compliant with UL 1063, UL 758, UL 83, UL 1426, NFPA 70, NFPA 79, CSA 22.2 No. 127/210, ASTM B174, and RoHS 2002/95/EC
• 500-foot spool length reduces splice points on larger panel builds

Compatibility

Designed as an OEM-style replacement and general-purpose machine tool wire for use in industrial control panels, machine tool enclosures, and automated equipment requiring a UL-listed 10 AWG flexible conductor.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 70 (National Electrical Code) and NFPA 79 (Electrical Standard for Industrial Machinery). De-energize and lock out the equipment before pulling or terminating wire. Verify conduit fill calculations and ampacity ratings against the applicable NEC tables before installation. Do not exceed the maximum operating temperature rating of the insulation during routing near heat sources.
