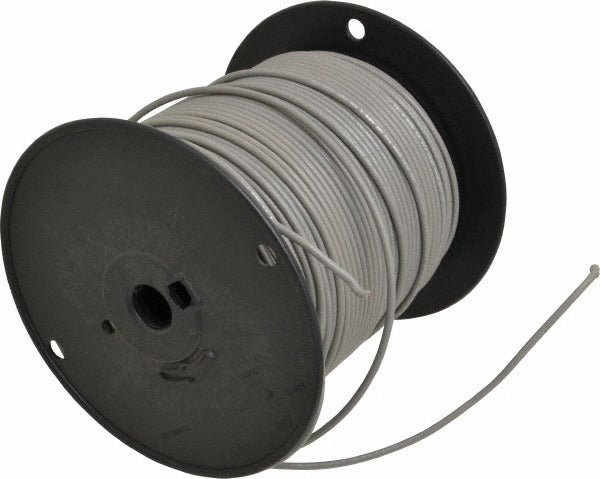

Southwire 411030509 Machine Tool Wire 14 Awg Gray 500 Ft

Product Description

The SOUTHWIRE 411030509 is a 14 AWG stranded machine tool wire designed for internal wiring of machine tools, control panels, and industrial equipment. Constructed with a gray PVC (polyvinylchloride) jacket and a 41-strand conductor, it delivers the flexibility needed in tight wiring runs and dynamic applications. The outside diameter measures 0.136 inches, and the wire is rated for a maximum operating temperature of 221 degrees F and a minimum of -22 degrees F. This wire comes on a 500-foot spool, making it suitable for panel shop builds, OEM wiring, and service installations requiring extended runs. Licensed electricians and industrial control panel builders are the primary installers.

This wire is suited for use inside machine tools, industrial control enclosures, and automation panels where flexible, oil-resistant, and moisture-resistant wiring is required. Its acid-resistant, moisture-resistant, and oil-resistant construction makes it a dependable choice in demanding shop-floor environments. At 14 AWG with 41 strands, it balances current-carrying capacity with bend flexibility for routed runs inside equipment cabinets.

Key Features

• 41-strand 14 AWG conductor for enhanced flexibility in routed panel wiring
• PVC insulation rated to 221 degrees F maximum operating temperature
• Resistant to acid, moisture, and oil — suited for machine tool environments
• Outside diameter of 0.136 inches supports compact conduit and duct routing
• Meets UL 1063, UL 83, UL 758, UL 1426, NFPA 79, NFPA 70, CSA 22.2 No. 127/210, ASTM B174, and RoHS 2002/95/EC standards
• 500-foot spool length reduces waste on large panel builds

Compatibility

Designed for use as internal machine tool wire in industrial control panels and equipment wiring applications where UL 1063 and NFPA 79 compliance is required.

Installation Notes

Installation should be performed by a licensed electrician familiar with NFPA 79 (Electrical Standard for Industrial Machinery) and NEC requirements. De-energize all equipment and lock out power before routing or terminating wire. Avoid exceeding the wire's minimum bend radius during routing to protect strand integrity. Confirm that the connected circuit does not exceed the current rating appropriate for 14 AWG conductors per the applicable code.
