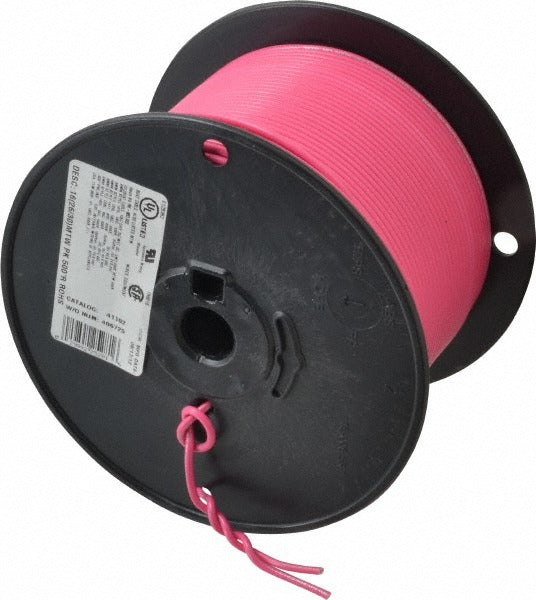

Southwire 411020511 Machine Tool Wire 16 Awg Pink 500 Ft

Product Description

The SOUTHWIRE 411020511 is a 16 AWG stranded machine tool wire designed for internal wiring of machine tools, control panels, and industrial equipment. The conductor uses 26 strands for increased flexibility and fatigue resistance compared to solid wire. PVC insulation provides resistance to acids, moisture, and oils commonly encountered in machine and manufacturing environments. The wire is rated for a maximum operating temperature of 221 degrees F and a minimum of -4 degrees F, making it suitable for demanding shop-floor and panel-wiring applications. Each spool provides 500 feet of usable length. Installation is performed by licensed electricians or qualified control panel builders.

This wire is intended for use in machine tool wiring, industrial control panels, and automated equipment installations. The pink color coding aids in conductor identification within multi-wire panel assemblies. The oil-resistant and moisture-resistant PVC insulation suits environments where exposure to cutting fluids, coolants, or industrial chemicals is likely. The 0.12 inch outside diameter accommodates standard ferrules and terminal blocks used in control cabinet wiring. It meets CSA 22.2 No. 210 and UL 1063 and UL Subject 758 standards, making it appropriate for projects requiring listed wire.

Key Features

• 16 AWG stranded construction with 26 strands for flexibility and bend-cycle durability
• PVC insulation rated acid-resistant, moisture-resistant, and oil-resistant
• Operating temperature range: -4 degrees F to 221 degrees F
• Pink color for conductor identification in panel wiring
• 500-foot spool length reduces splicing in large panel builds
• Listed to CSA 22.2 No. 210, UL 1063, and UL Subject 758

Compatibility

Designed for internal machine tool wiring and industrial control panel applications requiring UL 1063 or CSA 22.2 No. 210 listed 16 AWG stranded wire.

Installation Notes

Installation should be performed by a licensed electrician or qualified control panel builder in accordance with NFPA 79 (Electrical Standard for Industrial Machinery) and applicable NEC requirements. De-energize and lock out the equipment before routing or terminating wire. Use appropriate wire ferrules and crimp tools when terminating in screw-cage or spring-clamp terminals to maintain conductor integrity. Do not exceed the rated operating temperature of the insulation.
