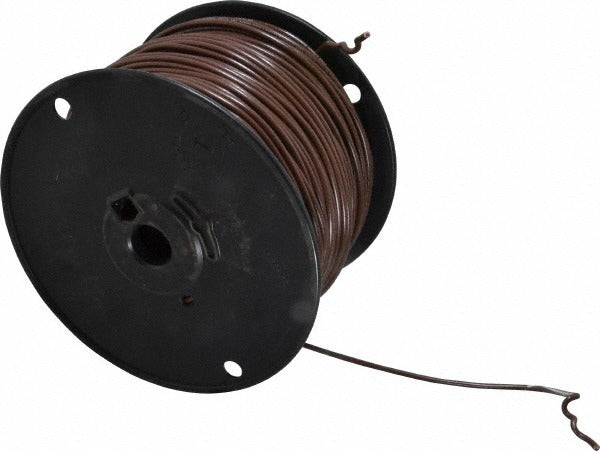

Southwire 411020507 Machine Tool Wire 16 Awg Brown 500 Ft

Product Description

The SOUTHWIRE 411020507 is a 16 AWG stranded machine tool wire rated for use in industrial control panels, machine tools, and automated equipment wiring applications. The conductor features 26 strands and is insulated with polyvinylchloride (PVC) to an outside diameter of 0.12 inches. The insulation is rated for a maximum operating temperature of 221 degrees F and a minimum of -4 degrees F, making it suitable for demanding shop-floor environments. This wire meets UL 1063 and CSA 22.2 No. 210 standards. It is available in a 500-foot spool in a solid brown jacket for circuit identification in control wiring layouts.

This wire is intended for internal wiring of machine tools, industrial control panels, and similar electrical enclosures where acid, moisture, and oil resistance are required. The PVC insulation provides reliable performance in environments where coolants, lubricants, and cleaning agents are present. Electricians and industrial maintenance technicians working on CNC machines, automated assembly equipment, conveyor systems, and similar machinery commonly specify this wire type for internal conductor runs.

Key Features

• 16 AWG with 26-strand construction for flexibility in tight routing paths
• PVC insulation rated from -4 degrees F to 221 degrees F
• Resistant to acid, moisture, and oil — suited for machine tool environments
• Outside diameter of 0.12 inches for compact bundling in wire harnesses
• Listed to UL 1063 and CSA 22.2 No. 210 for use in applicable jurisdictions
• 500-foot spool length reduces splicing and simplifies large wiring jobs

Compatibility

Designed as a standard 16 AWG machine tool wire suitable for internal wiring of industrial control panels, automated equipment, and machine tool enclosures where UL 1063 or CSA 22.2 No. 210 listed wire is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NFPA 79 (Electrical Standard for Industrial Machinery) and applicable local codes. De-energize and lock out the equipment before routing or terminating conductors. Route wire away from sharp edges and heat sources that exceed the 221 degrees F insulation rating. Do not exceed the ampacity rating for 16 AWG conductors as defined by the governing installation standard.
