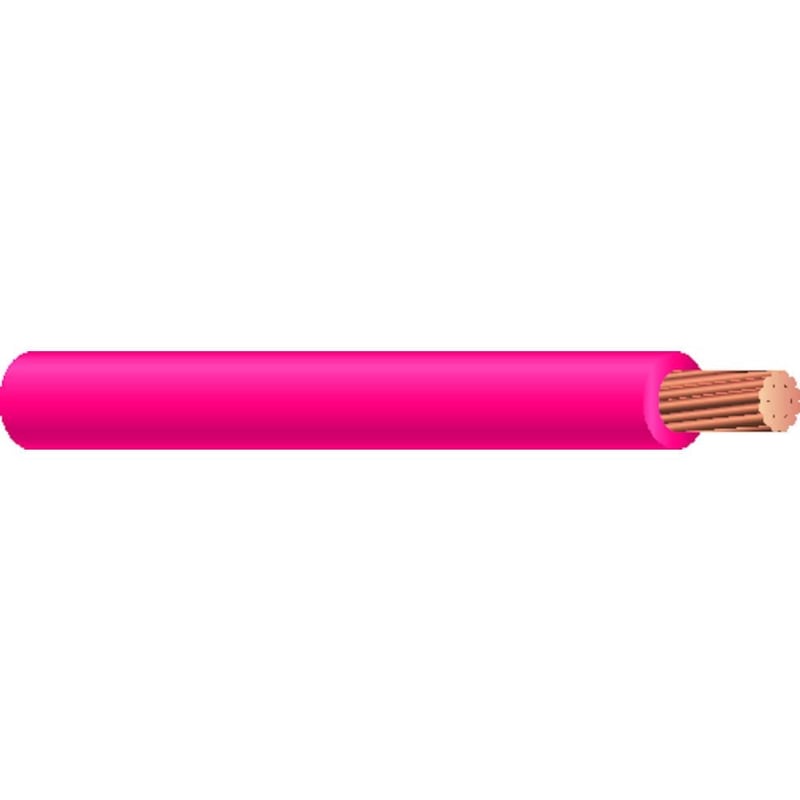

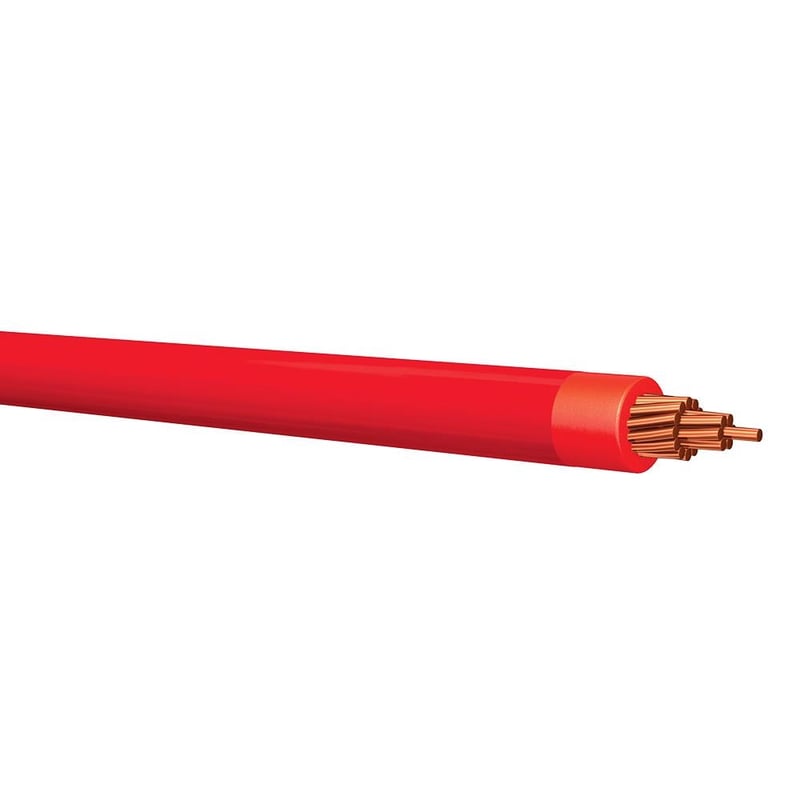

Southwire 411020504 Machine Tool Wire 16 AWG 500FT Spool

Product Description

The Southwire 411020504 is a machine tool wire designed for various internal electrical applications. This stranded copper wire is available in a five hundred foot spool and is ideal for internal wiring of electrical equipment, control panels, and appliances. It is commonly used in industrial settings and for grounding purposes.

• Conforms to NEC Article 310 and NFPA #79 standards.
• Rated for a voltage of six hundred volts.
• Features a PVC insulation for reliable performance.

Product Highlights

This wire is suitable for use in boat wiring according to specific regulations, ensuring versatility and compliance in various applications.

Product Information

Standard Information

• Brand: Southwire
• Part Number: 411020504

Technical Specifications

• Conductor Size: 16 AWG
• Wire Length: 500 FT
• Current Rating: 8 Ampere (60 Deg C), 8 Ampere (75 Deg C), 8 Ampere (90 Deg C)
• Voltage Rating: 600V
• Number Of Conductors: 1
• Insulation Material: PVC
• Strands: 26
• Weight: 15 lbs
• Color: Red
• Outside Diameter: 0.12 inches
• Temperature Rating: 105 Deg C
