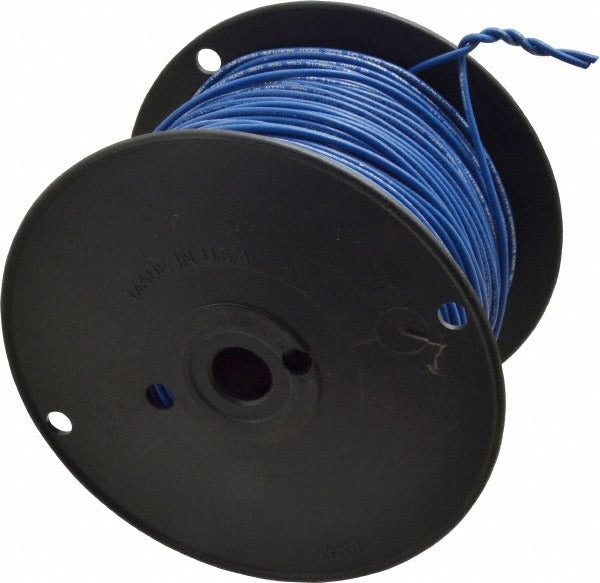

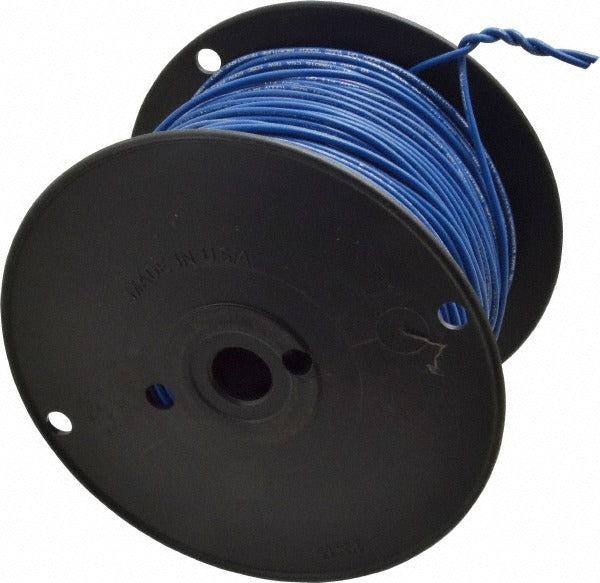

Southwire 411010506 Machine Tool Wire 18 Awg Blue 500 Ft

Product Description

The SOUTHWIRE 411010506 is an 18 AWG stranded machine tool wire rated for use in demanding industrial and commercial wiring applications. The conductor is built with 16 strands and insulated with polyvinylchloride (PVC), giving it a 0.108-inch outside diameter. It handles a maximum operating temperature of 221 degrees F and a minimum of -4 degrees F, making it suitable for environments that cycle through temperature extremes. This 500-foot spool is sized for job-site or shop use and is installed by licensed electricians and industrial maintenance technicians working on machine tool and control wiring systems.

This wire is designed for internal wiring of machine tools, control panels, and related electrical equipment. Its resistance to acids, moisture, and oil makes it appropriate for industrial environments where exposure to fluids and contaminants is routine. The blue jacket allows for straightforward color-coding in multi-conductor control wiring layouts. It meets CSA 22.2 No. 210 and UL 1063 standards, as well as UL Subject 758, which are common requirements for machine tool and appliance wiring applications.

Key Features

• 18 AWG, 16-strand construction for flexibility in tight routing and control cabinet work
• PVC insulation rated acid-resistant, moisture-resistant, and oil-resistant
• Operating temperature range: -4 degrees F to 221 degrees F
• 0.108-inch outside diameter for consistent fit in standard wire management
• Blue jacket supports color-coded wiring practices in multi-wire installations
• Listed to UL 1063, UL Subject 758, and CSA 22.2 No. 210

Compatibility

Designed as an OEM-style replacement or new-installation wire for machine tool control panels and internal equipment wiring where UL 1063 or CSA 22.2 No. 210 listed 18 AWG PVC-insulated wire is specified.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize all circuits and lock out or tag out equipment before routing or terminating wire. Do not exceed the wire's rated operating temperature or expose it to chemicals outside its listed resistance profile. Follow machine tool manufacturer wiring diagrams for proper routing and termination practices.
