Southwire 411010501 Machine Tool Wire 18 AWG (500FT Spool) REPLACEMENT MPN

Product Description

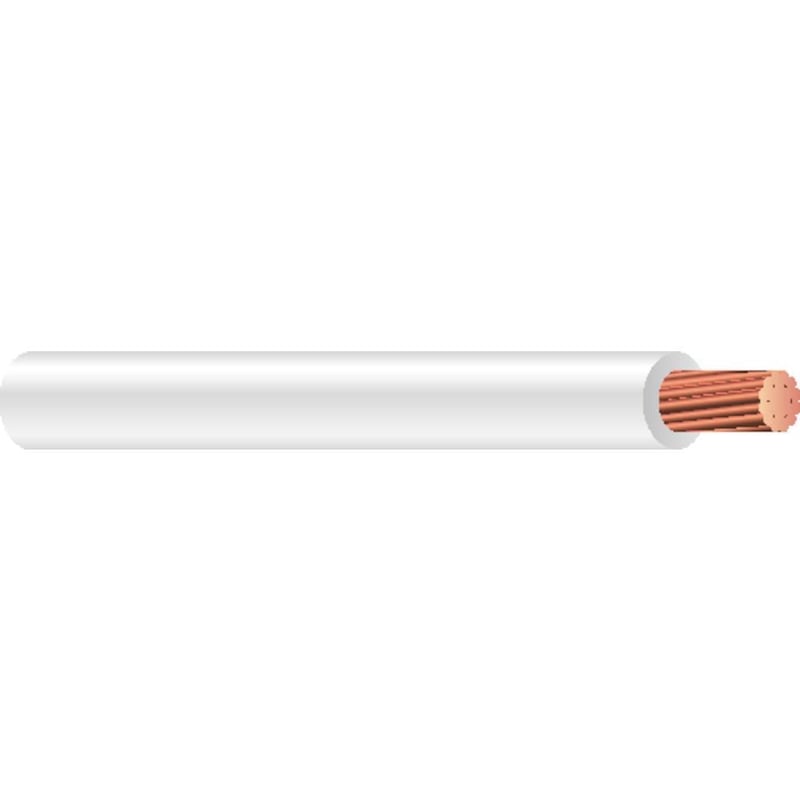

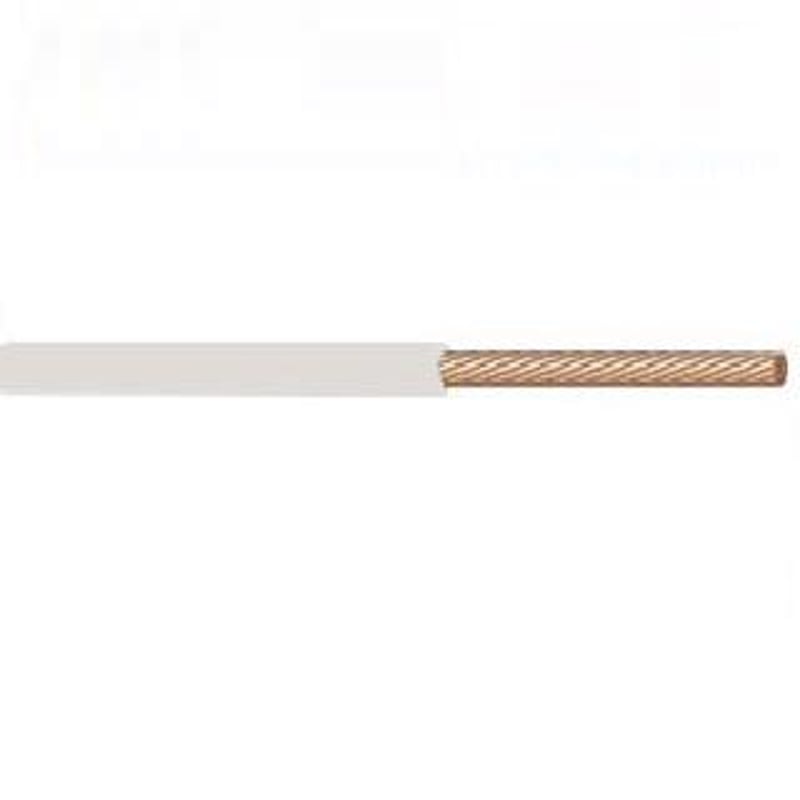

Southwire 411010501 is an 18 AWG Machine Tool Wire available in a five hundred foot spool. This stranded copper wire is designed for internal wiring in electrical equipment, control panels, and appliances. It can also be used for grounding in industrial applications.

• Flexible stranded bare copper conductors
• Insulation made from durable polyvinyl chloride (PVC)
• Rated for use at temperatures up to one hundred five degrees Celsius

Product Highlights

This wire complies with NEC Article 310 and NFPA #79. It is suitable for boat wiring according to standards set by 33 CFR 183.425 to 435.

Product Information

Standard Information

• Brand: Southwire
• MPN: 411010501

Technical Specifications

• Type: MTW
• Color: White
• Conductor Size: 18 AWG
• Current Rating: 6 A
• Voltage Rating: 600V
• Wire Length: 500 FT
• Outer Diameter: 0.108 inches
• Insulation Material: PVC
• Number Of Conductors: 1
• Temperature Rating: 105 degrees Celsius
• Warranty Description: 1 year manufacturers defect
