Southwire 351 Rigid to Rigid Conduit Pull Elbow (1/2 in, 90 Degree)

Product Description

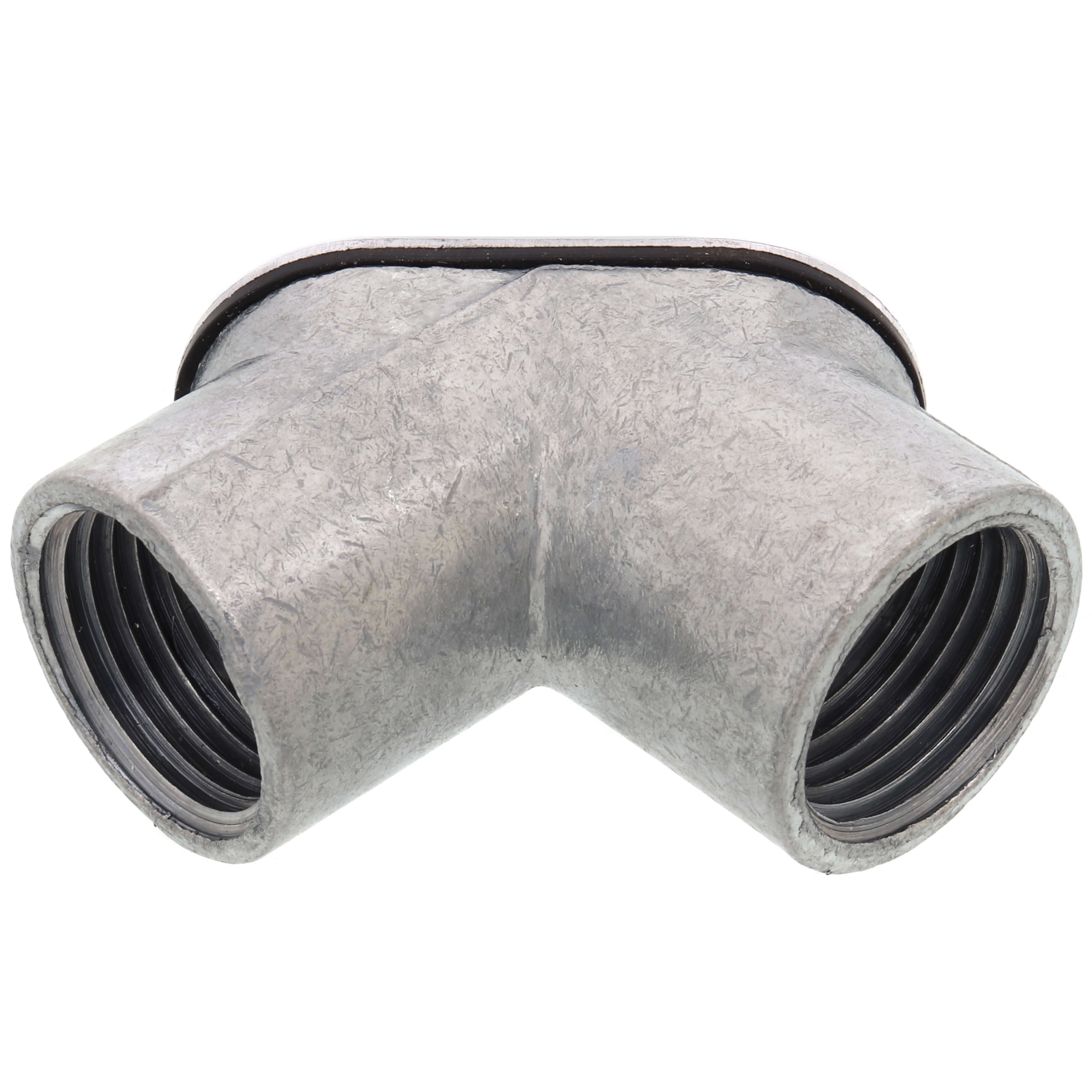

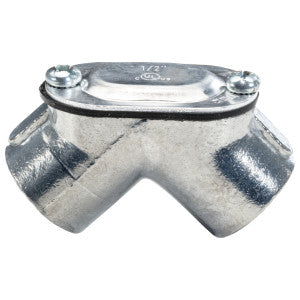

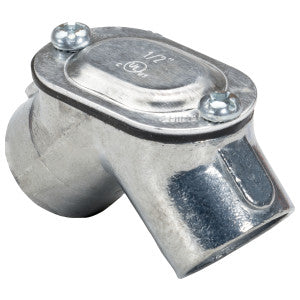

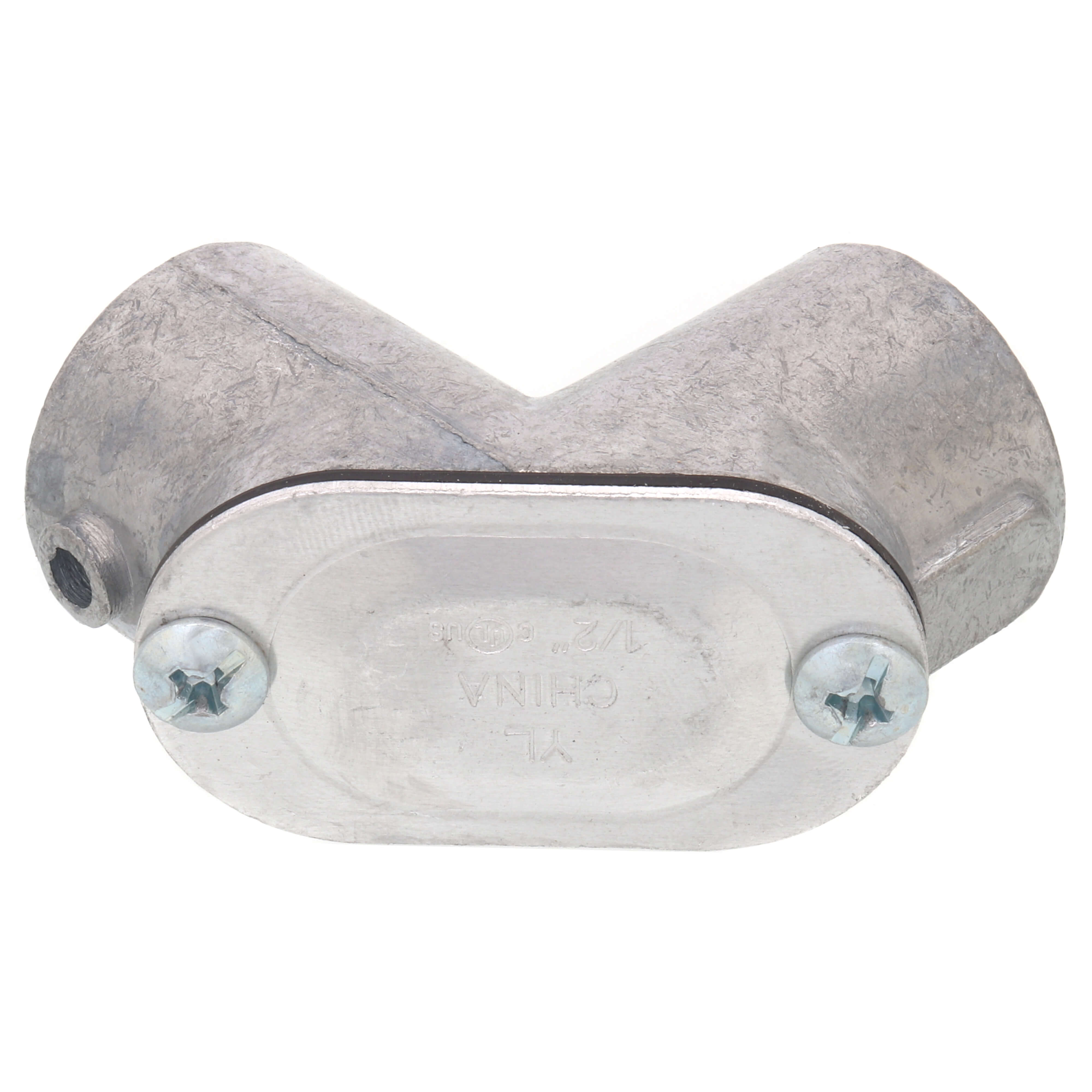

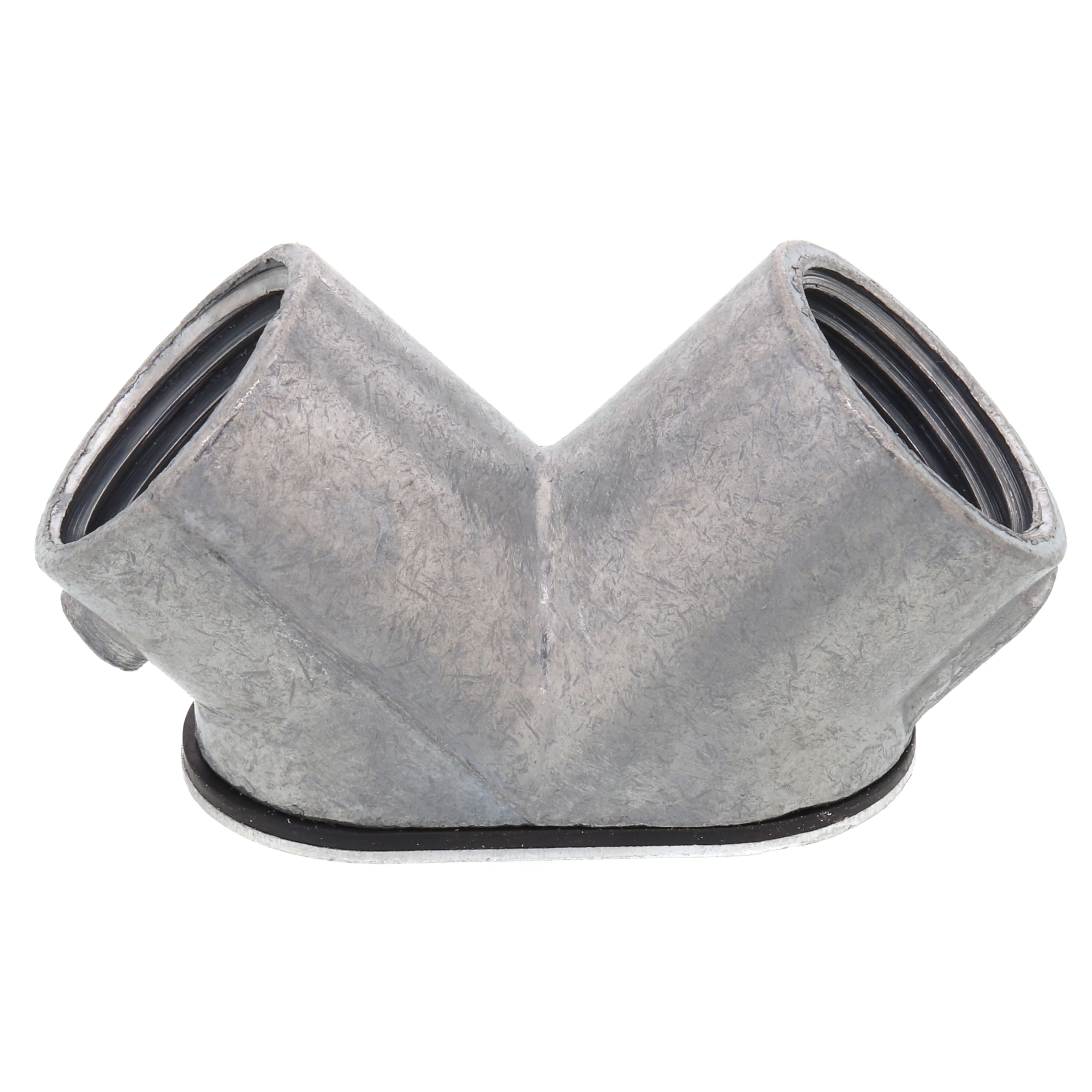

Southwire 351 is a 1/2 in rigid-to-rigid 90-degree pull elbow constructed of die-cast zinc for use with threaded rigid conduit. The fitting features a removable cover with a neoprene gasket to facilitate wire pulling and provide a sealed connection. It is UL and CSA listed and is suitable for indoor and outdoor use when installed with rigid conduit; compatible with EMT and IMC conduit where noted.

• Die-cast zinc construction with zinc-plated finish and 90-degree bend
• Threaded female-to-female installation with removable cover and neoprene gasket to aid wire pulling
• UL and CSA approvals; suitable for indoor and outdoor use with rigid conduit; compatible with EMT and IMC

Product Highlights

1/2 in die-cast zinc rigid-to-rigid pull elbow, 90-degree, removable cover with gasket, UL and CSA listed.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 351
• Country of Origin: Unknown

Technical Specifications

• Brand: Southwire
• Manufacturer Part Number: 351
• Product Type: Rigid to rigid pull elbow
• Trade Size: 1/2 in
• Material: Die-cast zinc
• Finish: Zinc plated
• Bend Angle: 90 Degree
• Installation: Threaded female-to-female
• Cover: Removable cover with neoprene gasket
• Approvals: UL, CSA
• Standards/Certifications: UL E148716; UL Standard 514B; CSA Certified; NEMA FB-1; Federal Specification W-F-408E; Military Specifications W-F-406D, W-F-406E; W-S-610D
• Compatible Conduit: Rigid conduit; compatible with EMT and IMC
• Application: Indoor and outdoor use when used with rigid conduit
• Dimensions (Size Reference): 1.09 in x 2.5 in
• UPC: 751338135109
• Category: Rigid/IMC Pull Elbows
• SKU: 351
• Country of Origin: Unknown
