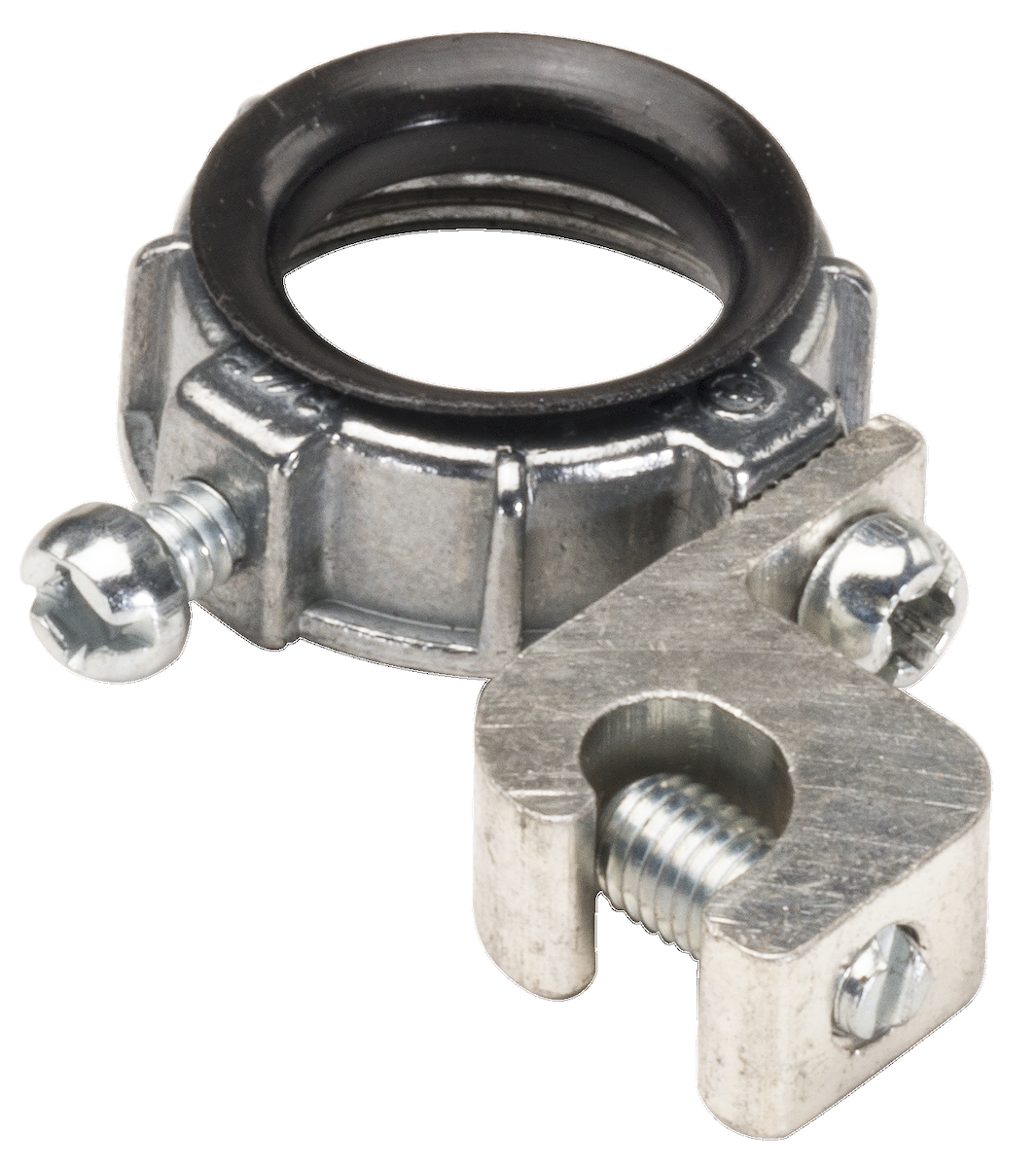

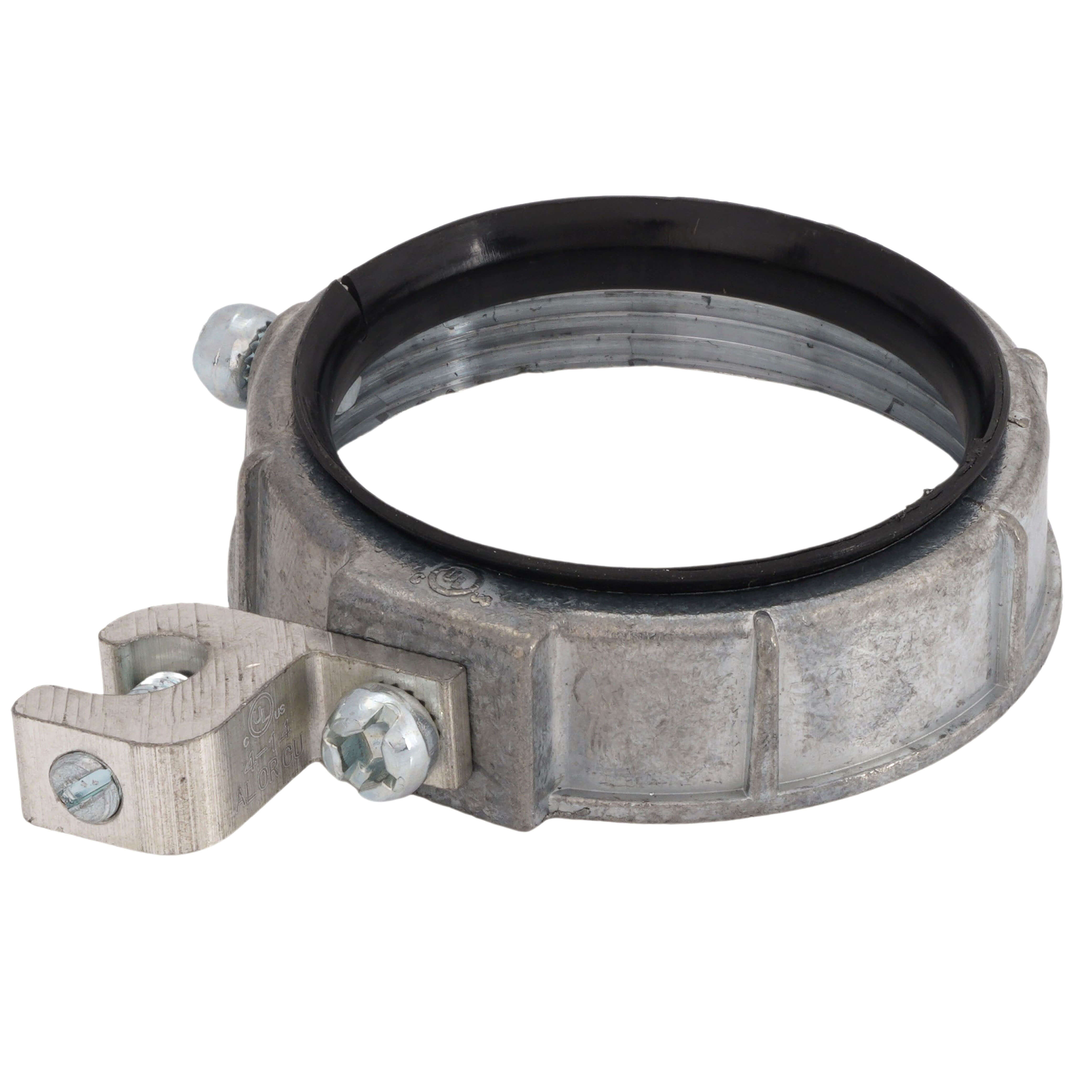

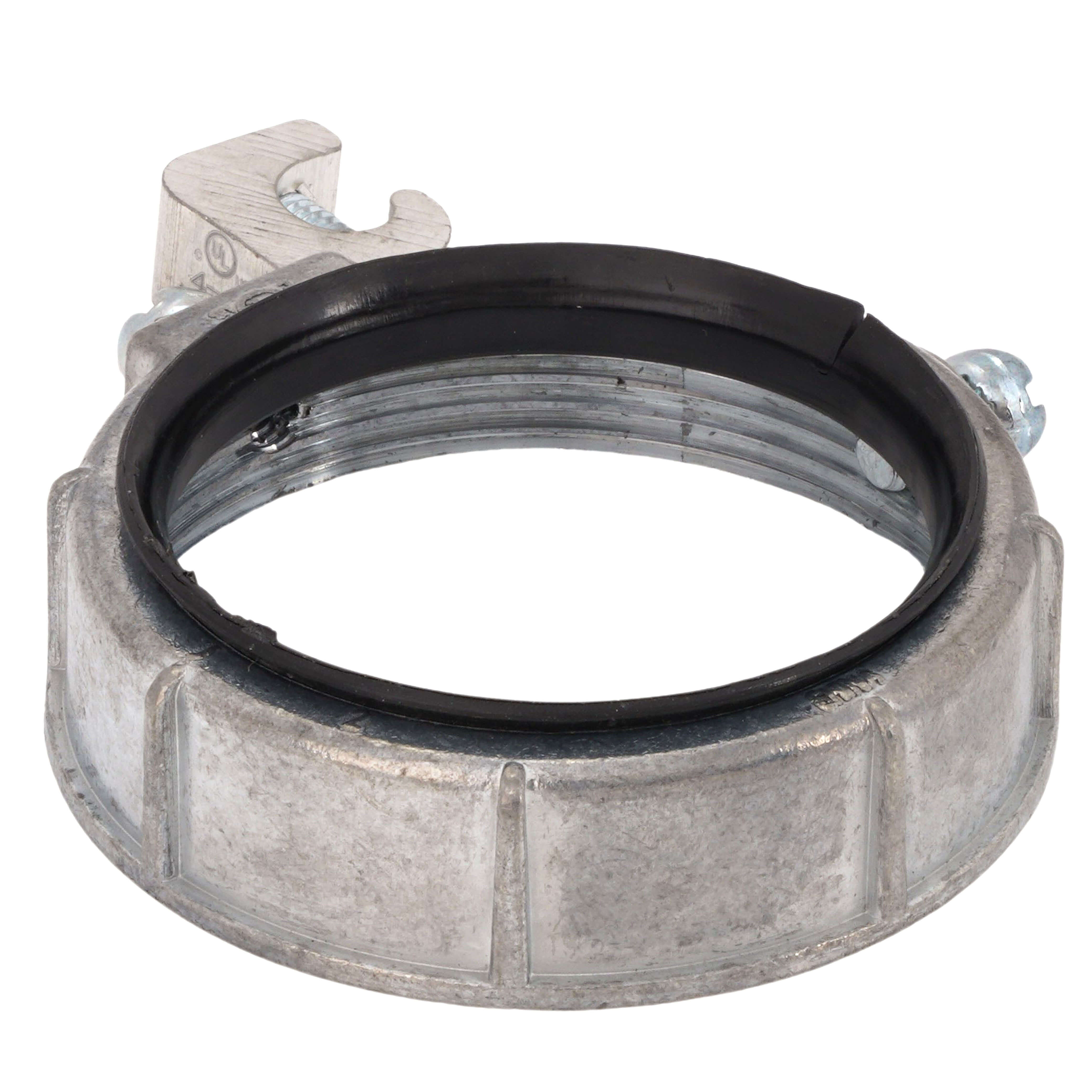

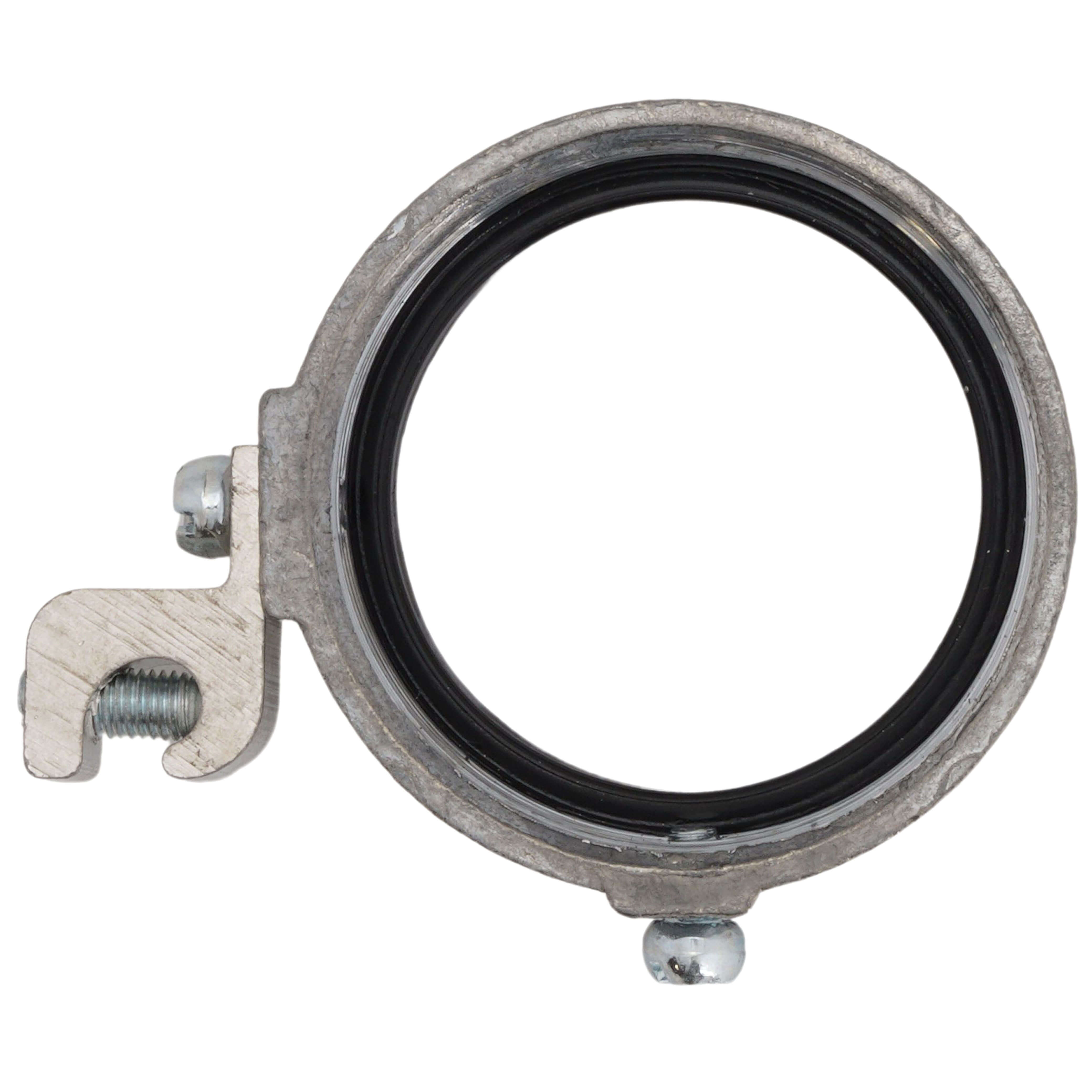

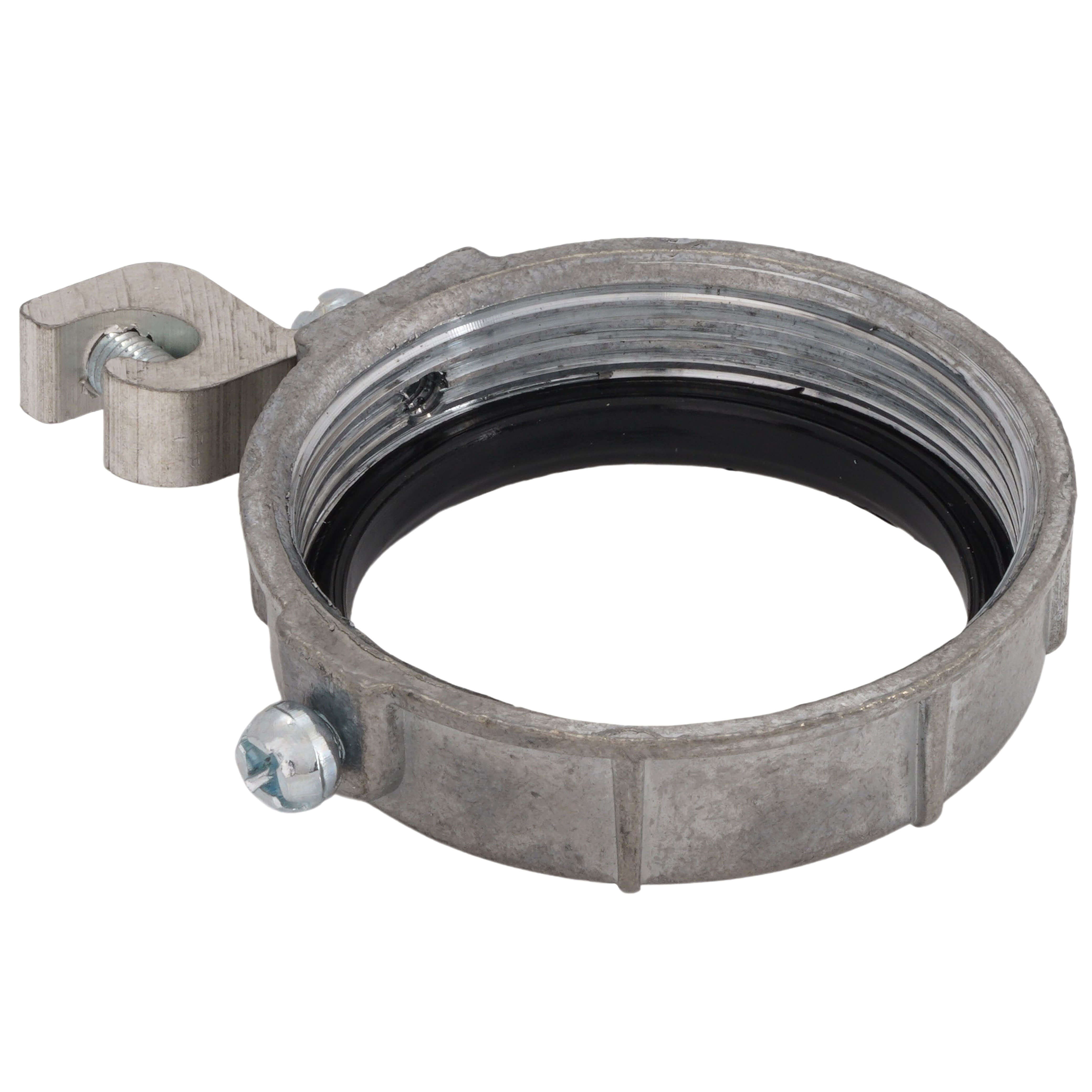

Southwire 336TZ 2 inches zinc die cast insulated ground bushing w/ lug

Product Description

The SOUTHWIRE 336TZ is a rigid insulated ground bushing with a lug, designed to accommodate wire ranges 14-4. Constructed with a zinc body, aluminum lug, and steel screws, it features a 105°C thermoplastic liner. It is suitable for commercial, industrial, and residential applications.

• UL Listed for use with Copper or Aluminum grounding conductor
• Zinc Die Cast construction
• Use with locknut to terminate service conduit to a cabinet, Lug provided for bonding jumper to a neutral bus bar. Rounded surface of bushing prevents damage to wire insulation

Product Highlights

Insulated ground bushing with lug for terminating service conduit to a cabinet. UL listed for copper or aluminum grounding conductors.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 336TZ

Technical Specifications

• Size: 2"
• Material: Zinc Die Cast
• Product Type: Bushing
• Liner Rated: Flame retardant to 105°C
