Southwire 334 TOPAZ-LTG 1 1/4 IN RGD BSHGS - INS MET GNDING W/LAY-IN LUG-ZINC DIE CAST

Product Description

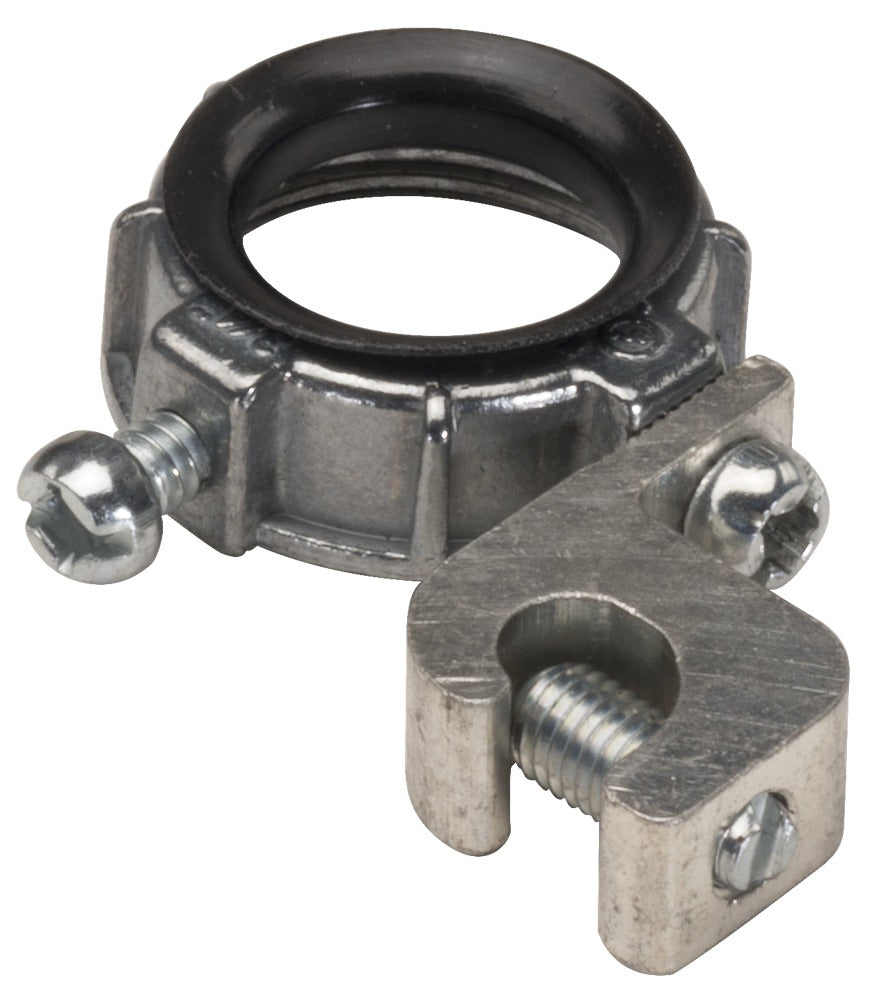

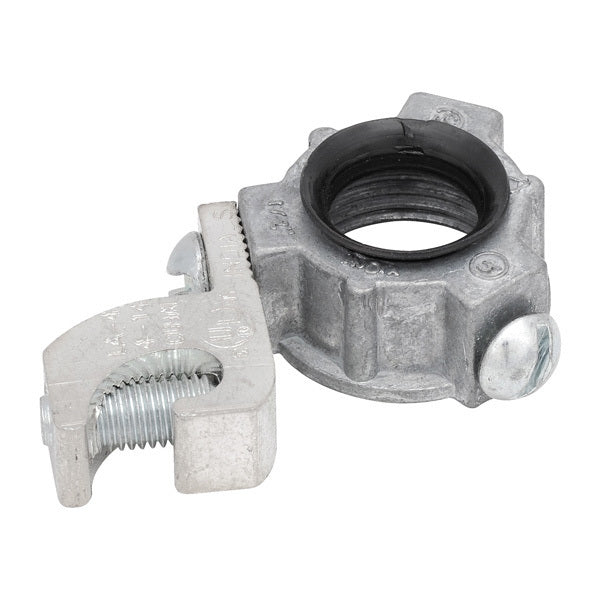

The Southwire 334 TOPAZ-LTG is a female threaded ground bushing designed for use with rigid and IMC conduit systems. It accommodates wire sizes from fourteen to four AWG. The bushing features a zinc die cast construction with an insulated throat and a lay-in aluminum lug. It is suitable for use with copper or aluminum grounding conductors.

• Flame-retardant liner rated to one hundred five degrees Celsius.
• UL listed for safe use with both copper and aluminum conductors.
• Constructed from tin plated aluminum alloy 6061-T6.

Product Highlights

This product is ideal for grounding applications where durability and safety are essential. The thermal plastic throat liner helps prevent damage to wire insulation, enhancing overall performance.

Product Information

Standard Information

• Application: For copper/aluminum bare ground connector, rigid, IMC conduit
• Type: Female Threaded

Technical Specifications

• Height: 0.62 in
• Throat: Insulated
• Lug Type: Aluminum Lay-In
• Material: Die Cast Zinc
• Maximum Wire Size: 4 AWG
• Minimum Wire Size: 14 AWG
• Standards/Approvals: CSA Certified, UL 514B, UL File No. E17025
• Trade Size: 1-1/4 in
