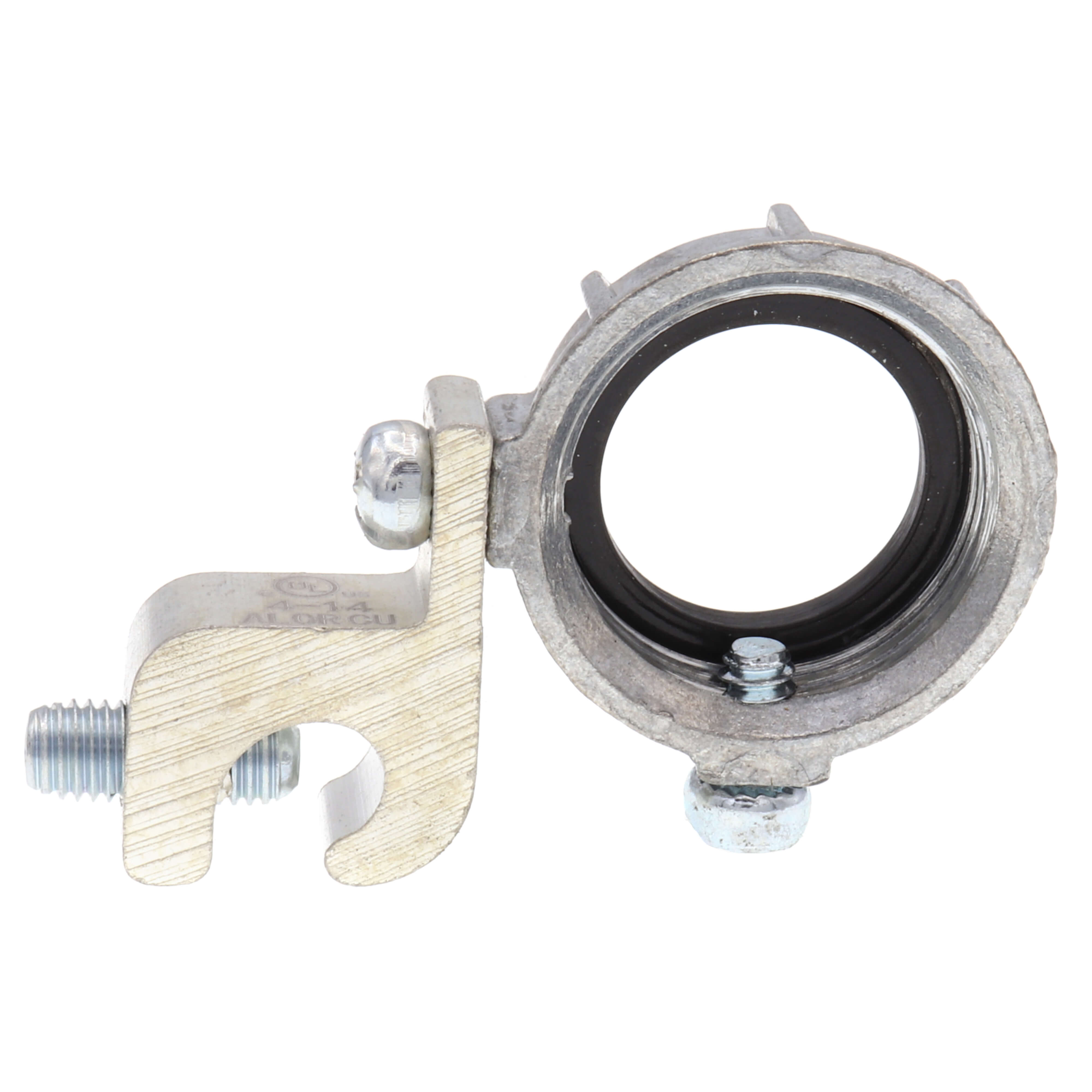

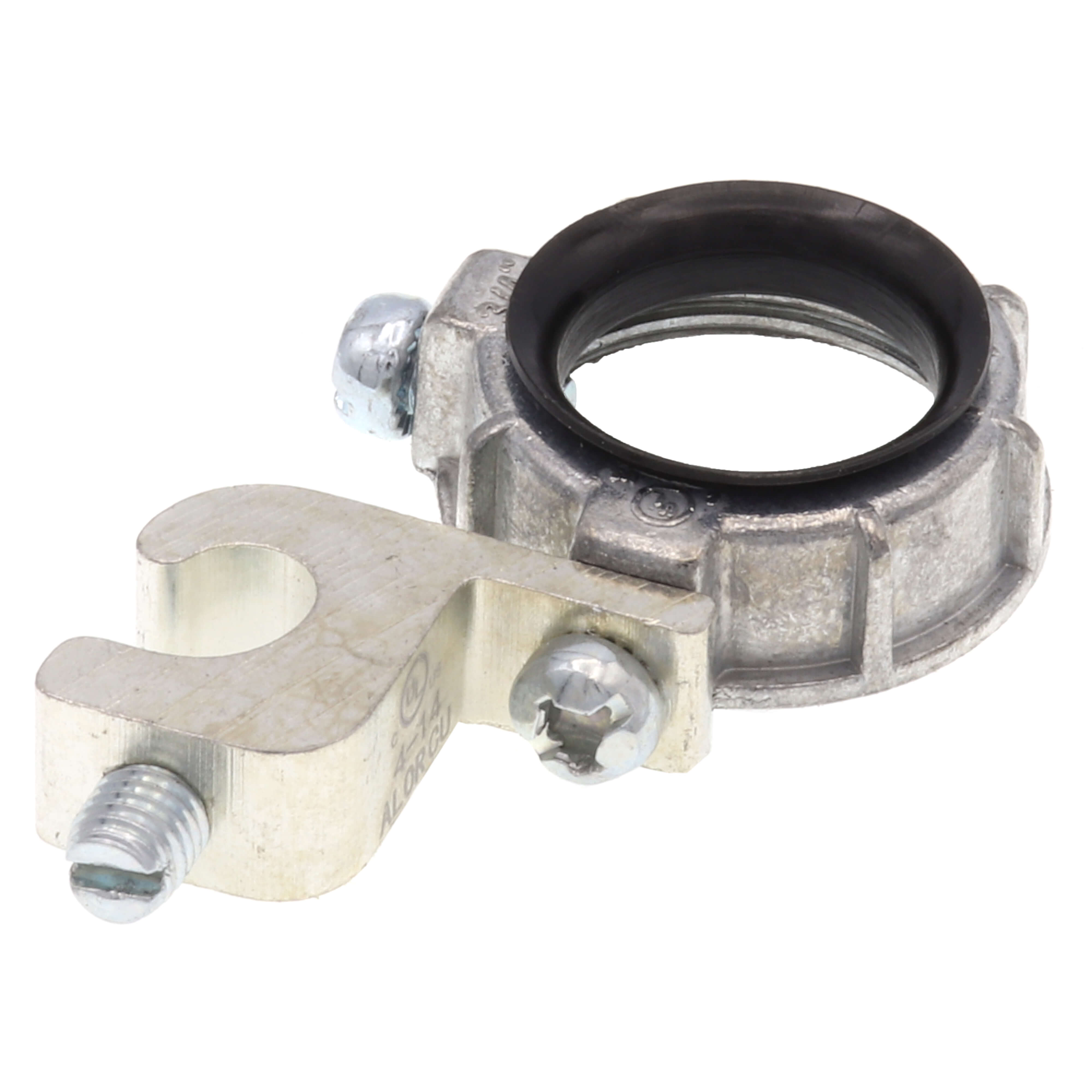

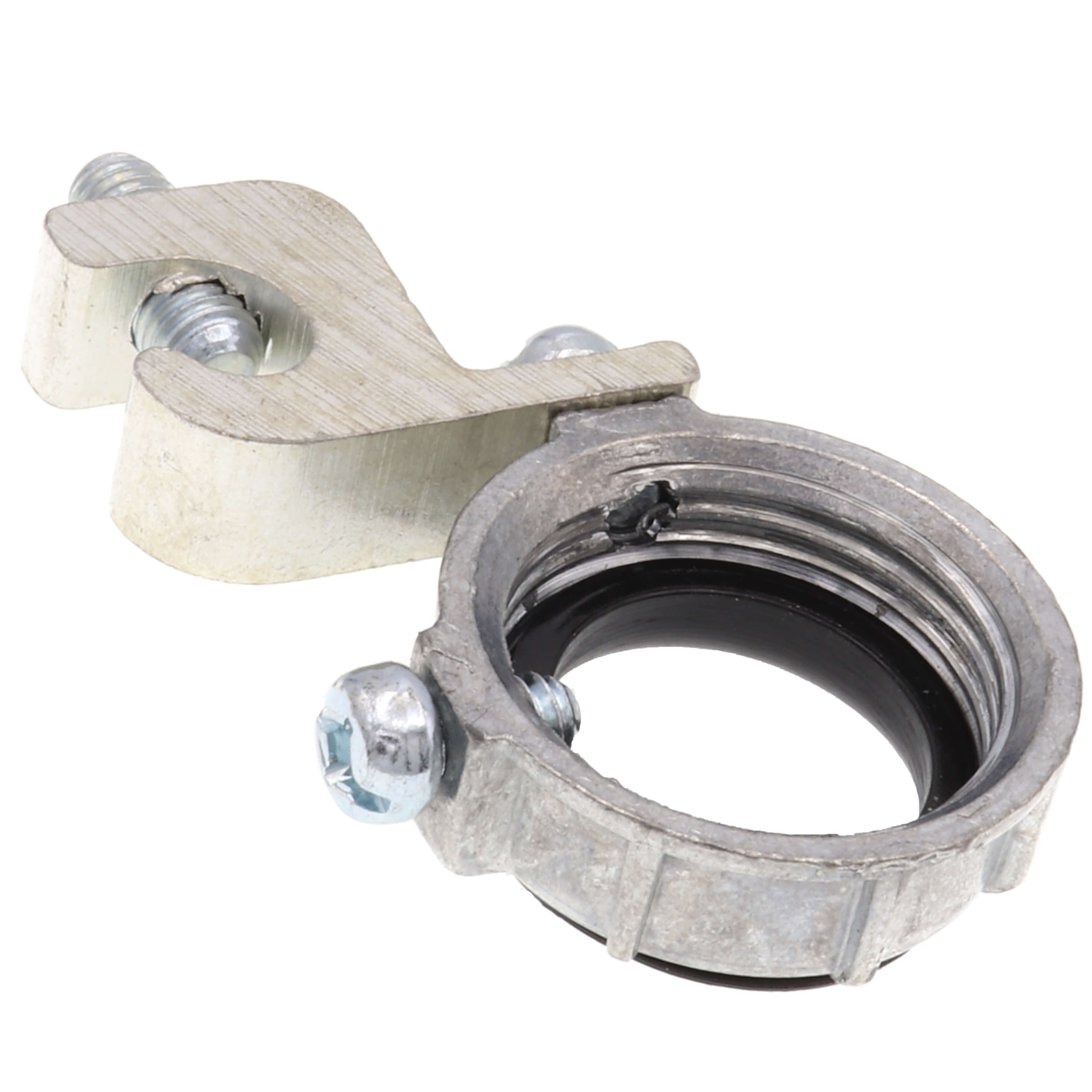

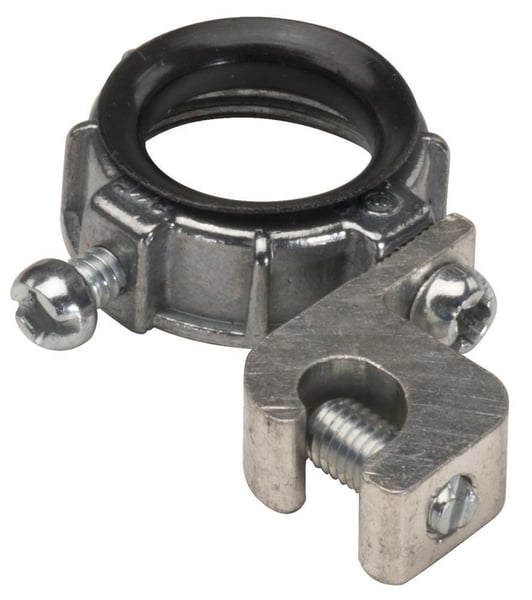

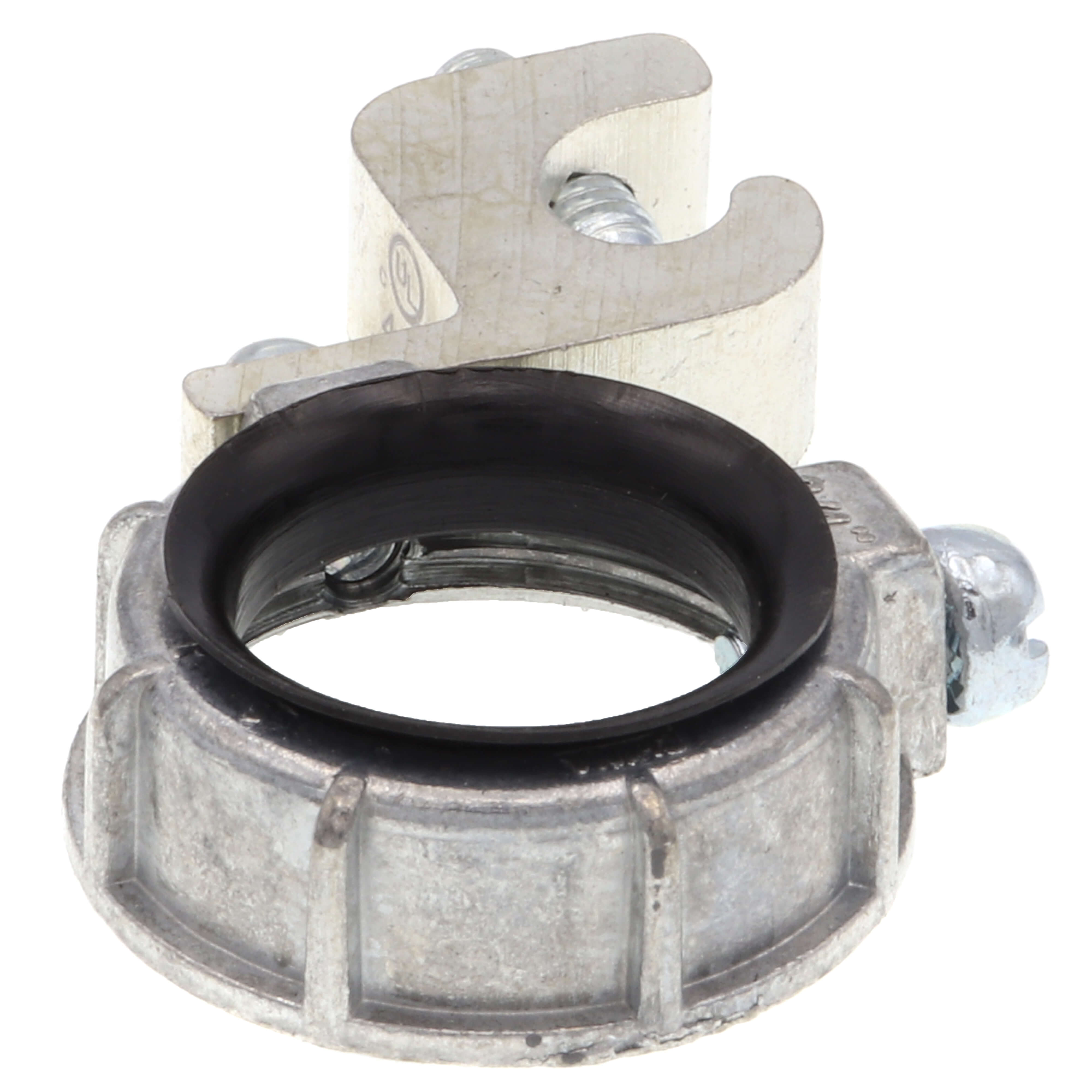

Southwire 332 Ground Bushing 3/4 inches Zinc Die Cast Insulated Ground Bushing w/ Lug

Product Description

The SOUTHWIRE 332 is a rigid insulated ground bushing with a lug, designed to accommodate wire ranges 14-4. It features a zinc body, aluminum lug, and steel screws, with a 105°C thermoplastic liner. Use with locknut to terminate service conduit to a cabinet, Lug provided for bonding jumper to a neutral bus bar. Rounded surface of bushing prevents damage to wire insulation.

• UL Listed for use with Copper or Aluminum grounding conductor
• Zinc Die Cast construction
• Liner is rated flame-retardant to 105 deg C

Product Highlights

The SOUTHWIRE 332 ground bushing ensures secure grounding with its durable construction and insulated design, suitable for a range of wire sizes.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 332
• Country of Origin: China

Technical Specifications

• Size [Features]: 3/4"
• Material [Features]: Zinc Die Cast
• Product Type [Features]: Bushing
• Trade Size: 3/4 in
• Wire Size Minimum: 14 AWG
• Wire Size Maximum: 4 AWG
• Diameter: 1-1/2 in
• Height: 1/2 in
