Southwire 32511003 rs-485 shielded cable plenum 22/1 pair stranded tinned copper cmp/cl3p/fplp oas gen low cap 1000 ft

SOUTHWIRE
Brand: SOUTHWIRE
SKU: 32511003
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$473.29
$473.29
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

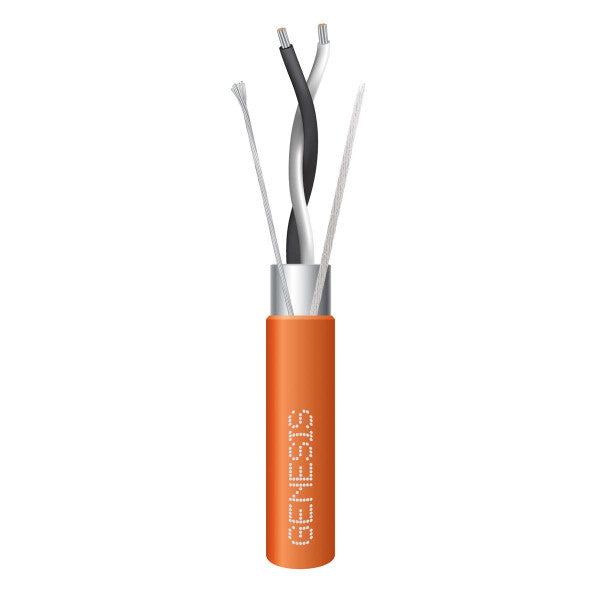

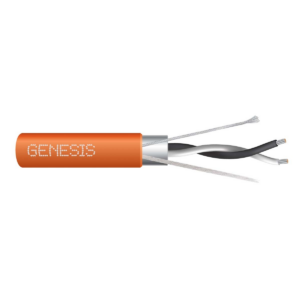

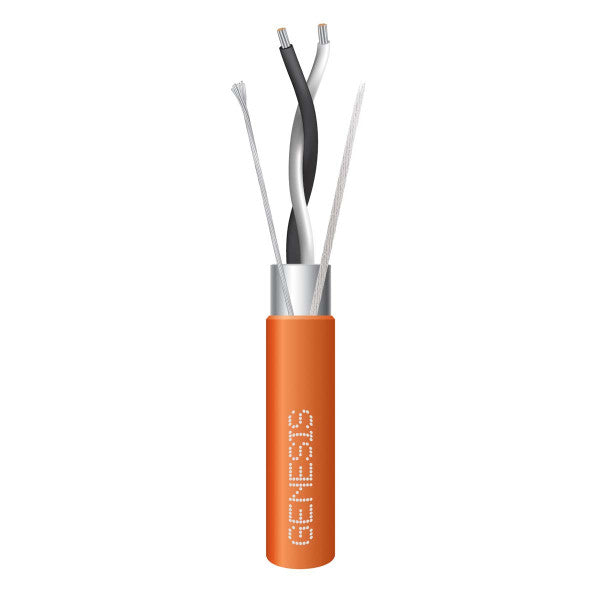

The SOUTHWIRE 32511003 is a Genesis Plenum Rated RS-485 Shielded Cable designed for reliable signal transmission in various environments. This 22 AWG, 1-pair stranded tinned copper cable features FEP insulation and an overall foil shield with a drain wire, ensuring excellent performance. Rated for 300 Volts and temperatures from -20 °C to 75 °C, it is suitable for installation in fabricated ducts, environmental air spaces, and risers, meeting NFPA 262 and UL standards for communication and fire-alarm circuits.

  • Suitable for installation in fabricated ducts (NEC 300.22(B)) and other environmental air spaces (NEC 300.22(C)).
  • Features Stranded Tinned Copper conductors for excellent signal transmission and low voltage drop.
  • Includes a durable rip cord for efficient jacket stripping and Countdown® Length Markings for usage tracking.

Product Highlights

Plenum-rated RS-485 shielded cable with FEP insulation and foil shield, ideal for data communication in demanding environments.

Product Information

Standard Information

  • Brand: SOUTHWIRE
  • Manufacturer Part Number: 32511003

Technical Specifications

  • AWG Size: 22 AWG
  • Number of Pairs: 1
  • Stranding: Stranded
  • Shielding: Shielded
  • Voltage Rating: 300 Volts
  • Temperature Rating: -20 °C to 75 °C
  • Standards Met: NFPA 262 - Plenum Rated, CSA C22.2 No. 2556 - FT6 Rated, UL 444 - Communication Cables (Type CMP), UL 1424 - Cables for Power-Limited Fire-Alarm Circuits (Type FPLP), UL 13 - Power-Limited Circuit Cables (Type CL3P)
  • Compliance: REACH/RoHS Compliant
  • Conductor Type: Stranded Tinned Copper
  • Insulation: FEP
  • Jacket Material: Plenum PVC
  • Shield Type: Overall Foil Shield with Drain Wire
  • Application: RS-485, EIA-485, BACnet, LonWorks, Building Automation Networks
  • Manufacturer: Genesis Cable Systems
