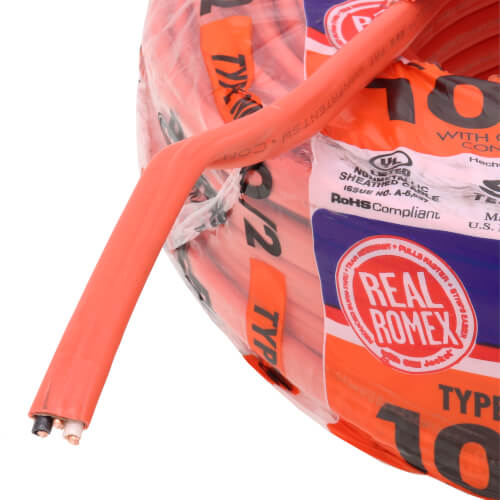

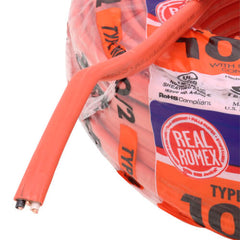

Southwire 28829028 Romex SIMpull type NM-B cable, with ground 600V 30A 10-2 100 feet coil

Product Description

The Southwire 28829028 Romex SIMpull Type NM-B Cable is a nonmetallic-sheathed cable designed for residential wiring. It features 10 AWG 2C solid copper construction with a 600-volt rating and 30-amp allowable ampacity. This cable is suitable for both exposed and concealed work in dry locations, serving as branch circuits for outlets, switches, and other loads. It can also be run in air voids of masonry block or tile walls where not wet or damp.

• 100' Length
• SIMpull NM-B (nonmetallic-sheathed) cable
• May be used for both exposed and concealed work in normally dry locations

Product Highlights

Versatile 10 AWG 2-conductor NM-B cable with ground, rated for 600V and 30A, ideal for residential branch circuits.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 28829028
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 600V
• Construction: 10 AWG 2C Solid
• Strands per Conductor: 1
• Number of Grounds: 1
• Nominal Width: 505 mils
• Nominal Height: 217 mils
• Insulation Thickness: 20 mils
• Current Rating: 30A
• Length: 100 ft
• Wire Type: NM-B
• Wire Size: 10 AWG
• Number of Conductors: 2
• Conductor Stranding: Solid
• Diameter Over Conductor: 0.101 inch
• Ground Size: 1x10 AWG
• Jacket Thickness: 25 mils
• Approximate Outer Diameter: 0.505 x 0.218 inch
• Copper Weight (per 1000 ft): 91 lbs
• Approximate Weight (per 1000 ft): 126 lbs
• Conductor Material: Bare Copper per ASTM B3
• Insulation Material: Polyvinyl Chloride (PVC) with Nylon Sheath
• Ground Construction: Solid Soft Drawn Bare Copper with Kraft Paper Wrap
• Binder Material: Kraft Paper
• Jacket Material: Polyvinyl Chloride (PVC) with SIMpull Technology
• Standards: ASTM B3, ASTM B8, UL 719, RoHS-2, Federal Specification A-A-59544, NOM-063-SCFI
• Country of Origin: United States
• Operating Temperature: 90°C
