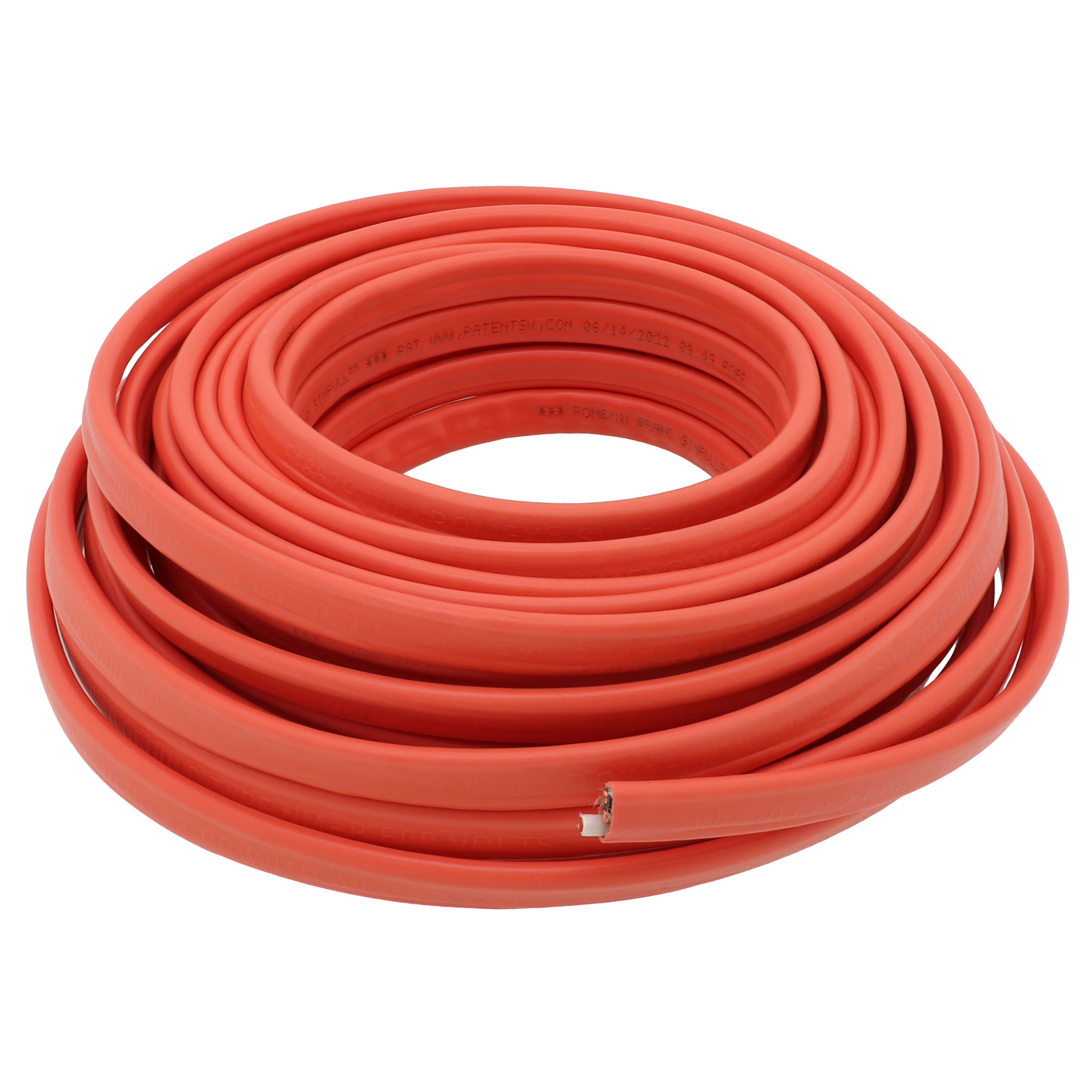

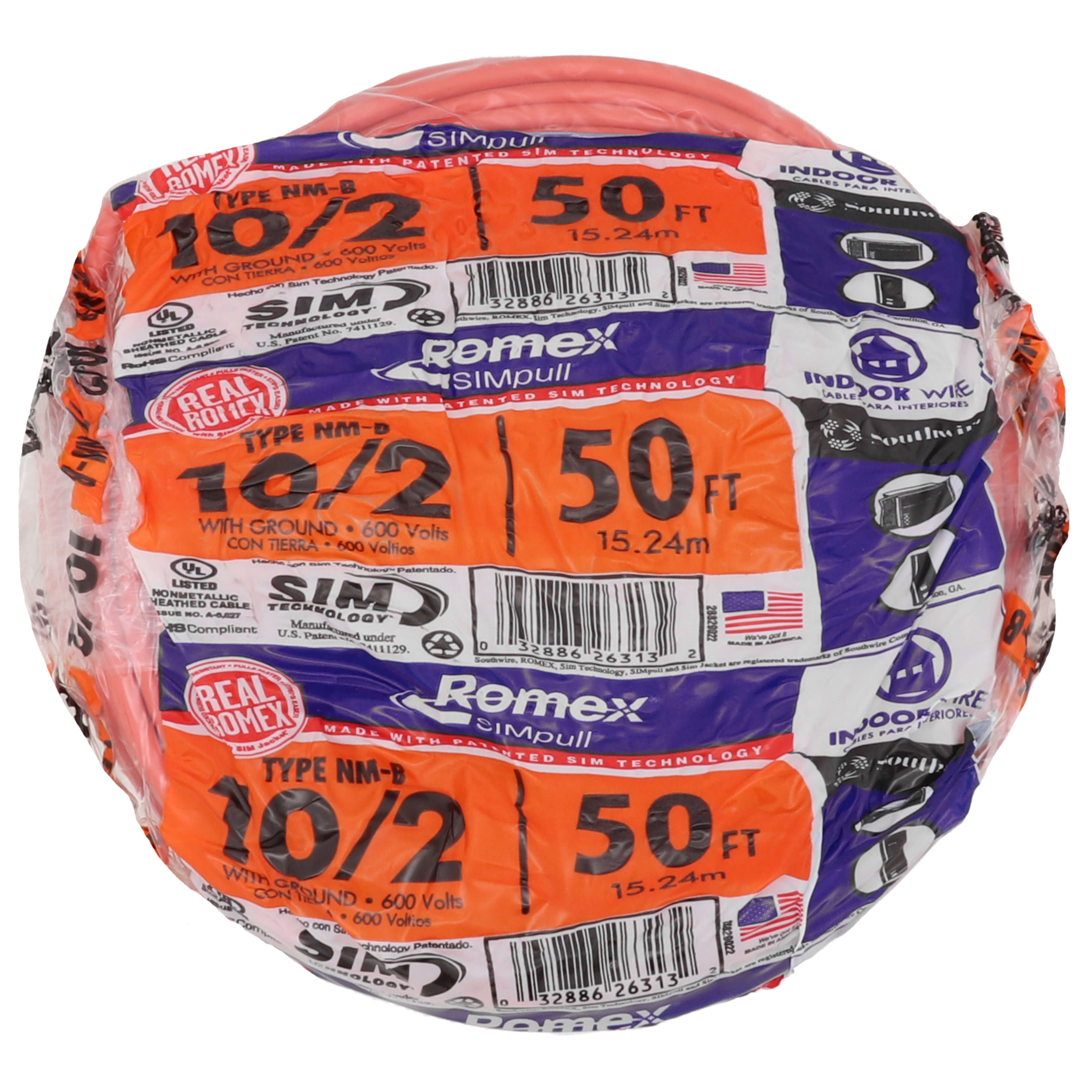

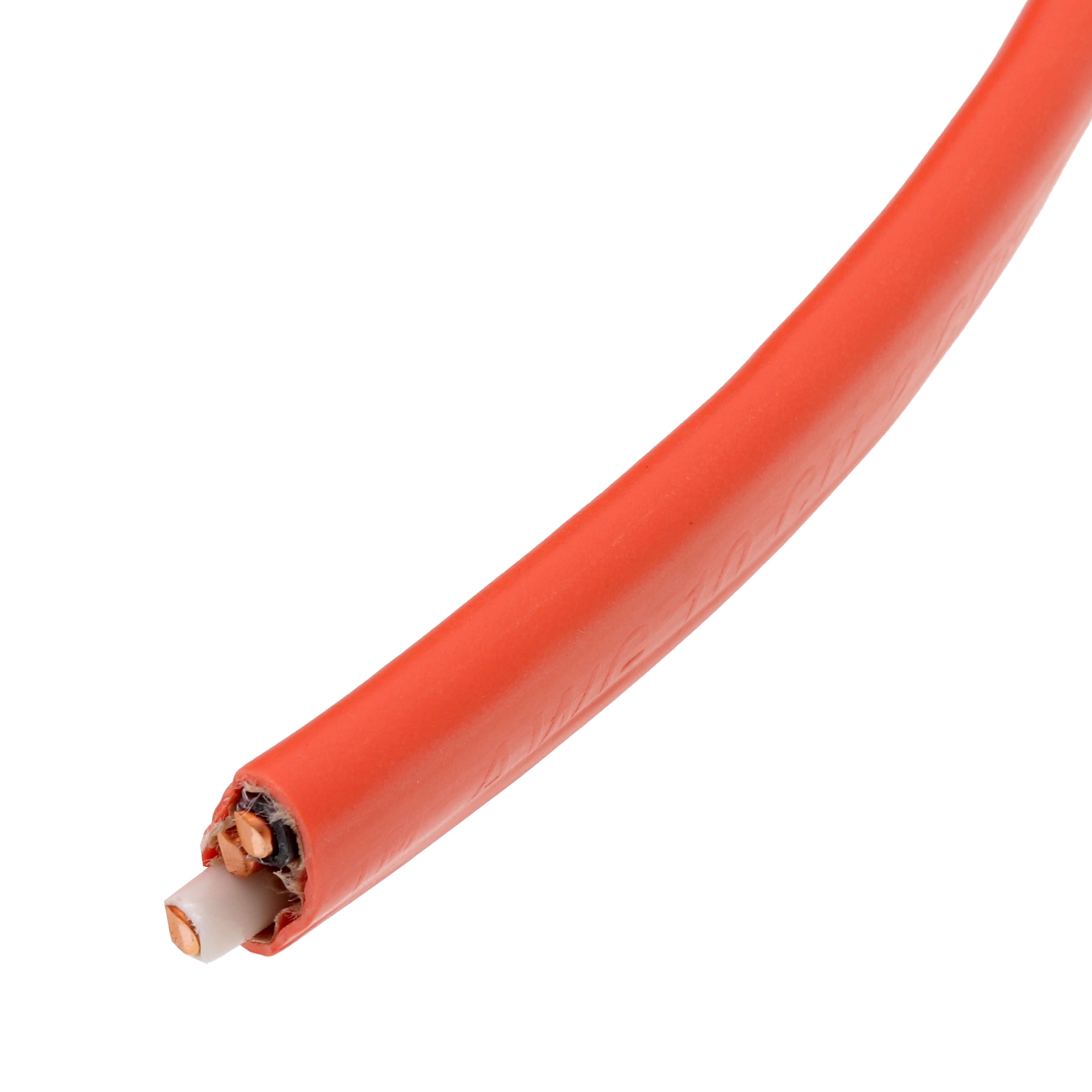

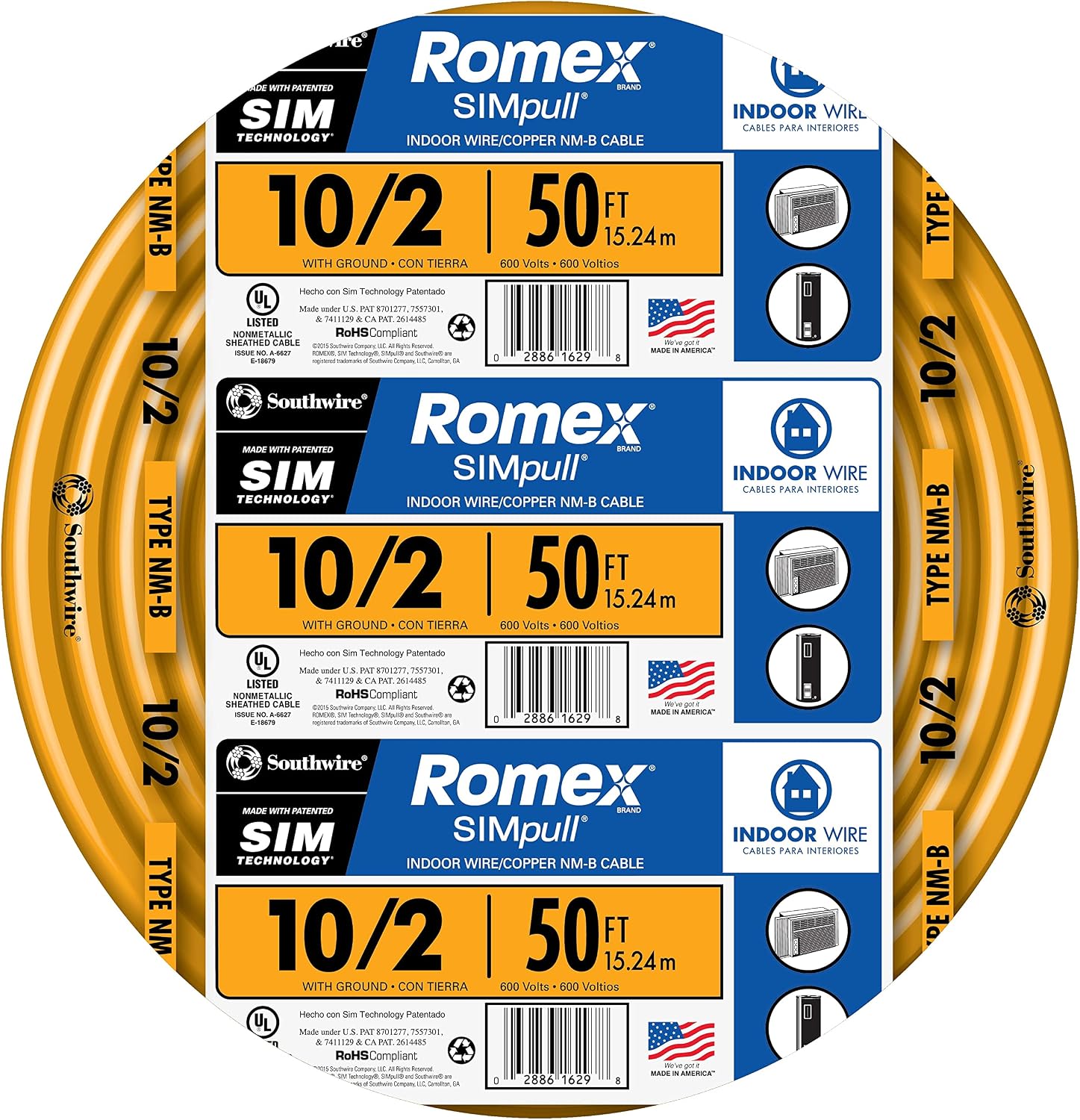

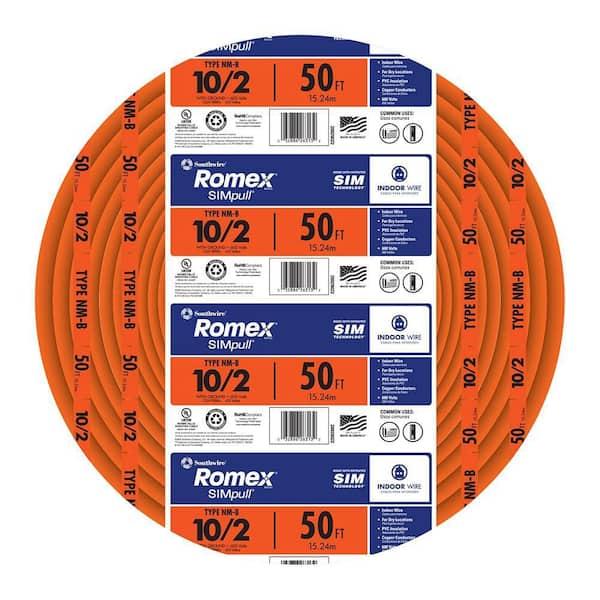

Southwire 28829022 Romex Brand Simpull Solid Indoor 10/2 W/G NMB Cable 600 Volts 50ft Coil

Product Description

The SOUTHWIRE 28829022 Romex Brand SIMpull Solid Indoor 10/2 W/G NMB Cable is a multi-strand electrical cable rated for 600 Volts. This 50ft coil is designed for residential electrical applications, serving as branch circuits for outlets, switches, and other loads. It features SIMpull technology for easier installation and is suitable for exposed and concealed work in dry locations, including air voids of masonry block or tile walls.

• Romex Brand for quality assurance and SIMpull technology for easier installation.
• Designed for solid indoor electrical applications with a 10/2 W/G NMB Cable configuration.
• Rated for 600 Volts and suitable for both exposed and concealed work in dry locations.

Product Highlights

This 50ft coil of SOUTHWIRE 28829022 Romex Brand SIMpull 10/2 W/G NMB Cable is ideal for residential indoor wiring, offering 600V rating and easy installation.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 28829022
• Country of Origin: USA

Technical Specifications

• MPN: 28829022
• Brand: Southwire
• Wire Gauge: 10
• Number of Conductors: 2
• Voltage Rating: 600 Volts
• Length: 50 Feet
• Conductor Material: Copper
• Cable Type: NM-B
• Certifications: UL Listed 719, Federal Specification A-A-59544
• Max Operating Temperature: 194°F (with ampacity limited to that for 140°F conductors)
• Diameter Over Conductor: 0.101 in
• Insulation Thickness: 20 mils
• Ground Wire Size: 1x10 AWG
• Jacket Thickness: 25 mils
• Approximate Outer Diameter: 0.505 x 0.218 in
• Copper Weight: 91 lbs/1000'
• Approximate Weight: 126 lbs/1000'
• Standards: ASTM B3, ASTM B8, UL 719, RoHS-2, Federal Specification A-A-59544, NOM-063-SCFI
• Insulation Material: PVC with Nylon Sheath
• Ground Type: Solid Soft Drawn Bare Copper with Kraft Paper Wrap
• Binder Material: Kraft Paper
• Jacket Material: PVC with SIMpull Technology
• Ampacity: 20 Amps
• Temperature Rating: 90°C (194°F)
• Ground Wire Present: Yes
• Product Line: Romex
