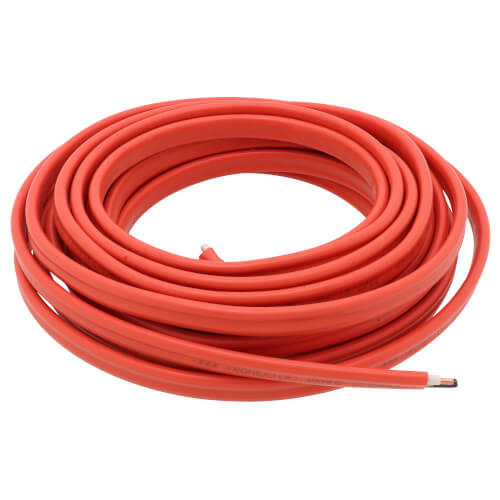

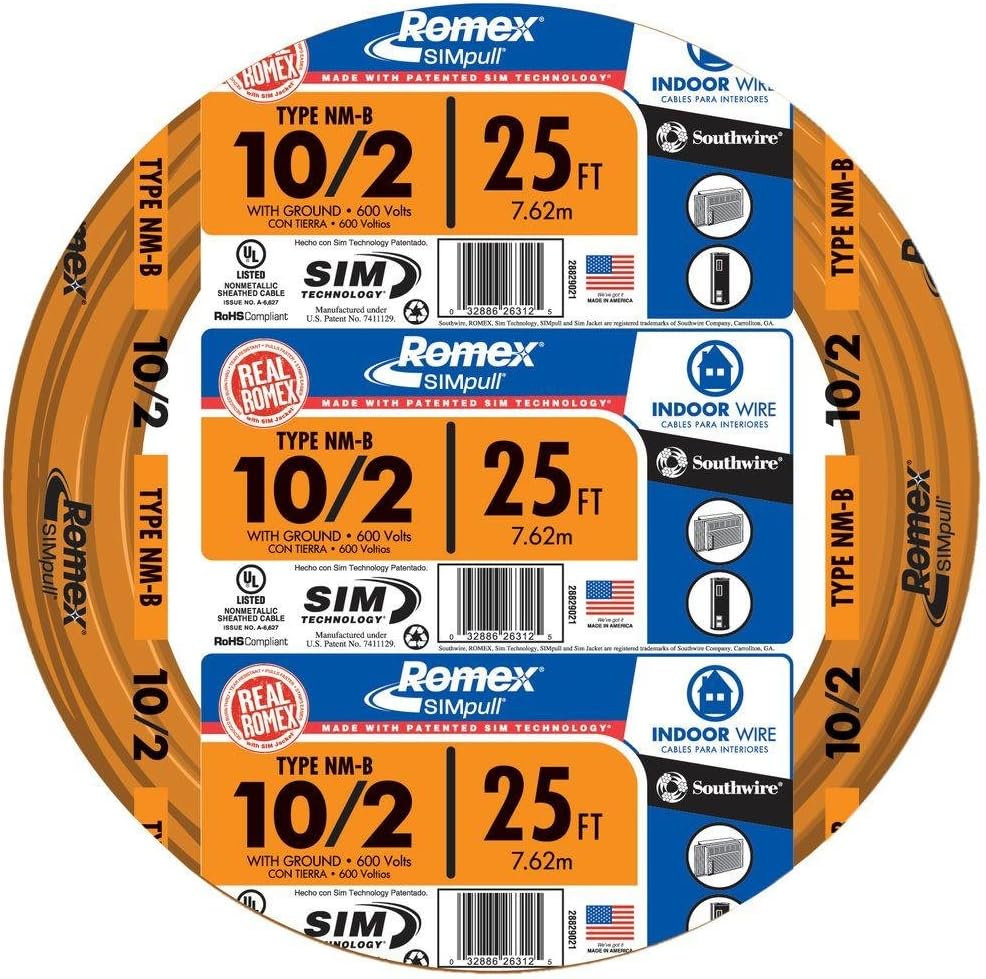

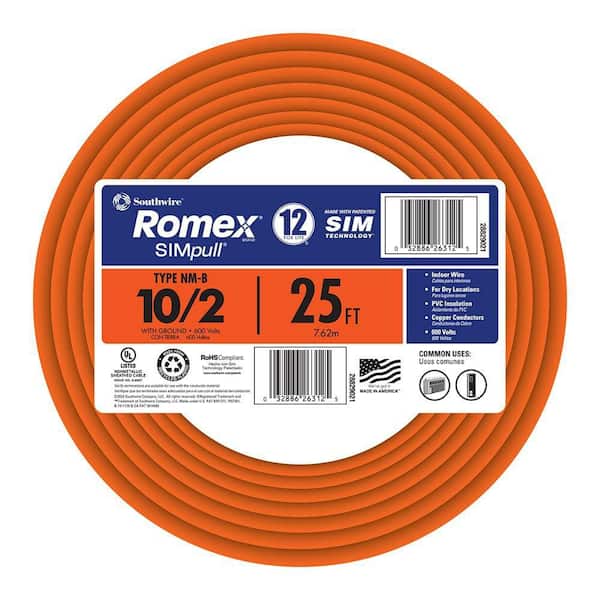

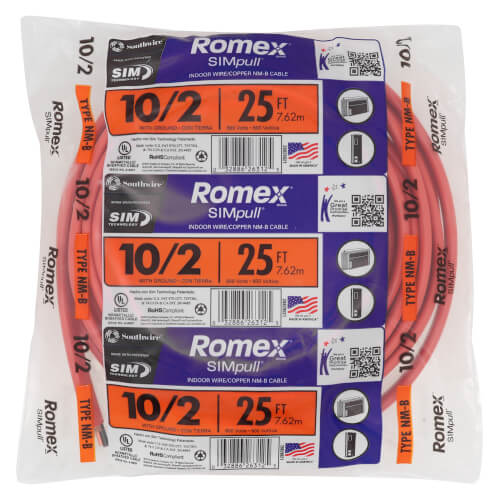

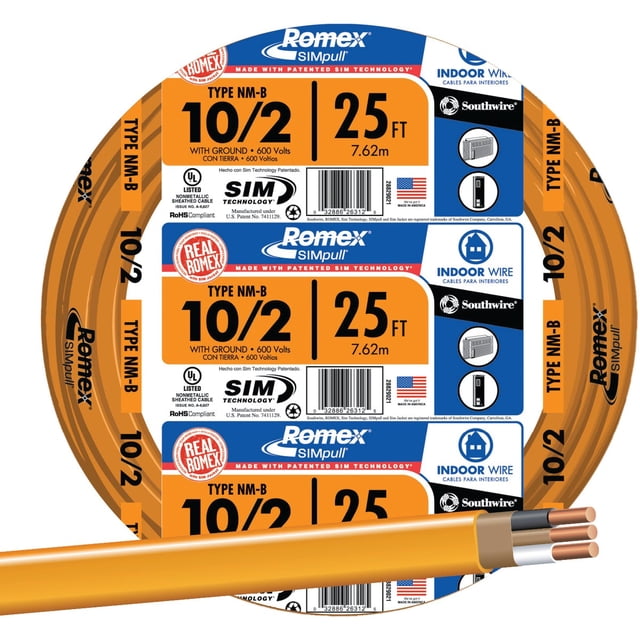

Southwire 28829021 romex brand simpull solid indoor 10/2 w/g nmb cable 600v 25ft coil

Product Description

The SOUTHWIRE 28829021 Romex Brand Simpull Solid Indoor 10/2 W/G NMB Cable is a 10-gauge, 2-conductor electrical wire designed for residential wiring applications. This 600-volt cable features Simpull Technology for easier installation and is suitable for branch circuits for outlets, switches, and other loads in dry locations. It includes a ground wire and is rated for 90°C temperature, ensuring safe and reliable electrical connections.

• Romex Brand Simpull Technology for easier pulling, stripping, and installation.
• 10/2 W/G NMB cable with 600V rating, suitable for residential branch circuits.
• Solid indoor copper conductors, UL Listed 719, designed for dry locations.

Product Highlights

Durable 10-gauge copper wire with Simpull technology for residential indoor electrical installations.

Product Information

Standard Information

• Brand: SOUTHWIRE
• Manufacturer Part Number: 28829021
• Country of Origin: United States

Technical Specifications

• Ampacity: 30A
• Approximate Outer Diameter (cm): 1.28 x 0.55
• Approximate Outer Diameter (in): 0.505 x 0.218
• Approximate Weight (kg/km): 188
• Approximate Weight (lbs/1000ft): 126
• Binder Material: Kraft Paper
• Certifications/Standards: UL Listed 719, Federal Specification A-A-59544, ASTM B3, ASTM B8, RoHS-2, NOM-063-SCFI
• Conductor Color: Black/White
• Conductor Color Code (2-Conductor): Black, White
• Conductor Material: Bare Copper (ASTM B3)
• Conductor Stranding: Solid
• Copper Weight (kg/km): 135
• Copper Weight (lbs/1000ft): 91
• Diameter Over Conductor (cm): 0.26
• Diameter Over Conductor (in): 0.101
• Ground Conductor Construction: Solid Soft Drawn Bare Copper with Kraft Paper Wrap
• Ground Wire Gauge: 10 AWG
• Insulation Material: PVC with Nylon Sheath
• Insulation Thickness (mm): 0.51
• Insulation Thickness (mils): 20
• Jacket Color: Orange
• Jacket Material: PVC (SIMpull Technology)
• Jacket Thickness (mm): 0.64
• Jacket Thickness (mils): 25
• Length: 25 Feet
• MPN: 28829021
• Manufacturer: Southwire Company Llc
• Number of Conductors: 2 with Ground
• Packaging: 25 FT Coil
• Pattern: Southwire
• Style: 22070T
• Temperature Rating: 90°C
• Voltage Rating: 600V
• Wire Gauge: 10 AWG
• Wire Type: NM-B
